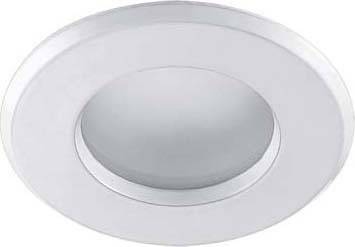

Brumberg 36149250 36149250 Flush mount light High-voltage halogen lamp GU10 50 W Aluminium
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires HV built-in lamp GU10 max. 50W/alumatt 36149250
- Power= 50 W White
Technical specifications
- Operating device: Not required
- Dimming depends on the operating device: Yes
- With bulb: no.
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Illuminant: HV halogen lamp
- Light emission: Direct
- Light distribution: Symmetrical
- With bulb: no.
- Voltage type: AC
- Cover material: opal glass
- Product type
Flush mount light
- Operating voltage
230 V
- No. of bulbs
1
GU10
- Bulb type
High-voltage halogen lamp
- Rating per bulb
50 W
50 W
- Colour
White
- Recess diameter
68 mm
- Recess depth
125 mm
- Outside Ø
80 mm
IP65
- Protection class
II
- Factory colour
Aluminium
n.rel.
- Light bulb included
No
- Height
5 mm
Documents & Downloads
Datasheet
Datasheet 2298020 Brumberg 36149250 36149250 Flush mount light High-voltage halogen lamp GU10 50 W Aluminium
User & Safety Instructions
User & Safety Instructions 2298020 Brumberg 36149250 36149250 Flush mount light High-voltage halogen lamp GU10 50 W Aluminium
Description
High-voltage mounting downlight GU10 IP65, aluminum, round. Designed in a compact design for quick mounting without tools for ceiling installation. Incl. High-voltage clamp for standard strain relief. Socket: GU10, Type of mounting: Installation, Mounting location: Ceiling mounting, Material: Cast / glass, Protection type: According to DIN EN 60529: IP65*, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: Max. 50W, Number of bulbs / sockets: 1.0 Stk, Adjustable: Not adjustable, Type of dimming: Other,
This text is machine translated.
This text is machine translated.
