Image similar

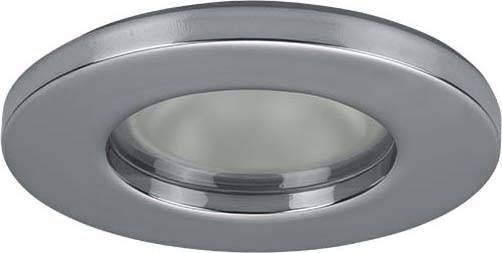

Brumberg 38149023 38149023 LED recessed light LED (monochrome) w/o 6 W Chrome
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED Downlight 230V 3000K chr 38149023
- Power= 6 W Total luminous flux= 510 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 540 lm
- Operating device: LED operating device current-controlled
- Screen workstation suitable according to EN 12464-1: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for clamp mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Material of the cover: Glass structured
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
540 lm
- Total luminous flux
510 lm
3000 K
- Colour
White
- Protection screen
Textured
- Radiation angle
40°
- Light features
Incl. ballast
- Recess diameter
68 mm
- Recess depth
90 mm
- Outside Ø
80 mm
IP65
- Protection class
II
- Factory colour
Chrome
- Material
Die-cast
n.rel.
No
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
5 mm
Documents & Downloads
Datasheet
Datasheet 2291136 Brumberg 38149023 38149023 LED recessed light LED (monochrome) w/o 6 W Chrome
User & Safety Instructions
User & Safety Instructions 2291136 Brumberg 38149023 38149023 LED recessed light LED (monochrome) w/o 6 W Chrome
Description
LED recessed light set IP65, switchable, chrome. Designed in a compact design for quick mounting without tools for ceiling installation. Set incl. converter for 230 V mains voltage, switchable, dimensions of converter: L 68 x W 35 x H 21 mm. Socket: None, Type of mounting: Panel mounting, Mounting location: Ceiling mounting, Material: Cast / aluminum / glass, Protection type: According to DIN EN 60529: IP65*, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 6W, Number of bulbs / sockets: 1.0 pcs, Light current: 510lm, Color temperature: 3000K, Light color: White, Angle of radiation: 38°, Adjustable: Not adjustable, with operating device, type of dimming: Switchable,
This text is machine translated.
This text is machine translated.
