Brumberg 38267073 38267073 LED recessed light LED (monochrome) w/o 6 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-Downlight 2700K 38267073
- Power= 6 W Total luminous flux= 540 lm White
Technical specifications
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Colour temperature: 2700 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Cover material: Transparent glass
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
540 lm
- Total luminous flux
540 lm
- Colour
White
- Type
Square
- Protection screen
Clear
- Radiation angle
40°
- Light features
Incl. ballast
- Recess diameter
68 mm
- Recess depth
58 mm
- Protection class
II
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W) 82 mm x 82 mm
No
- Light bulb included
Yes
- Width
82 mm
- Length
82 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2291696 Brumberg 38267073 38267073 LED recessed light LED (monochrome) w/o 6 W White
User & Safety Instructions
User & Safety Instructions 2291696 Brumberg 38267073 38267073 LED recessed light LED (monochrome) w/o 6 W White
Description

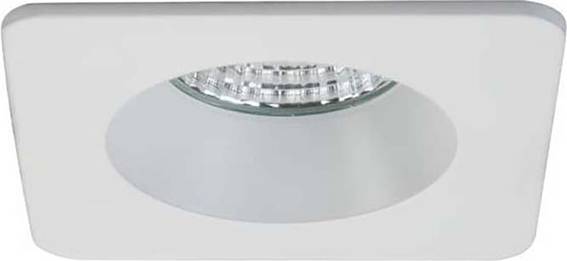

LED recessed light set IP54, switchable, white, angular. Designed in a compact design for quick mounting without tools for ceiling installation. Set incl. converter for 230 V mains voltage, switchable, dimensions of converter: L 68 x W 35 x H 21 mm. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / glass, Protection type: According to DIN EN 60529: IP54*, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 6W, Number of bulbs / sockets: 1.0 pcs, Light current: 540lm, Color temperature: 2700K, Light color: White, Radiation angle: 38°, Adjustable: Not adjustable, with operating device, Type of dimming:
This text is machine translated.
This text is machine translated.
