Brumberg 39266083 39266083 LED recessed/surface-mount light LED (monochrome) Built-in LED 6 W Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

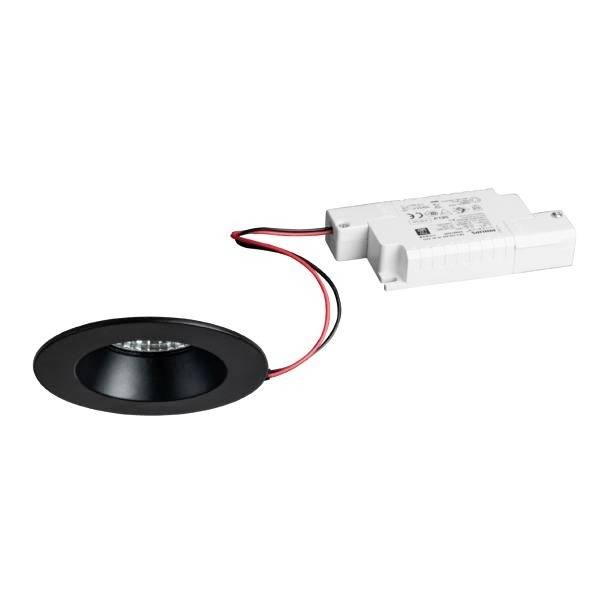

Brumberg LED recessed downlight 39266083
- Power= 6 W Total luminous flux= 540 lm Colour temperature= 2700 K Warm white
Technical specifications
- Product type
LED recessed/surface-mount light
- Operating voltage
230 V
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
540 lm
- Total luminous flux
540 lm
2700 K
- Colour
Warm white
- Type
Circular
- Protection screen
Clear
- Radiation angle
40°
- Light features
Dimmable

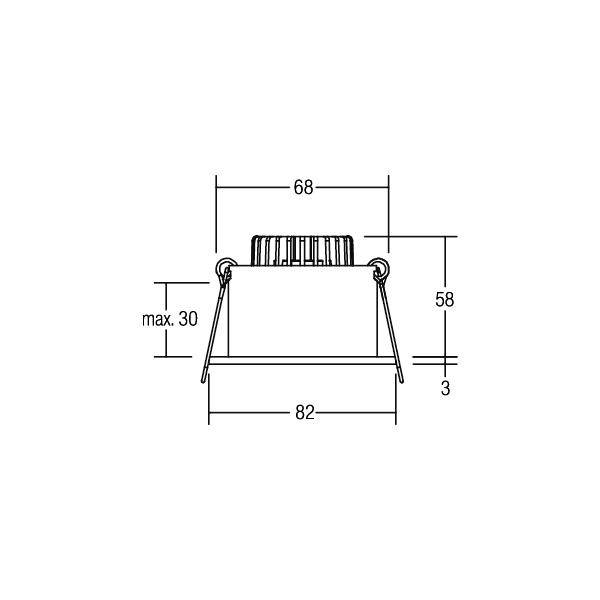

- Recess diameter
68 mm
- Recess depth
58 mm
- Outside Ø
82 mm
- Protection class
II
- Factory colour
Black
- Material
Aluminium
Glass
n.rel.
- Dim
(Ø x H) 82 mm x 3 mm
Yes
- Light bulb included
Yes
- Colour temperature range
2700 K
- Height
3 mm
- (Ø)
82 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2747720 Brumberg 39266083 39266083 LED recessed/surface-mount light LED (monochrome) Built-in LED 6 W Black
User & Safety Instructions
User & Safety Instructions 2747720 Brumberg 39266083 39266083 LED recessed/surface-mount light LED (monochrome) Built-in LED 6 W Black
Description
LED recessed downlight set, IP54, dimmable phase, black, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Set inclusive Converter for 230 V mains voltage, phase section dimmable, dimensions of converter: L 110 x B 50 x H 19 mm Mounting type: Installation, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, enclosure rating: Room side: According to DIN EN 60529: IP54*, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lights / sockets: 1.0 pcs, luminous flux: 540 lm, color temperature: 2,700 K, light color: White, angle of radiation: 38°, Adjustable: Not adjustable, with operating device: Yes, type of dimming: Phase section.
This text is machine translated.
This text is machine translated.
