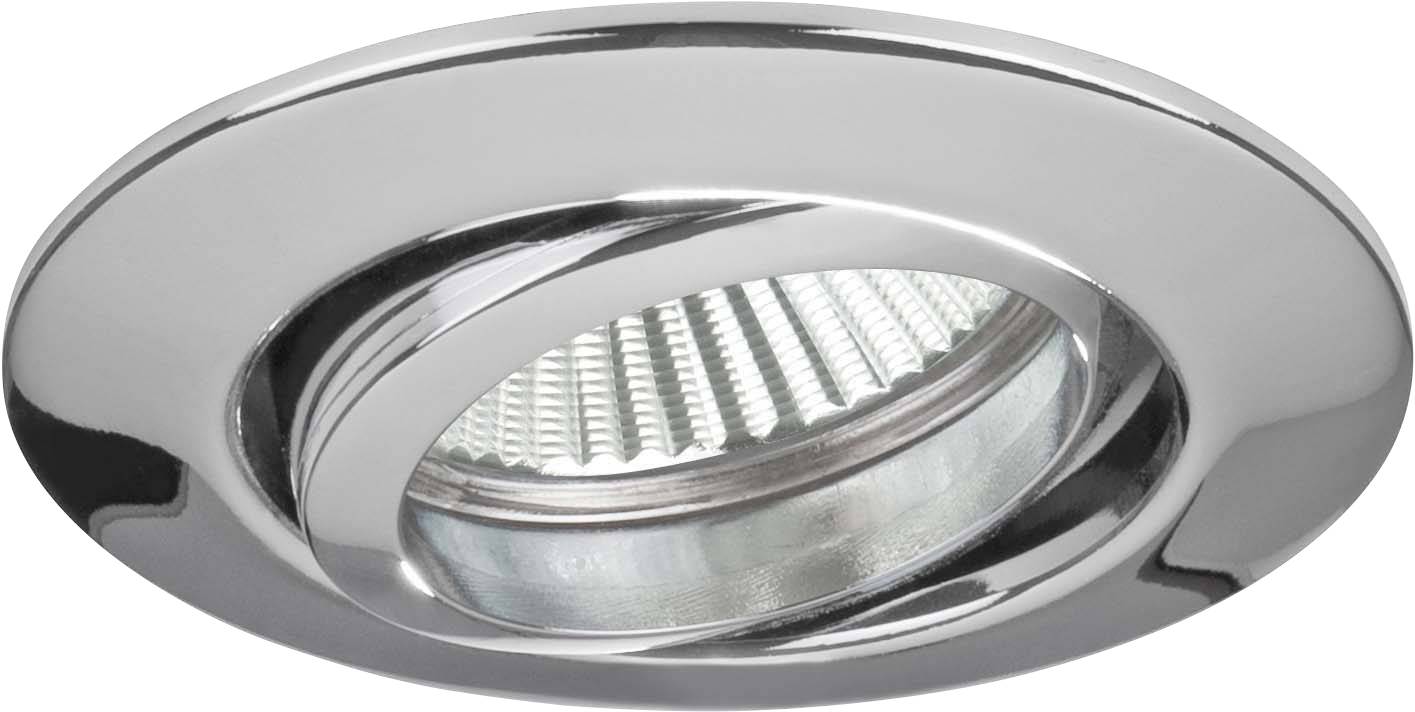

Brumberg 39373073 39373073 LED recessed light LED (monochrome) w/o 6 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Lights LED Recessed Lighting d2w 3000K White dimm. 39373073
- Power= 6 W Total luminous flux= 460 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 460 lm
- Operating device: LED operating device current-controlled
- Dimming Phase section: Yes
- Color temperature 1800..3000 K.
- Color rendering index CRI: 80-89
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
460 lm
- Total luminous flux
460 lm
- Colour
White
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
50 mm
- Outside Ø
82 mm
IP20
- Protection class
II
- Factory colour
White
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
1800 K
- Colour temperature range
1800 - 3000 K
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2298073 Brumberg 39373073 39373073 LED recessed light LED (monochrome) w/o 6 W White
User & Safety Instructions
User & Safety Instructions 2298073 Brumberg 39373073 39373073 LED recessed light LED (monochrome) w/o 6 W White
Description
LED installation spotlight set BB13, dim2warm, dimmable, white. Designed in a compact design for quick mounting without tools for ceiling installation. When the light is dimmed, the color temperature decreases. Set incl. converter for 230 V mains voltage, phase section, dimensions of converter: L 110 x W 50 x H 19 mm. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Cast / aluminum / glass, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 6W, Number of bulbs / sockets: 1.0 pcs, Light current: 460lm, Color temperature: 3000 to 1800K, Angle of radiation: 38°, Adjustable, with operating device, Type of dimming: Phase section,
