Image similar

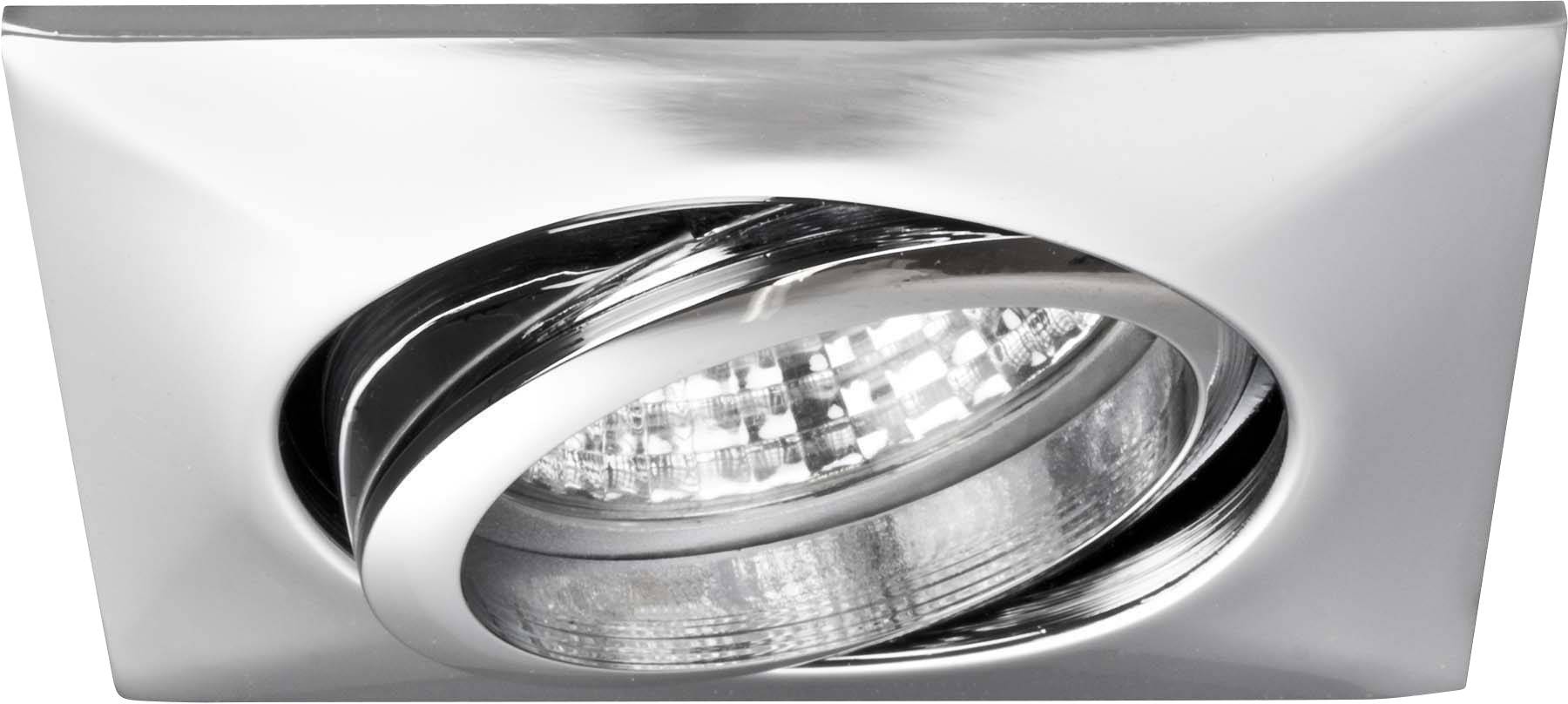

Brumberg 39374023 39374023 LED recessed light LED (monochrome) 6 W Chrome
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-Built-in Spotlight d2w 3000K chrome dimm. 39374023
- Power= 6 W Total luminous flux= 460 lm White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 460 lm
- Operating device: LED operating device current-controlled
- Dimming Phase section: Yes
- Color temperature 1800..3000 K.
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for clamp mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
6 W
6 W
- Total luminous flux
460 lm
- Colour
White
- Radiation angle
40°
- Light features
Swivelling
- Recess diameter
68 mm
- Recess depth
50 mm
IP20
- Protection class
II
- Factory colour
Chrome
n.rel.
- Dim
(L x W) 82 mm x 82 mm
- Light bulb included
Yes
- Width
82 mm
- Length
82 mm
Documents & Downloads
Datasheet
Datasheet 2291665 Brumberg 39374023 39374023 LED recessed light LED (monochrome) 6 W Chrome
User & Safety Instructions
User & Safety Instructions 2291665 Brumberg 39374023 39374023 LED recessed light LED (monochrome) 6 W Chrome
Description
LED installation spotlight set BB14, dim2warm, dimmable, chrome. Designed in a compact design for quick mounting without tools for ceiling installation. When the light is dimmed, the color temperature decreases. Set incl. converter for 230 V mains voltage, phase section, dimensions of converter: L 110 x W 50 x H 19 mm. Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Cast / aluminum / glass, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 6W, Number of bulbs / sockets: 1.0 pcs, Light current: 460lm, Color temperature: 3000 to 1800K, Angle of radiation: 38°, Adjustable, with operating device, Type of dimming: Phase section,
