Brumberg 39399173 39399173 LED recessed/surface-mount light LED (monochrome) 7 W White

A square recessed spotlight with LED lamp and external driver, connected by red and black cables. Ideal for ceiling installations.

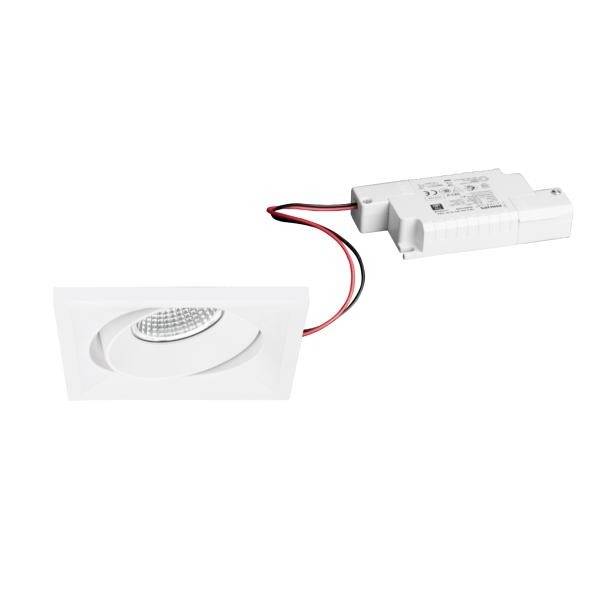

LED ceiling recessed light with square frame and external transformer, suitable for modern interior lighting.

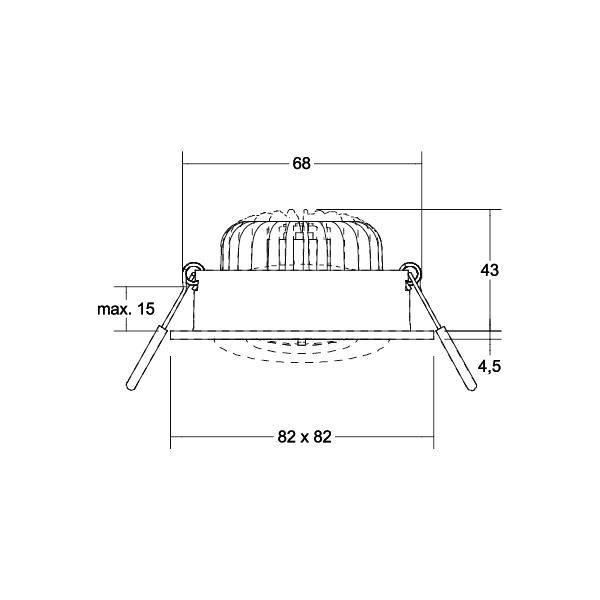

Technical drawing of a square LED recessed ceiling spotlight: dimensions 68mm depth, 82mm width, 82mm length, maximum installation depth 15mm.

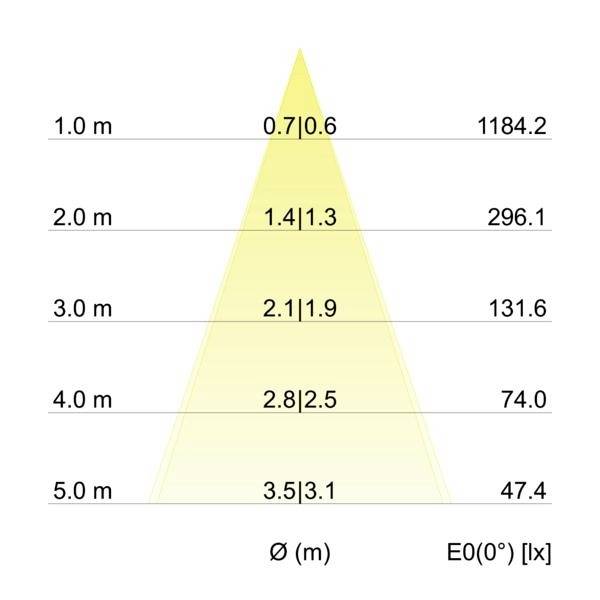

Light diagram shows illuminance in lux along vertical section: 1-5 m height with values ranging from 47.4 to 1,184.2 lux.

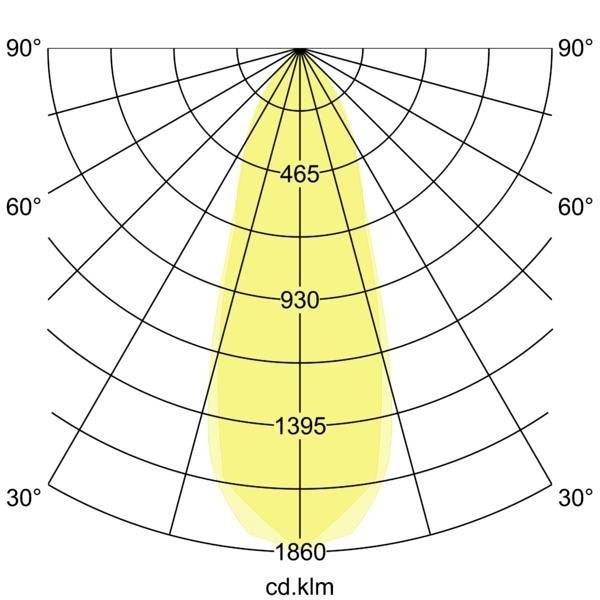

Diagram shows light distribution in a polar plot. Values: 465, 930, 1395, 1860 cd/klm along 30°-90° angle.
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Brumberg LED recessed spotlight 3000K 39399173

  • Power= 7 W Total luminous flux= 680 lm Colour temperature= 3000 K Warm white

Technical specifications

Product type

LED recessed/surface-mount light

Operating voltage

230 V

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

7 W

7 W

680 lm

Total luminous flux

680 lm

3000 K

Colour

Warm white

Type

Square

Protection screen

Clear

Radiation angle

40°

Light features

Swivelling

Ceiling mount option

Recess diameter

68 mm

Recess depth

43 mm

External length

82 mm

External width

82 mm

IP20

Protection class

II

Factory colour

White

Material

Aluminium

Plastic

n.rel.

Dim

(W x H) 82 mm x 4.5 mm

Yes

Light bulb included

Yes

Colour temperature range

3000 K

Width

82 mm

Height

4.5 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2748327 Brumberg 39399173 39399173 LED recessed/surface-mount light LED (monochrome) 7 W White

Description

LED spotlight set, phase section dimmable, structural white, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Set inclusive Converter for 230 V mains voltage, phase section dimmable, dimensions of converter: L 110 x B 50 x H 19 mm Mounting type: Installation, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, enclosure rating: Room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 7W, number of lights / sockets: 1.0 pcs, light current: 680 lm, color temperature: 3,000 K, angle of radiation: 40°, adjustable: Tilt, With operating device: Yes, dimmable: Yes, type of dimming: Phase section.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
