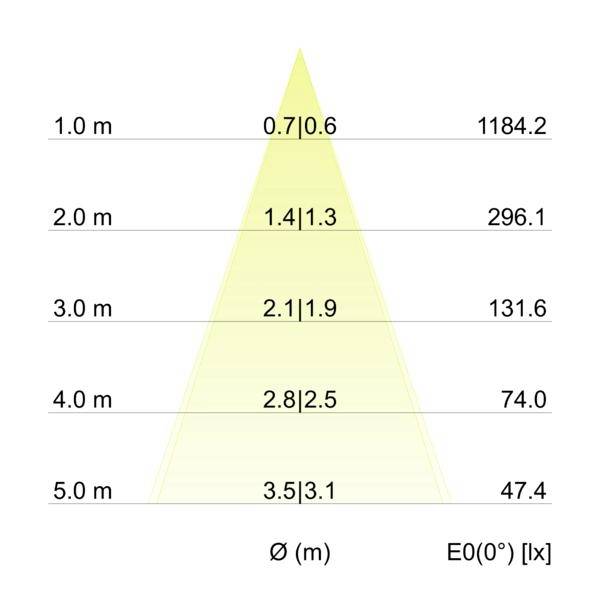

![Light distribution chart showing beam diameter Ø (m) and illuminance E0(0°) [lx] at 1-5 m: values drop from 1184.2 lx to 47.4 lx as distance increases.<br>](https://asset.conrad.com/media10/isa/160267/c1/-/en/003832076PI02T1789394464/image.jpg?x=400&y=400&format=jpg&ex=400&ey=400&align=center)
1/5
Brumberg 39465173S3 LED recessed light LED (monochrome) 18 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 18 W Total luminous flux= 1890 lm Colour temperature= 3000 K White
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V AC
- No. of bulbs
3
- Bulb type
LED (monochrome)
- Rating per bulb
18 W
18 W
- Total luminous flux
1890 lm
3000 K
- Colour
White
- Radiation angle
40°
- Light features
Recess mount option
Ceiling mount option
Swivelling
Incl. ballast
Dimmable
Direct light emission
- Recess diameter
68 mm
- Recess depth
38 mm
- Protection class
II
- Factory colour
White
- Material
Aluminium
n.rel.
- Dim
(L x W x H) 82 x 82 x 4 mm
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
82 mm
- Height
4 mm
- Length
82 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3832076 Brumberg 39465173S3 LED recessed light LED (monochrome) 18 W White
User & Safety Instructions
User & Safety Instructions 3832076 Brumberg 39465173S3 LED recessed light LED (monochrome) 18 W White
User & Safety Instructions 3832076 Brumberg 39465173S3 LED recessed light LED (monochrome) 18 W White
Description

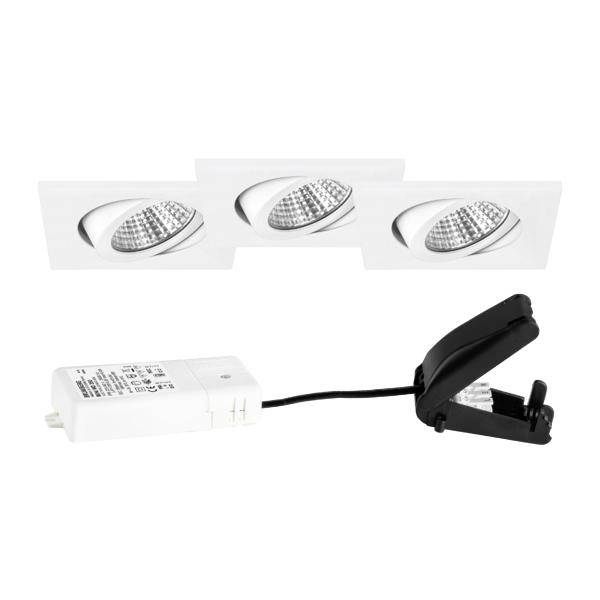

LED spotlight set comprising of three lamps, a converter phase angle dimmable, with connection box and three connecting cables 2,000 mm, white structure, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, enclosure rating: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 18 3,000 W, number of lights / sockets: 38 piece, light current: 1,890 lm, color temperature: White, radiation angle: 3°, Adjustability: swiveling, With operating device: yes, dimming: yes, type of dimming: phase section.
This text is machine translated.
This text is machine translated.
