Brumberg 39465183S3 LED recessed light LED (monochrome) 18 W Black

Three black recessed LED downlights with a white driver and black connector clip, shown as a lighting kit on a white background.

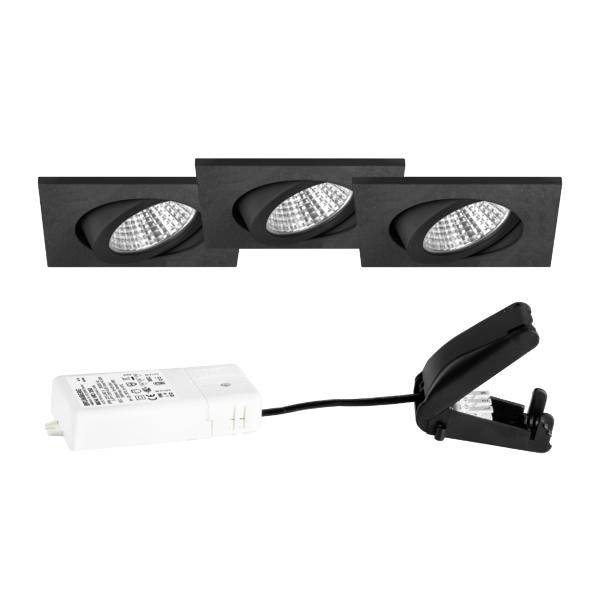

Three black recessed LED downlights with a white driver and black spring clip mounting hardware on a white background.

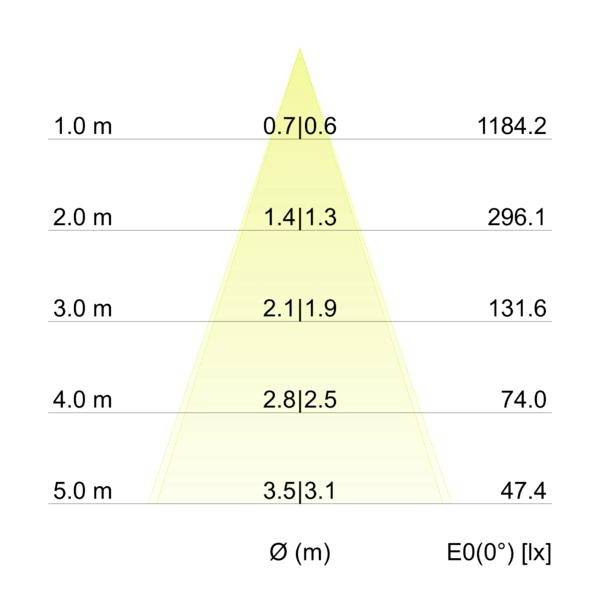

Light distribution chart for a lamp showing beam diameter by distance: 1.0 m 0.7|0.6, 2.0 m 1.4|1.3, 3.0 m 2.1|1.9, 4.0 m 2.8|2.5, 5.0 m 3.5|3.1; E0(0°) lux decreases from 1184.2 to 47.4.
Polar light distribution chart showing a narrow, symmetric yellow beam centered vertically, with intensity labeled 465, 930, 1395, and 1860 cd.klm.

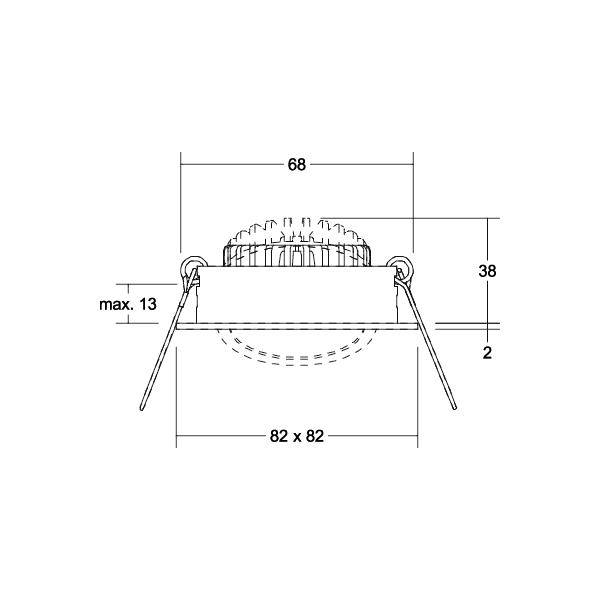

Technical line drawing of a recessed light fixture showing dimensions: 68 wide, 38 high, 82 x 82 cutout, max 13, and 2 depth.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

  • Power= 18 W Total luminous flux= 1890 lm Colour temperature= 3000 K White

Technical specifications

Product type

LED recessed light

Operating voltage

230 V AC

No. of bulbs

3

Bulb type

LED (monochrome)

Rating per bulb

18 W

18 W

Total luminous flux

1890 lm

3000 K

Colour

White

Radiation angle

40°

Light features

Recess mount option

Ceiling mount option

Swivelling

Incl. ballast

Dimmable

Direct light emission

Recess diameter

68 mm

Recess depth

38 mm

Protection class

II

Factory colour

Black

Material

Aluminium

n.rel.

Dim

(L x W x H) 82 x 82 x 4 mm

Yes

Light bulb included

Yes

Colour temperature range

3000 K

Width

82 mm

Height

4 mm

Length

82 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3832077 Brumberg 39465183S3 LED recessed light LED (monochrome) 18 W Black

User & Safety Instructions

User & Safety Instructions 3832077 Brumberg 39465183S3 LED recessed light LED (monochrome) 18 W Black

User & Safety Instructions 3832077 Brumberg 39465183S3 LED recessed light LED (monochrome) 18 W Black

Description

LED spotlight set comprising of three lamps, a converter phase angle dimmable, with connection box and three connecting cables 2,000 mm, black structure, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / polycarbonate, enclosure rating: On the room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 18 3,000 W, number of lights / sockets: 38 piece, light current: 1,890 lm, color temperature: White, radiation angle: 3°, Adjustability: swiveling, With operating device: yes, dimming: yes, type of dimming: phase section.

This text is machine translated.

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
