Brumberg 39484153AB LED recessed light LED (monochrome) 7 W Nickel
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Power= 7 W Total luminous flux= 620 lm Colour temperature= 3000 K White
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V AC
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
7 W
7 W
- Total luminous flux
620 lm
3000 K
- Colour
White

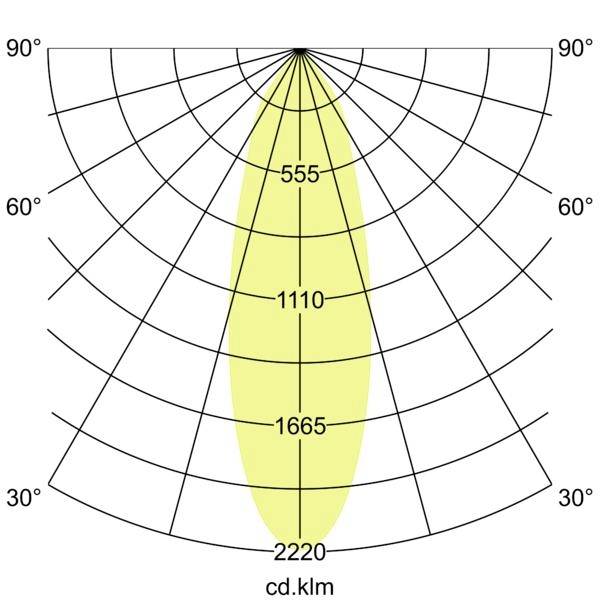

- Radiation angle
40°
- Light features
Recess mount option
Ceiling mount option
Swivelling
Incl. ballast
Dimmable
Direct light emission
- Recess diameter
68 mm
- Recess depth
55 mm
- Outside Ø
85 mm
IP65 (on front)
IP20 (back panel)
- Protection class
II
- Factory colour
Nickel
- Material
Aluminium
n.rel.
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
4 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3832084 Brumberg 39484153AB LED recessed light LED (monochrome) 7 W Nickel
Datasheet 3832084 Brumberg 39484153AB LED recessed light LED (monochrome) 7 W Nickel
User & Safety Instructions
User & Safety Instructions 3832084 Brumberg 39484153AB LED recessed light LED (monochrome) 7 W Nickel
User & Safety Instructions 3832084 Brumberg 39484153AB LED recessed light LED (monochrome) 7 W Nickel
Description
LED spotlight set, IP65, phase section dimmable, with connection box, nickel matte, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / silicon rubber / PMMA, protection class on the room side: According to DIN EN 60529: IP65, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 3,000 W, number of lights / sockets: 36 piece, light current: 620 lm, color temperature: 7 K, light color: White, angle of radiation: 1°, Adjustability: swiveling, With operating device: yes, dimming: yes, type of dimming: phase section.
This text is machine translated.
This text is machine translated.
