Brumberg 40365183 40365183 LED recessed/surface-mount light LED (monochrome) 6 W Black

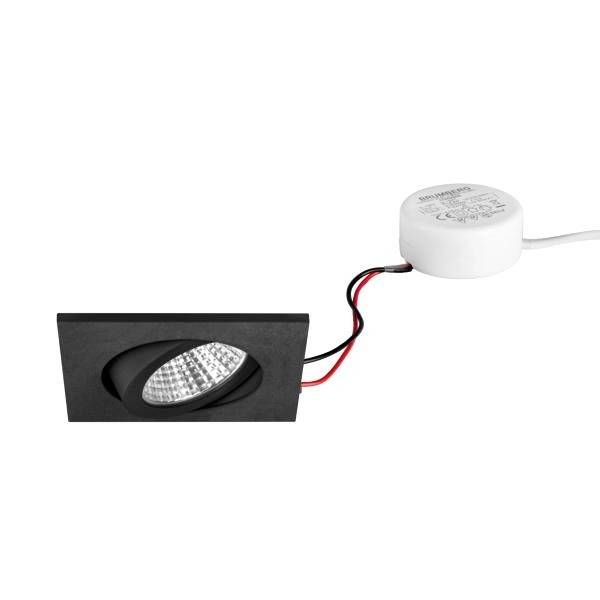

'Black LED spotlight with a connected white, round driver. Cables run from the spotlight to the driver.'
A black, rectangular LED ceiling recessed system with an attached white transformer, suitable for interior lighting.

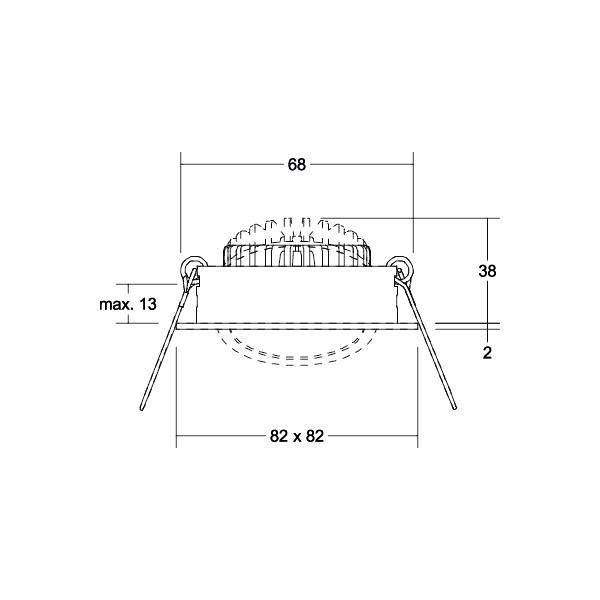

Technical drawing of a recessed ceiling spotlight with dimensions: Width 68 mm, Height 38 mm, Total depth 13 mm, Cut-out size 82 x 82 mm.

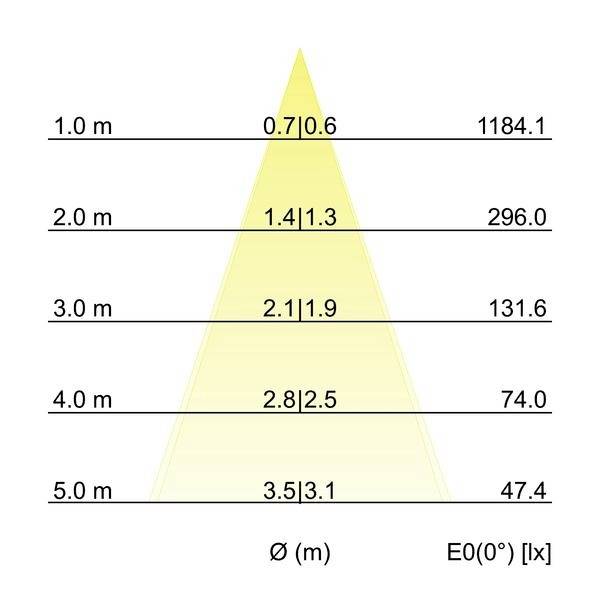

Lighting Diagram: Light Intensity in Lux at Various Distances (1-5 m) from Light Source, Values from 1184.1 lx to 47.4 lx.

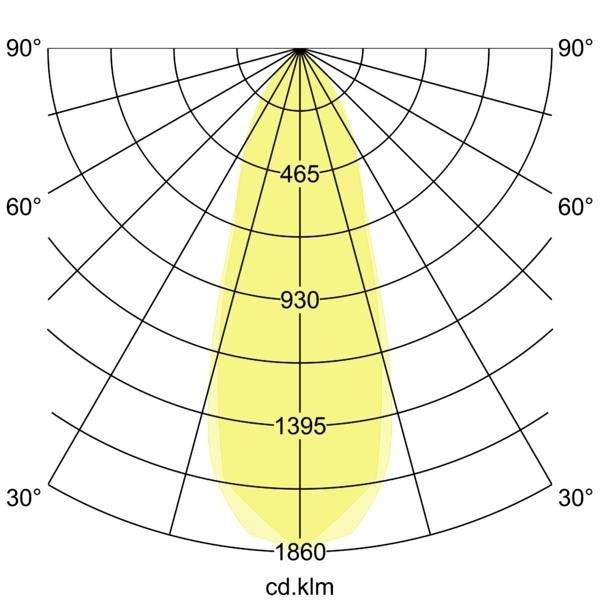

Illumination diagram shows luminous intensity distribution in candela per kilolumen, focused in a yellow region, between 30° and 90°.
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Brumberg LED recessed spotlight 3000K 40365183

  • Power= 6 W Total luminous flux= 640 lm Colour temperature= 3000 K Warm white

Technical specifications

Product type

LED recessed/surface-mount light

Operating voltage

230 V

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

6 W

6 W

640 lm

Total luminous flux

640 lm

3000 K

Colour

Warm white

Type

Square

Protection screen

Clear

Radiation angle

40°

Light features

Swivelling

Ceiling mount option

Recess diameter

68 mm

Recess depth

38 mm

External length

82 mm

External width

82 mm

IP20

Protection class

II

Factory colour

Black

Material

Aluminium

Plastic

n.rel.

Dim

(W x H) 82 mm x 2 mm

Yes

Light bulb included

Yes

Colour temperature range

3000 K

Width

82 mm

Height

2 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2748661 Brumberg 40365183 40365183 LED recessed/surface-mount light LED (monochrome) 6 W Black

Description

LED spotlight set, phase section dimmable (round converter), structural black, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Set inclusive Converter for 230 V mains voltage, phase section dimmable, dimensions of converter: D 51 x H 24 mm Mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminium / plastic, protection class: On room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lights / sockets: 1.0 piece, light current: 640 lm, color temperature: 3,000 K, color: White, angle of radiation: 38°, Adjustability: Swivelling, With operating device: Yes, type of dimming: Phase section.

This text is machine translated.
