Brumberg 41465173 41465173 LED recessed/surface-mount light LED (monochrome) 6 W White

Recessed light fitting with a square frame, adjustable LED spotlight, and two integrated drivers, suitable for ceiling installation.

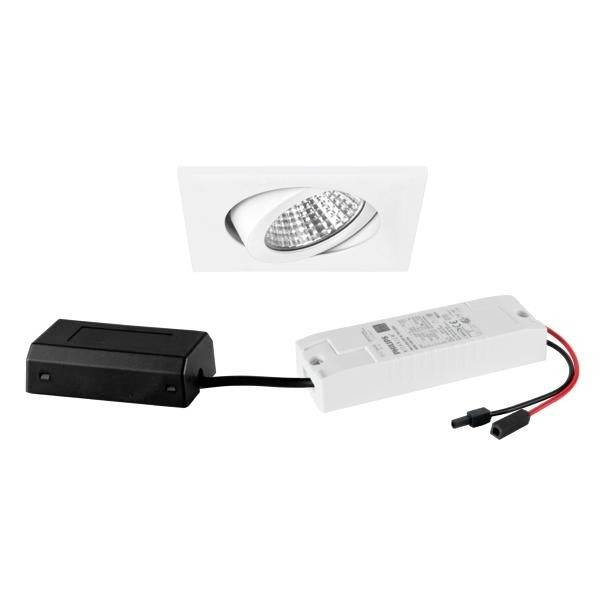

Recessed downlight with housing and driver, white housing, rectangular shape, suitable for ceiling mounting in interior spaces.

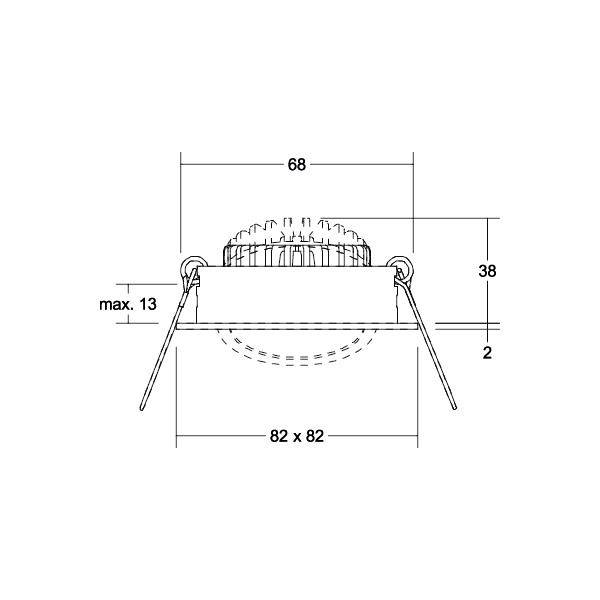

Technical drawing of a square recessed spotlight with dimensions: Width 68, Height 38, Maximum overall height 13, Width with mounting bracket 82 x 82 mm.

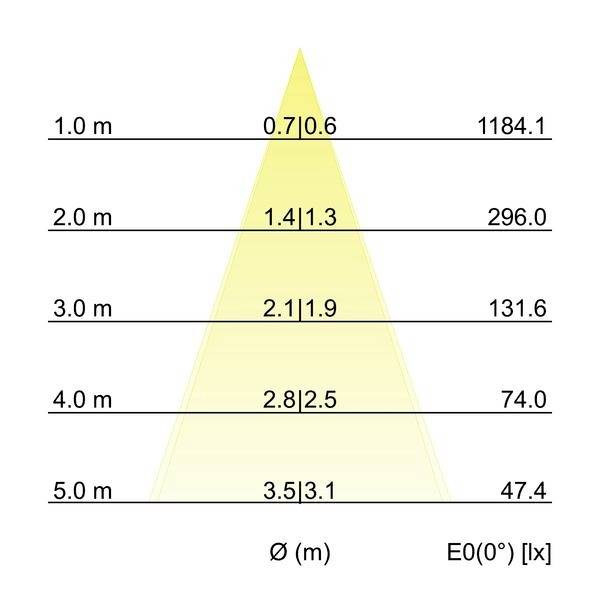

Light distribution of a luminaire: At distances of 1-5 m, the illuminance varies between 1184.1 lx and 47.4 lx.

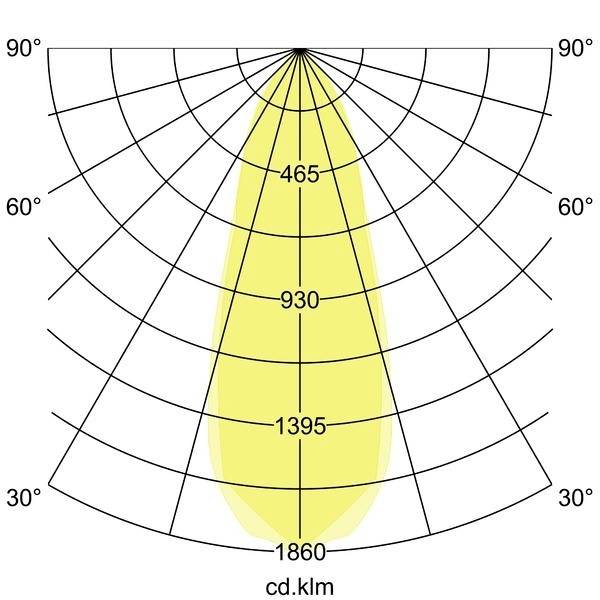

Polar diagram shows the light distribution of a luminaire in yellow, with distance values ranging from 465 to 1860 cd/klm, from 0° to 90°.
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Brumberg LED recessed spotlight 3000K 41465173

  • Power= 6 W Total luminous flux= 640 lm Colour temperature= 3000 K Warm white

Technical specifications

Product type

LED recessed/surface-mount light

Operating voltage

230 V

No. of bulbs

1

Bulb type

LED (monochrome)

Rating per bulb

6 W

6 W

640 lm

Total luminous flux

640 lm

3000 K

Colour

Warm white

Type

Square

Protection screen

Clear

Radiation angle

40°

Light features

Swivelling

Ceiling mount option

Dimmable

Recess diameter

68 mm

Recess depth

38 mm

External length

82 mm

External width

82 mm

IP20

Protection class

II

Factory colour

White

Material

Aluminium

Plastic

n.rel.

Dim

(W x H) 82 mm x 2 mm

Yes

Light bulb included

Yes

Colour temperature range

3000 K

Width

82 mm

Height

2 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2748663 Brumberg 41465173 41465173 LED recessed/surface-mount light LED (monochrome) 6 W White

Description

LED Recessed Spotlight Set, DALI dimmable, with junction box, structured white, square. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Set inclusive Converter for 230 V mains voltage, DALI-2 dimmable, Converter dimensions: L 130 x B 42 x H 22 mm Mounting type: Mounting mounting, mounting location: Ceiling mounting, material: Aluminium / plastic, enclosure rating: Room side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 6W, number of lights / sockets: 1.0 pcs, light current: 640 lm, color temperature 3,000 K, light color: White, angle of radiation 38°, Adjustable: Swivelling, with operating device: Yes, type of dimming: DALI-2.

This text is machine translated.
