Brumberg 65121103 65121103 LED wall light Built-in LED 7.9 W LED (monochrome) Grey
EAN:
Part number:
Item no:
Highlights & Details

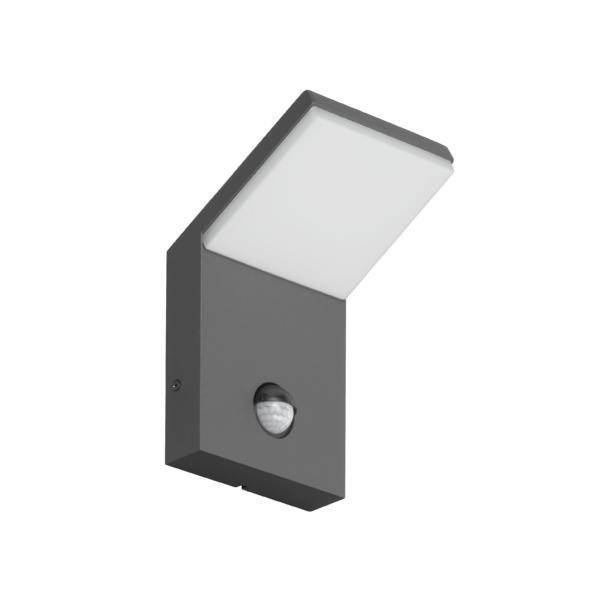

Brumberg LED wall-mounted luminaire 3000K, graphite 65121103
- Power= 7.9 W
- Total luminous flux= 680 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Material of housing: Aluminium
- Housing color: Grey
- Design of grid: Without
- Voltage type AC
- Nominal voltage: 230 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: No.
- Without dimming function: Yes
- Light emission: Direct
- Protection class (IP) IP54
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Suitable for emergency light: No.
- Integrated emergency power supply: No.
- With motion detector: Yes
- With light sensor: No.
- With air vents: No.
- Suitable for lamp output 7.9 W
- Max. System power 7.9 W
- Light output 86.08 lm/W
- Rated light current according to IEC 62722-2-1: 680 lm
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89

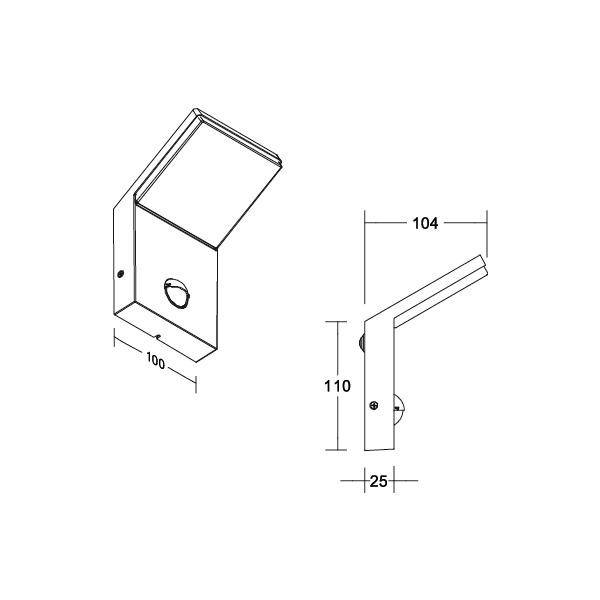

- Width 100 mm
- Height/depth 105 mm
- Length: 104 mm
- Type of wiring: Finish
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Product type
LED wall light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
8 W
7.9 W
- Light features
Incl. ballast
- Radiation angle
120°
- Protection class
I
IP54
- Factory colour
Grey
- Material
Aluminium
- Dim
(L x W x H) 104.00 x 100.00 x 105.00 mm
n.rel.
- Type
Rectangular
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
680 lm
680 lm
- Width
100.00 mm
- Height
105.00 mm
- Length
104.00 mm
- Depth
105 mm
- Rated luminous flux
680 lm
- Colour rendering index
80-89
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135804 Brumberg 65121103 65121103 LED wall light Built-in LED 7.9 W LED (monochrome) Grey
Description

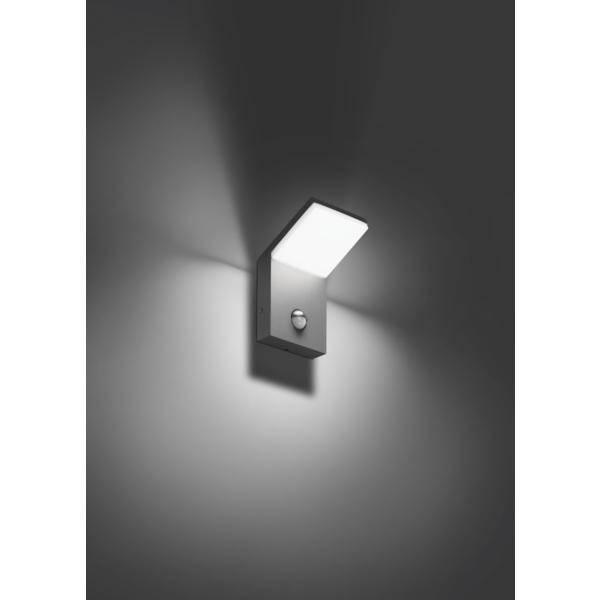

LED wall-mounted luminaire, IP54, structure graphite, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: Mounting, mounting location: Wall mounting, material: Aluminum / plastic, protection class: On the room side: According to DIN EN 60529: IP54, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 7.9 W, number of lights / sockets: 3,000 piece, light current: 120 lm, color temperature: From 3,000 K to 1 K, light color: White, angle: 680°, adjustable: not adjustable, with operating device: yes, Type of dimming: switchable.
