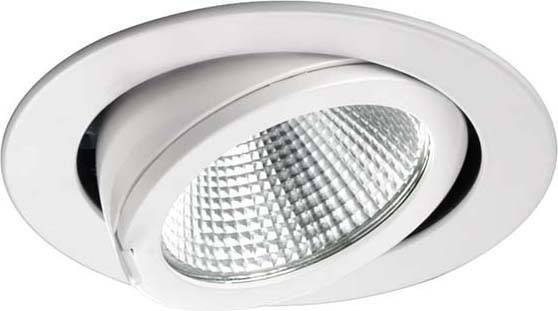

Brumberg 88673175 88673175 LED recessed light LED (monochrome) w/o 29 W White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN REFLOODLIGHT 38Gr.,3500K,white 88673175
- Power= 29 W Total luminous flux= 2668 lm Colour temperature= 3500 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 2668 lm
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Colour temperature: 3500 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Cover material: Transparent glass
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
29 W
29 W
2668 lm
- Total luminous flux
2668 lm
3500 K
- Colour
White
- Type
Circular
- Protection screen
Clear
- Radiation angle
40°
- Light features
Pivoted
Swivelling
- Recess diameter
140 mm
- Recess depth
130 mm
- Outside Ø
156 mm
IP20
- Protection class
II
- Factory colour
White
- Material
Aluminium
- Weight
1.0 kg
n.rel.
- Dim
(Ø x D) 156 mm x 130 mm
No
- Light bulb included
Yes
- Colour temperature range
3500 K
- Depth
130 mm
- (Ø)
156 mm
Documents & Downloads
Datasheet
Datasheet 2292984 Brumberg 88673175 88673175 LED recessed light LED (monochrome) w/o 29 W White
User & Safety Instructions
User & Safety Instructions 2292984 Brumberg 88673175 88673175 LED recessed light LED (monochrome) w/o 29 W White
Description
LED installation directional emitter, white, round. Designed in a compact design for quick mounting without tools for ceiling installation. Incl. Light source: 1 x LED COB, power LED: 25.3 W, system performance: 28.9 W, heat dissipation: Passive (without fan), material: Aluminum / glass, rotation angle: rotating / swiveling, lamp dimensions: Ø 156 mm x 130 mm, color reproduction: CRI > 80, weight: 1.0 kg, mechanical installation depth depending on swivel angle (45° - 0°) from 95 mm - 130 mm. Incl. Operating device, switchable, power factor > 0.9 (230 V AC 50 Hz). Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum / glass, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 28.9W, Number of bulbs / sockets: 1.0 Stk, Light current: 2.668lm, Color temperature: 3500K, Light color: White, Radiation angle: 38°, Adjustable: Rotatable and adjustable, Dimming type: switchable,
This text is machine translated.
This text is machine translated.
