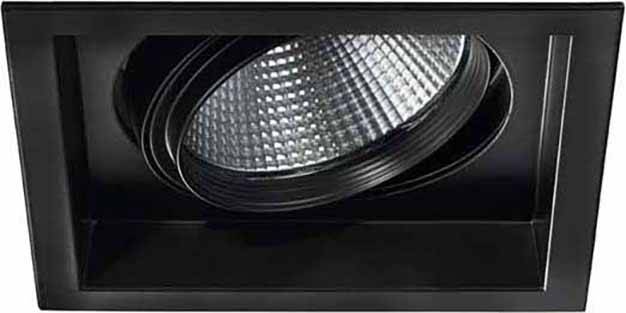

Brumberg 88681183 88681183 LED recessed light LED (monochrome) w/o 34 W Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg Luminaires LED-BLD-IN REFLOODLIGHT 38Gr.,3000K,black 88681183
- Power= 34 W Total luminous flux= 2917 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 2917 lm
- Operating device: LED operating device current-controlled
- Dimming 1-10 V: Yes
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: Yes
- With bulb: Yes
- Reflector: High gloss
- Voltage type: AC
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
w/o
- Bulb type
LED (monochrome)
- Rating per bulb
34 W
34 W
2917 lm
- Total luminous flux
2917 lm
3000 K
- Colour
White
- Type
Circular
- Radiation angle
40°
- Light features
Pivoted
Swivelling
- Recess length
160 mm
- Recess width
160 mm
- Recess depth
150 mm
- External length
180 mm
- External width
180 mm
IP20
- Protection class
II
- Factory colour
Black
- Material
Aluminium
- Weight
1.3 kg
n.rel.
- Dim
(L x W x H) 180 x 180 x 150 mm
Yes
- Light bulb included
Yes
- Colour temperature range
3000 K
- Width
180 mm
- Height
150 mm
- Length
180 mm
Documents & Downloads
Datasheet
Datasheet 2295308 Brumberg 88681183 88681183 LED recessed light LED (monochrome) w/o 34 W Black
User & Safety Instructions
User & Safety Instructions 2295308 Brumberg 88681183 88681183 LED recessed light LED (monochrome) w/o 34 W Black
Description
LED installation directional emitter, black, round. Designed in a compact design for quick mounting without tools for ceiling installation. Incl. Light source: 1 x LED COB, power LED: 31.3 W, system performance: 34.4 W, heat dissipation: Passive (without fan), material: Aluminum / glass, rotation angle: rotating / swiveling, lamp dimensions: L 180 mm x W 180 mm x H 150 mm, color reproduction: CRI > 80, weight: 1.3 kg. Incl. Operating device, switchable, power factor > 0.9 (230 V AC 50 Hz). Socket: None, Mounting type: Installation, Mounting location: Ceiling mounting, Material: Aluminum, Protection type: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 34.4W, Number of bulbs / sockets: 1.0 pcs, Light current: 2.917lm, Color temperature: 3000K, Light color: White, Radiation angle: 38°, Adjustable: Rotatable and swiveling, with operating device
This text is machine translated.
This text is machine translated.
What kind of Flush Mount Lighting are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
