Brumberg 88844163DA 88844163DA LED surface-mount light
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Brumberg LED mounted light 230V 3000K 88844163DA
Technical specifications
- Protection class (IP) IP20
- Protection class: I
- Material of housing: Aluminium
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 90-100
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.

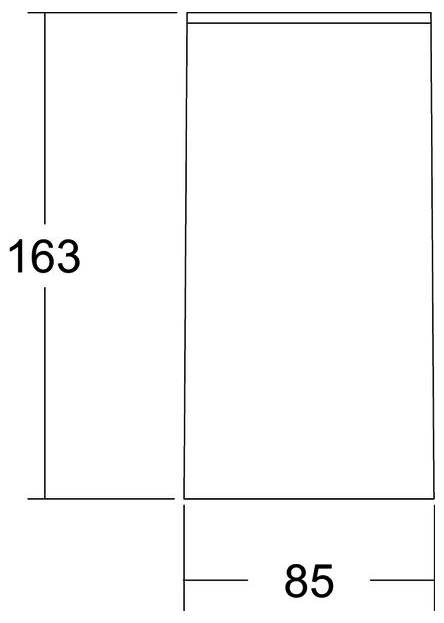

- Height/depth 163 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: Silver
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.

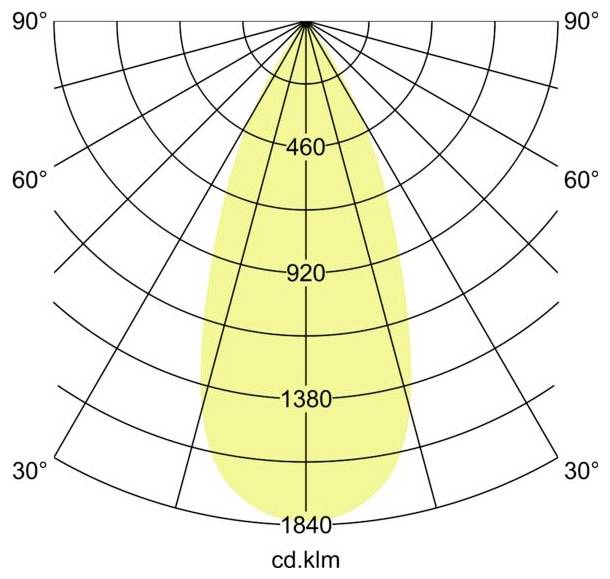

- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 28 W
- Max. System power 28 W
- Rated light current according to IEC 62722-2-1: 3710 lm
- Operation via Bluetooth: No.
- Outer diameter: 85 mm
- Suitable for light band configuration: No.
- Surface protection housing: Powder-coated
- Cover material: Transparent glass
- Suitable for emergency light: No.
- With air vents: No.
- Compatible with Casambi: No.
- Product type
LED surface-mount light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3546126 Brumberg 88844163DA 88844163DA LED surface-mount light
Datasheet 3546126 Brumberg 88844163DA 88844163DA LED surface-mount light
User & Safety Instructions
User & Safety Instructions 3546126 Brumberg 88844163DA 88844163DA LED surface-mount light
Description

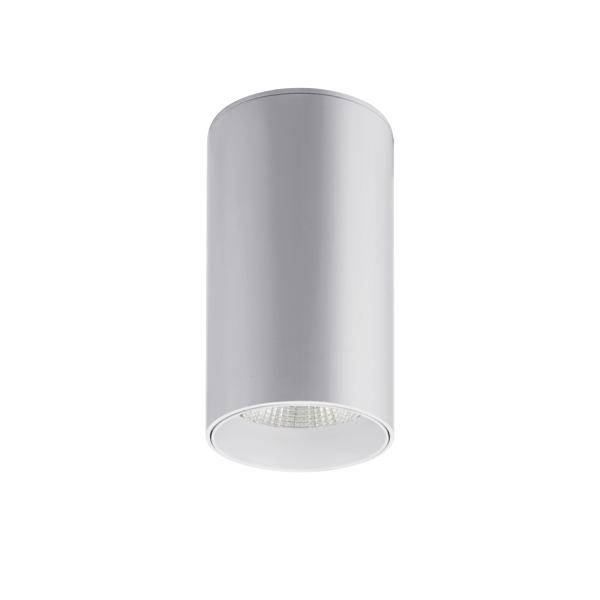

LED Ceiling-mount downlight, DALI dimmable, structural silver, round. Design in a compact design for the harmonious implementation in an architectural space concept. Design: Without socket, mounting type: Mounting mounting, mounting location: Ceiling mounting, material: Aluminium / glass / plastic, protection class: Space side: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 28 3,000 W, number of lights / sockets: 40 piece, light current: 3,710 lm, color temperature: White, angle of radiation: 1°, Adjustable: not adjustable, with operating device: yes, dimmable: yes, type of dimming: DALI.
This text is machine translated.
This text is machine translated.
