Brumberg Busbar Busbar Black 88487380

Black aluminum track lighting rail shown in cross-section, revealing internal electrical conductors and mounting channel.

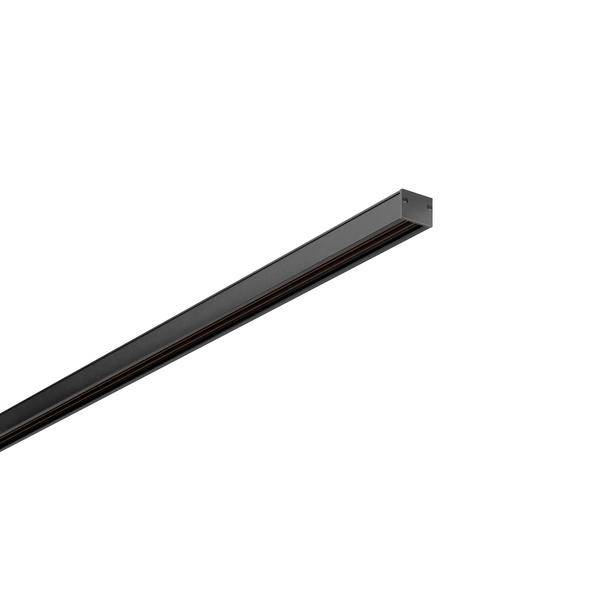

Black linear track light fixture shown diagonally on a white background.<br>

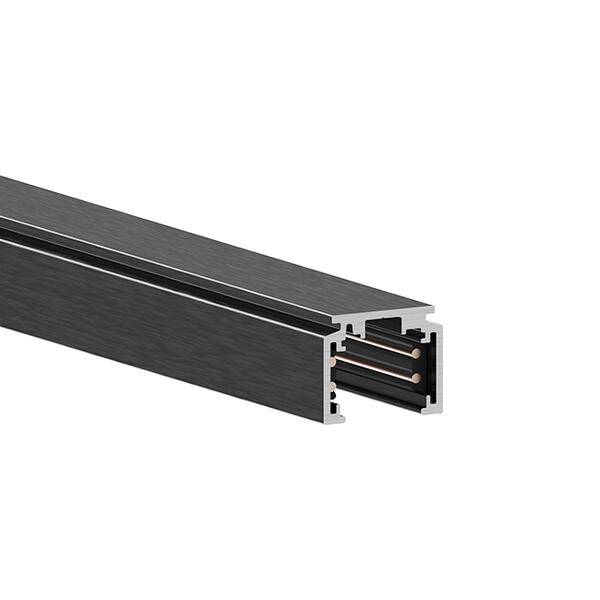

Cross-section of a black track light rail, showing internal copper contacts and mounting channel on a white background.

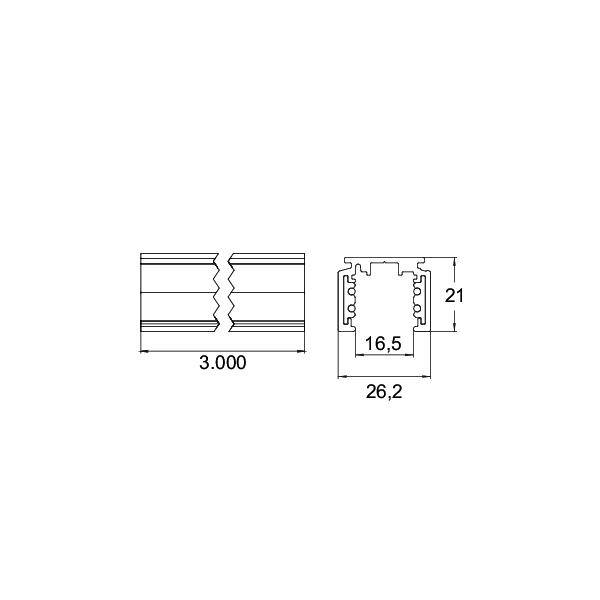

Technical drawing of a split profile showing a 3.000 length and cross-section dimensions 26.2 wide, 21 high, and 16.5 internal width.

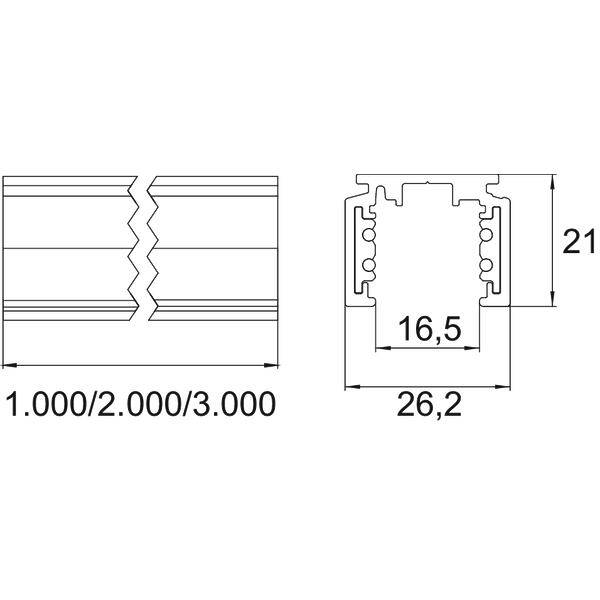

Technical drawing of a segmented linear profile showing lengths 1,000/2,000/3,000 and cross-section dimensions 26.2 wide, 21 high, 16.5 inner width.
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Busbar

Component

Busbar

Operating voltage

48 V

60 V

Protection class

III

Factory colour

Black

Material

Aluminium

Dim

(L x W x H) 3000 x 26.2 x 21 mm

Width

26.2 mm

Height

21 mm

Length

3000 mm

Type

rectangular, matt

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3831811 Brumberg Busbar Busbar Black 88487380

User & Safety Instructions

User & Safety Instructions 3831811 Brumberg Busbar Busbar Black 88487380

Description

Flat 48 V busbar, length 3,000 mm, black, rectangular. Design in a compact design for the harmonious implementation in an architectural space concept. Mounting type: On-board mounting, mounting location: Ceiling/wall/pendant mounting, material: Aluminium, enclosure rating: Room side (DIN EN 60529) IP20, protection class: (DIN EN 61140) III, voltage: 48 V DC.

This text is machine translated.
