Busch-Jaeger 2CKA006200A0131 6256/1-WL Thermostitc radiator valve
EAN:
Part number:
Item no:
Technical specifications
- Design: Key
- Imprint/marking: Symbol "0"
- Detectable symbol/barrier-free: No.
- Use: Blinds
- Suitable for bus system button coupling: No.
- Mounting method: Clamp mounting
- Control window/light output: No.
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface protection: Painted
- Surface design: Glossy
- Antibacterial treatment: No.
- With marking field: Yes
- With replaceable lens/symbol: No.
- Product type
Thermostitc radiator valve
- Factory colour
Grey
Metallic
- Height
63 mm
- Depth
35.8 mm
- Width
63 mm
- Dim
(W x H x D) 63 x 63 x 35.8 mm
- Content
1 pc(s)
IK03
- Material
Plastic
- Weight
1000 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3834921 Busch-Jaeger 2CKA006200A0131 6256/1-WL Thermostitc radiator valve
Description

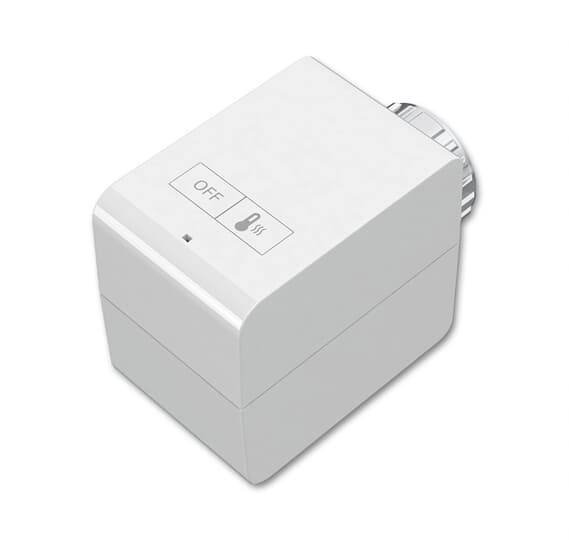

Thermostatic Radiator Valve Basic for Busch-free@home®, for temperature control of water-carrying radiators. With integrated temperature sensor, controller and actuator. On-site operation for switching between Comfort mode and Off. Battery-powered - no cables required. Communication with the free@home system takes place wirelessly. Pay attention to nearby mesh participants. Setpoint setting via the free@home APP or a free@home extension (e.g. 6224/2.0). Larger than window-less than detection via link with 6222/1 AP-xx-WL. With anti-lime function. With frost protection function. Quiet Installation with union nut M 30 x 1.5. Fits on many well-known valve bases (e.g. Braukmann, Heimeier, Honeywell, Junkers, MNG). The adapters for Danfoss RAV, Danfoss RA and Danfoss RAVL are included in the delivery. Adapters for additional valves are available as accessories. Battery included. Battery type: 2 x AA programming via the web-interface of the system access point. Product line: Busch-free@home® Wireless, Busch-free@home®
