Busch-Jaeger 2CKA006200A0136 Valve adapter
EAN:
Part number:
Item no:
Technical specifications
- Design: Protection contact CEE 7/3 (type F)
- Imprint/marking: Without
- Mounting type: Claw / screw attachment
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface protection: Painted
- Design of surface: Matt
- Antibacterial treatment: No.
- Mounting type: Flush-mounted
- Transparent: No.
- Min Depth of the device socket 31 mm
- Device width 71 mm
- Device height 71 mm
- Device depth 45 mm
- With orientation light: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With hinged cover: No.
- Nominal voltage: 250 V
- Frequency: 50 Hz
- Connection type: Plug-in terminal
- Number of active contacts (round): 2
- With signal lamp: No.
- Number of sockets: 1
- Mains sockets with phase separation: No.
- With increased protection against accidental contact: Yes
- Text field/label area: No.
- Metallic color: No.
- Lockable: No.
- Ejection mechanism: No.
- Insulated installation: Yes
- With function light: No.
- Surge protection: No.
- Fault current protection: No.
- With micro-fuse: No.
- With loop-through function: Yes
- With On / Off switch: No.
- Turned central insert: No.
- With Wi-Fi signal repeater: No.
- With built-in Bluetooth speaker: No.
- For "difficult conditions" according to VDE: No.
- Earthed: Earth clips
- Special power supply: Without
- Rated fault power: 0 mA
- Product type
Valve adapter
- Factory colour
Aluminium
- Similar RAL
9006
IK03
- Material
Plastic
- Mounting type
Flush mount
- Nominal current
16 A
- Nominal voltage
250 V
- Phases
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3834347 Busch-Jaeger 2CKA006200A0136 Valve adapter
Description

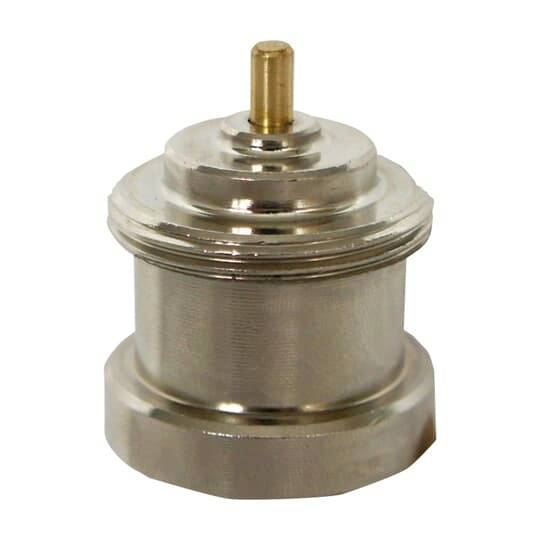

Valve adapter Comap metal adapter for fitting of radiator thermostat (6256/X-WL). For valve lower sections Comap M 28 x 1.5. Product line: Busch-free@home®
