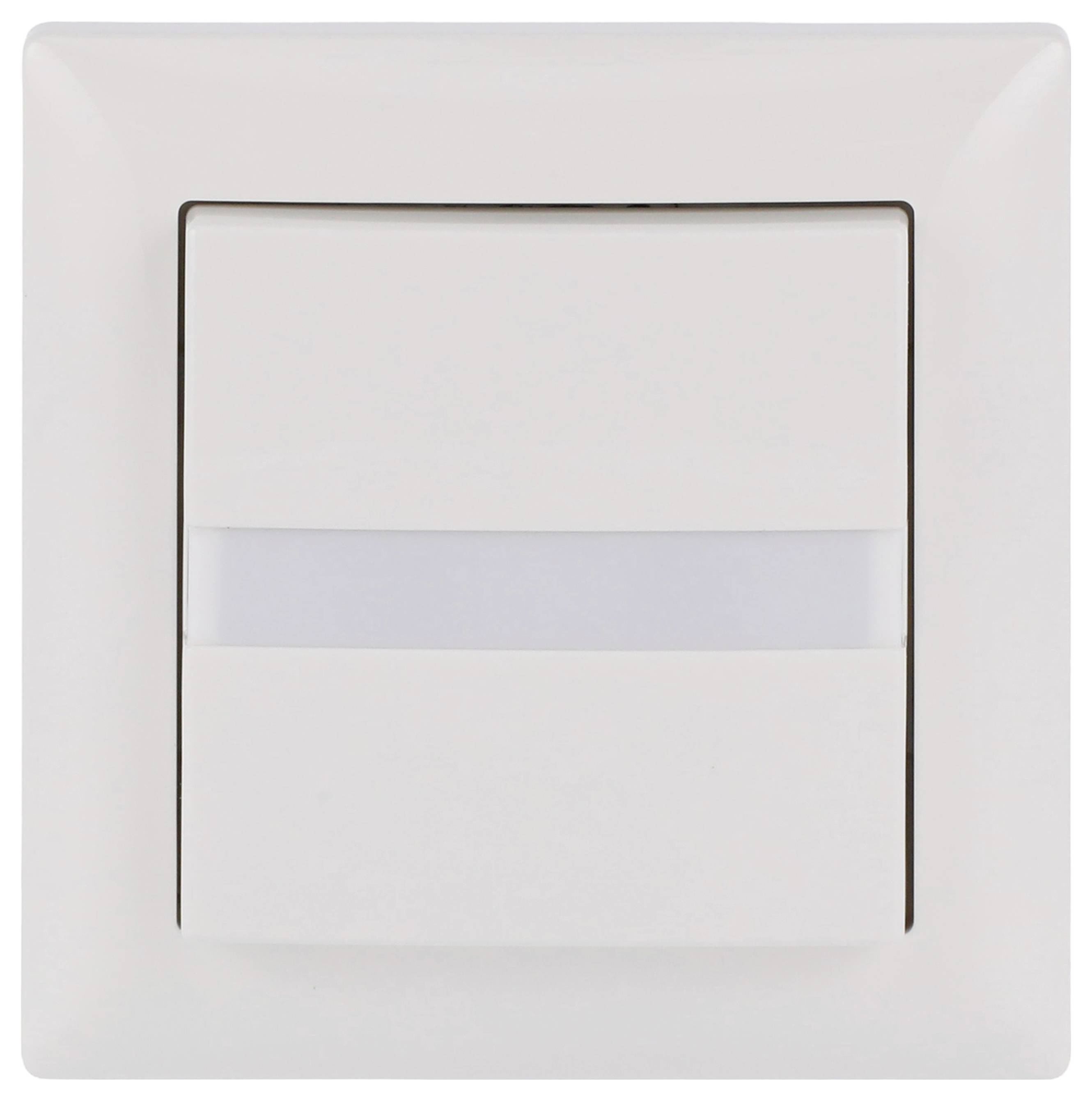

Image similar
Busch-Jaeger 2CKA006800A2912 Flush mount Motion detector Relay Multicolour
EAN:
Part number:
Item no:
Technical specifications
- Height: 81 mm
- Width 81 mm
- Depth: 60 mm
- Mounting depth 25 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- Surface protection: Untreated
- Transparent: No.
- Surface design: Glossy
- Nominal voltage: 230 V
- Type of connection: Screw terminal
- Halogen-free: Yes
- Voltage type AC
- Frequency: 50 Hz
- Max. Switching capacity LED 300 W
- Max. breaking capacity 2500 W
- Suitable for C-Load: Yes
- Min Depth of the device socket 25 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: Yes
- Suitable for ceiling mounting: No.
- Material quality: Thermoplastic
- Antibacterial treatment: No.
- RAL number (similar): 9010
- Response brightness adjustable: Yes
- Optimum mounting height 1.1 m.
- Max. Range to one side: 3 m.
- Max. Range: Front 5 m
- Horizontal coverage angle: 10..170°
- Staircase monitoring: No.
- Min Switch-on time 60 seconds
- Max. duty cycle 10 min
- Constant light control: No.
- HVAC activation: No.
- Network compatible: Yes
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: No.
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: No.
- Dimming function with dimming insert: Yes
- Animal slope: Yes
- Extension input: Yes
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced activation: Yes
- Forced shutdown: Yes
- Scan angle 10°
- By-pass switch: Yes
- Remote control: No.
- With signal unit: No.
- Response brightness 5 - .500 Lux
- Temperature 0..35°C
- Max. Power surge 80 A
- Min Power surge 0 A
- Alarm function: No.
- Number of switching zones: 1
- Product type
Motion detector
- Mounting type
Flush mount
- Operating voltage
230 V
- Contact type
Relay
- Switching capacity
2500 W
- Switching capacity (LED)
300 W
- Factory colour
Multicolour
- Similar RAL
9010
- Width
100 mm
- Height
50 mm
- Dim
(W x H x D) 100 x 50 x 150 mm
- Weight
250 g
- Depth
150 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548084 Busch-Jaeger 2CKA006800A2912 Flush mount Motion detector Relay Multicolour
Description
Ready to install movement detector-push button combination (set packaging).
Consisting of Busch-comfort switch® control element Flex, 64765-914.
Consists of relay insert Flex, 1-way 64811 U.
Consists of Busch-balance SI cover frame, 1-way, 1721-914.
The range specifications refer to an ambient temperature of 21 °C.
Only mount in conjunction with standard UP equipment boxes to DIN 49073 Part 1.
Design line: Busch-balance® SI
Product line: Busch-Flextronics®
This text is machine translated.
