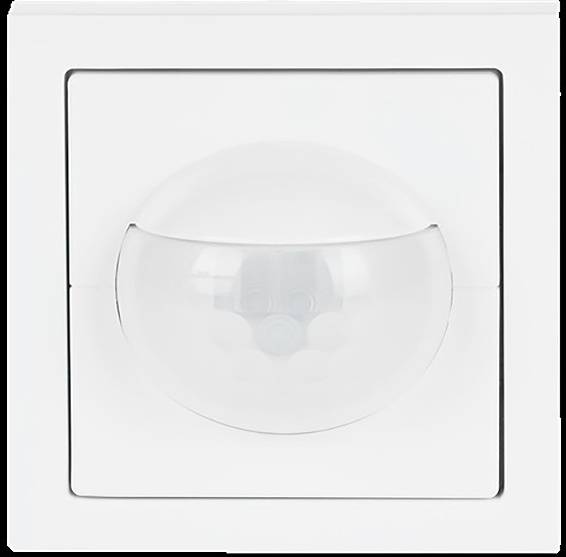

Busch-Jaeger 2CKA006800A3024 Flush mount Motion detector Relay
EAN:
Part number:
Item no:
Technical specifications
- Height: 80 mm
- Width 80 mm
- Depth: 57 mm
- Mounting depth 25 mm
- Design: Motion detector
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Protection class (IP) IP20
- Mounting width 25 mm
- Surface protection: Untreated
- Transparent: Yes
- Surface design: Glossy
- Nominal voltage: 230 V
- Type of connection: Screw terminal
- Halogen-free: Yes
- Voltage type AC
- Frequency: 50 Hz
- Max. Switching capacity LED 300 W
- Max. switching capacity 2300 W
- Suitable for C-Load: Yes
- Min Depth of the device socket 25 mm
- Compatible with Apple home kit: Yes
- Compatible with Google Assistant: Yes
- Compatible with Amazon Alexa: Yes
- IFTTT support available: Yes
- Suitable for wall mounting: Yes
- Suitable for ceiling mounting: Yes
- Installation diameter 40 mm
- Material quality: Thermoplastic
- Antibacterial treatment: Yes
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 2.2 m.
- Max. Range to one side: 8 m.
- Max. Range: Front 8 m
- Horizontal coverage angle: 13..180°
- Staircase monitoring: Yes
- Min Switch-on time 10 seconds
- Max. duty cycle 30 min
- Constant light control: Yes
- HVAC activation: Yes
- Network compatible: Yes
- Suitable for wireless transmission: Yes
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming insert: Yes
- Animal slope: Yes
- Extension input: Yes
- With remote control: Yes
- Sensor type: Other
- With DALI interface: Yes
- Forced activation: Yes
- Forced shutdown: Yes
- By-pass switch: Yes
- Remote control: Yes
- With signal unit: Yes
- Response brightness 5 - .500 Lux
- Temperature: -25..45°C
- Max. Power surge 80 A
- Alarm function: Yes
- Number of switching zones: 1
- Product type
Motion detector
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Contact type
Relay
- Switching capacity
2300 W
- Switching capacity (LED)
300 W
- Similar RAL
9016
- Length
150 cm
- Width
100 mm
- Height
100 mm
- (Ø)
40 mm
- Dim
(Ø x H) 40 mm x 100 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549477 Busch-Jaeger 2CKA006800A3024 Flush mount Motion detector Relay
Description
Ready to install motion sensor for flush mounting (set packaging).
Consists of Busch-Wächter® 180 Flex comfort sensor with multi-lens, 64764-84.
Consists of relay insert Flex, 1-way, 64811 U.
Consists of future® linear cover frame, 1-fold 1721-184K.
The range specifications refer to an ambient temperature of 21 °C.
Only mount in conjunction with standard UP equipment boxes to DIN 49073 Part 1.
Design line: Future® linear, platform 63
Product line: Busch-Flextronics®
This text is machine translated.
Consists of Busch-Wächter® 180 Flex comfort sensor with multi-lens, 64764-84.
Consists of relay insert Flex, 1-way, 64811 U.
Consists of future® linear cover frame, 1-fold 1721-184K.
The range specifications refer to an ambient temperature of 21 °C.
Only mount in conjunction with standard UP equipment boxes to DIN 49073 Part 1.
Design line: Future® linear, platform 63
Product line: Busch-Flextronics®
