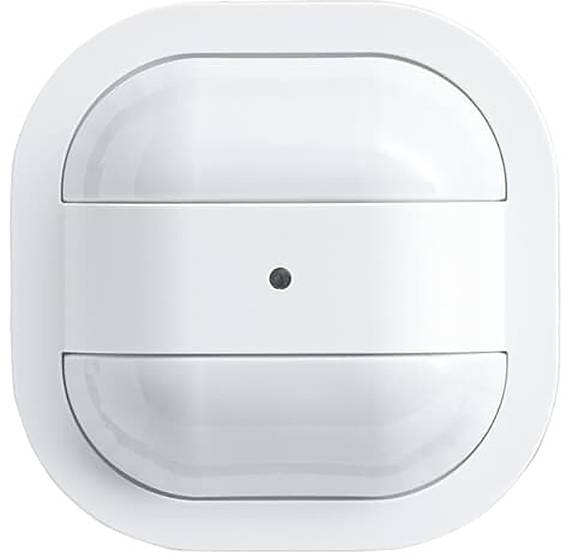

Image similar
Busch-Jaeger 2CKA006800A3026 Flush mount Motion detector and brightness sensor Multicolour Non-stop lighting mode
EAN:
Part number:
Item no:
Technical specifications
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Halogen-free: Yes
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Response brightness adjustable: Yes
- Max. Range to one side: 6 m.
- Max. Range: Front 6 m
- Capturing field Diameter on floor: 12 m.
- Horizontal coverage angle: 90..360°
- Operating mode switch: No.
- Staircase monitoring: Yes
- Min Switch-on time 60 seconds
- Max. duty cycle 30 min
- Constant light control: Yes
- HVAC activation: Yes
- Network compatible: Yes
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Installation height 3 m
- Response sensitivity adjustable: No.
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming insert: Yes
- Animal slope: No.
- With orientation light: No.
- Switch-off delay, self-learning: No.
- Motion detector/button combination: No.
- Product type
Motion detector and brightness sensor
12 m
- Mounting type
Flush mount
- Factory colour
Multicolour
- Similar RAL
9016
- Length
150 cm
- Width
100 mm
- Height
50 mm
- Dim
(L x W x H) 150 cm x 100 mm x 50 mm
- features
Non-stop lighting mode
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550498 Busch-Jaeger 2CKA006800A3026 Flush mount Motion detector and brightness sensor Multicolour Non-stop lighting mode
Description
Presence sensor with mixed-light measurement.
For brightness and movement-dependent switching of lights.
Capturing range (at 3 m mounting height): Circular, seated persons: Up to Ø 10 m, outgoing persons: Up to Ø 12 m.
For constant light regulation in combination with LED-dimmer use Flex, 64851 U.
For heating/air conditioning/ventilation regulation in combination with relay insert Flex, 2-way, 64821 U.
Compatible with all Flex inserts.
Remote control via IR service hand-held transmitter 6843.
Settings elements accessible on the front.
Extension of the detection area by main/extension combination.
Additional possibility of switching on/off via button input.
For semi and fully automatic operation.
With continuous light/duration off function (8 h), IR service hand-held transmitter is necessary.
With teach-in function of the brightness switching threshold, IR service hand-held transmitter is necessary.
With brightness-independent test mode for evaluating the detection area.
With detection display in test mode.
Monitoring density: 72 sectors with 640 switching segments.
Switch-off delay: Adjustable from 1 min to 30 min or short-time pulse of 1 s.
For relay insert Flex, 1-way, 64811 U.
For relay insert Flex, 2-way, 64821 U.
For e-contact-insert Flex,1-way, 64814 U.
For LED push-button dimmer use Flex, 64851 U.
For extension use Flex, 64891 U.
Mounting height 35 mm
Please order the appropriate UP-insert separately.
The range specifications refer to an ambient temperature of 21 °C.
Design line:ProfessionalLINE
Product line: Busch-Flextronics®
