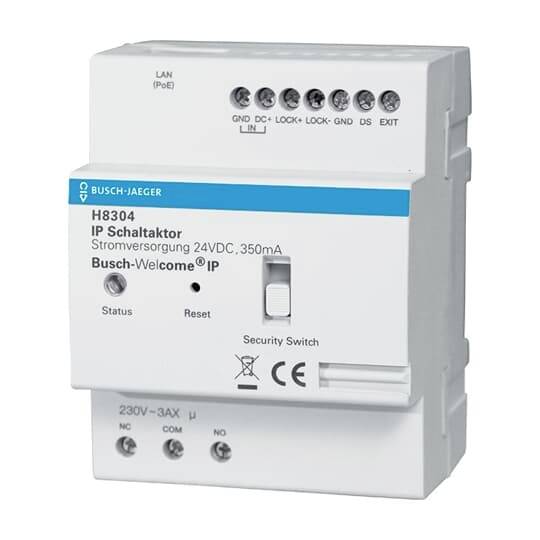

Busch-Jaeger 2TMA130160H0061 IP-switch actuator Beige
EAN:
Part number:
Item no:
Technical specifications
- Usage: Sat
- Mounting method: Fixing with screw
- Material quality: Thermoplastic
- Halogen-free: Yes
- Surface protection: Untreated
- Surface design: Glossy
- Antibacterial treatment: No.
- Mounting type: Flush-mounted
- Transparent: No.
- Min Depth of the device socket 32 mm
- Assembly: Central plate
- Device width 63 mm
- Device height 63 mm
- Device depth 21.3 mm
- Bearing ring: No.
- With dust protection: No.
- With hinged cover: No.
- Outlet direction: Straight
- Labelling field: Without labeling field
- With imprint: No.
- Number of modules (for modular design): 1
- With sockets/couplings: No.
- Suitable for number of sockets/couplings: 4
- With strain relief: No.
- Shielded sockets: No.
- Shielded housing: No.
- Connector strip: No.
- With illumination: No.
- Product type
IP-switch actuator
- Factory colour
Beige
- Width
100 mm
- Height
50 mm
- Depth
150 mm
- Similar RAL
1013
- Material
Plastic
- Mounting type
Flush mount
- Weight
1000 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3834343 Busch-Jaeger 2TMA130160H0061 IP-switch actuator Beige
Description
For connecting an electric door opener or switching the light. Connection option for an electric door opener (DC: 12 V DC, 4 A pulse, max. 500 mA continuous or AC: 12 V AC, 50 Hz, max. 500 mA permanent). Potential free contact: 230 V AC, 3 A or 30 V DC, 3 A. Connection option for external door sensor to detect the state of the door after a door opening. Switch-time for door opener and light can be set via IP Touch 7" or Smart Access Point. Power supply via Power over Ethernet (PoE) 802.3af. Product line: Busch-Welcome® IP
