Bush enclosure 19 30 132 0429 19301320429 HARTING 1 pc(s)
Product type
Bush enclosure
Thread size
M50
Case material
Aluminium, die cast
Type
19 30 132 0429
Manufacturer part #
19301320429
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Locking type: Transverse brace
- Temperature limit: -40 ... +125 °C
- Net weight: 305 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Harting standard housing for industrial plug connectors
- Protection class according to IEC 60529: IP65
- Frame size L32 B
- Approvals DNV GL
- Casing type: Sleeve casing
- Design: Straight cable input
- Cable input 1x M50
- Housing series: HAN® B
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: High design
- Protection class according to UL 50 / UL 50E:4;4X;12
- Type
19 30 132 0429
- Product type
Bush enclosure
- Manufacturer part #
19301320429
- Thread size
M50
- Type
Straight cable input
- Case material
Aluminium, die cast
- Content
1 pc(s)
IP65
FALSE
FALSE
Grey
Double locking levers
1
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
FALSE
Plug case
IP65
Above
Base unit
Metric
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007185 Bush enclosure 19 30 132 0429 19301320429 HARTING 1 pc(s)
Datasheet 3007185 Bush enclosure 19 30 132 0429 19301320429 HARTING 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007185 Bush enclosure 19 30 132 0429 19301320429 HARTING 1 pc(s)
Description

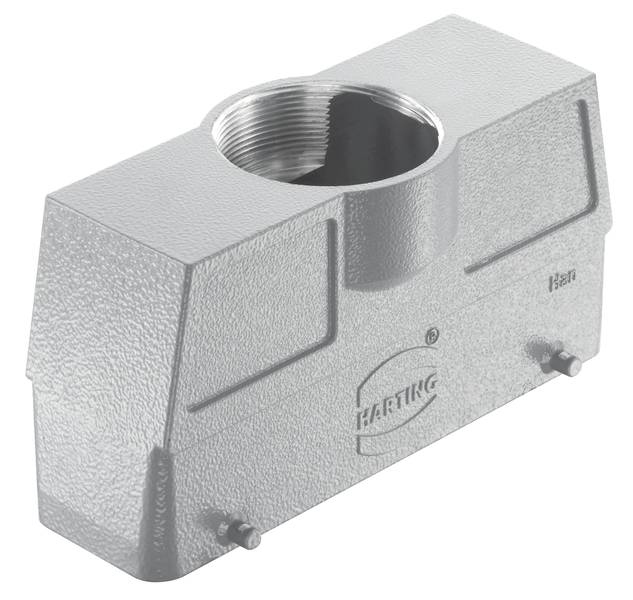

Grommets housing, size: L32 B, high profile, double lever, straight cable input, 1x M50, material housing: die cast aluminum, powder coated
