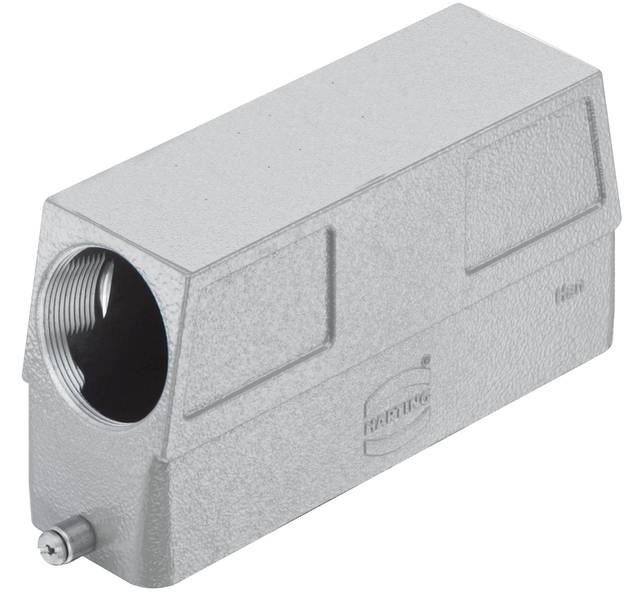

Bush enclosure 19 30 132 0541 19301320541 HARTING 1 pc(s) Single
Packaging type
Single
Product type
Bush enclosure
Series
Han® B
Thread size
M40
Case material
Aluminium, die cast
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 325 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Application area: Harting standard housing for industrial plug connectors
- Protection class according to IEC 60529: IP65
- Frame size L32 B
- Approvals DNV GL
- Casing type: Sleeve casing
- Design: Side cable input
- Cable input 1x M40
- Housing series: HAN® B
- Material housing: Aluminium die-cast
- Surface of housing: Powder-coated
- Colour of housing: RAL 7037 (dust gray)
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Design: High design
- Protection class according to UL 50 / UL 50E:4;4X;12
- Packaging type
Single
- Type
19 30 132 0541
- Product type
Bush enclosure
- Series
Han® B
- Manufacturer part #
19301320541
- Features
high type
- Thread size
M40
- Type
Lateral cable input
- Case material
Aluminium, die cast
- Series
Han® B
- Content
1 pc(s)
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Grey
Single locking lever
1
FALSE
FALSE
Aluminium
Powder coating
-40-125 °C
Other
FALSE
FALSE
Plug case
IP65
Sideways
Base unit
Metric
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3007182 Bush enclosure 19 30 132 0541 19301320541 HARTING 1 pc(s) Single
Datasheet 3007182 Bush enclosure 19 30 132 0541 19301320541 HARTING 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3007182 Bush enclosure 19 30 132 0541 19301320541 HARTING 1 pc(s) Single
Description
Sleeve housing, size: L32 B, high design, longitudinal clamp, lateral cable input, 1x M40, material housing: die-cast aluminum, powder coated
