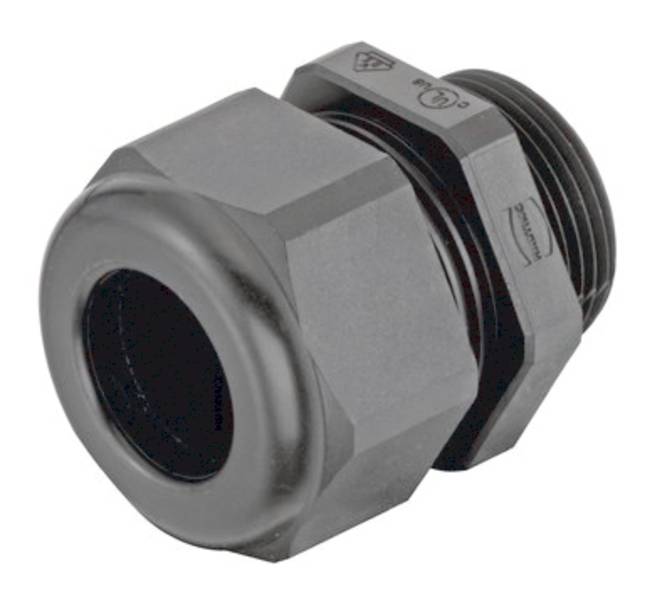

Cable screw gland 19000005186 HARTING Content: 1 pc(s) Cable screw gland
Product type
Cable screw gland
Type
19 00 000 5186
Manufacturer part #
19000005186
Content
1 pc(s)
Colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Temperature limit: -40 ... +100 °C
- Material flammability class acc. To UL 94: V-0
- Net weight: 41.68 g
- Protection class according to IEC 60529:IP68;IP69 / IPX9K according to ISO 20653
- Tightening torque: ≤6.5 Nm (depending on cable and sealing insert used)
- Accessory type: Cable gland
- Approvals DNV GL
- Clamping range: 13 ... 20 mm
- Housing series: HAN® CGM-P
- Material sealing: NBR
- Spanner opening 42
- Screw connection size M32
- Material screwed cable glands: Polyamide (PA)
- Colour cable screwing RAL 9005 (jet black)
- Width across corners 46.8 mm
- Type
19 00 000 5186
- Product type
Cable screw gland
- Manufacturer part #
19000005186
- Content
1 pc(s)
Black
FALSE
Other
42 mm
Plastic
46.8 mm
IP68
Documents & Downloads
Datasheet
Datasheet 3008488 Cable screw gland 19000005186 HARTING Content: 1 pc(s) Cable screw gland
Datasheet 3008488 Cable screw gland 19000005186 HARTING Content: 1 pc(s) Cable screw gland
User & Safety Instructions
User & Safety Instructions 3008488 Cable screw gland 19000005186 HARTING Content: 1 pc(s) Cable screw gland
Description
Cable gland, M32, clamping range: 13 ... 20 mm, material screwed cable glands: Polyamide (PA), IP68, IP69 / IPX9K according to ISO 20653
