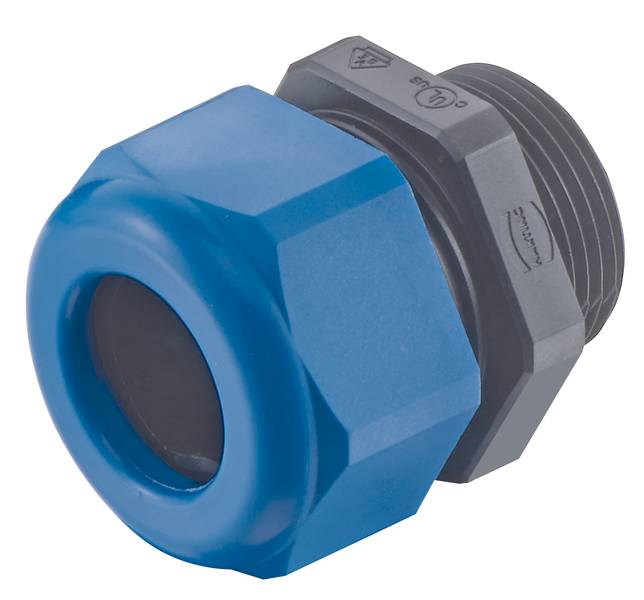

Cable screw gland 19000007109 HARTING Content: 1 pc(s) Cable screw gland
Packaging type
Piece
Product type
Cable screw gland
Type
19 00 000 7109
Manufacturer part #
19000007109
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Temperature limit: -40 ... +100 °C
- Material flammability class acc. To UL 94: V-0
- Net weight: 68.8 g
- Application area: Intrinsically safe circuits
- Protection class according to IEC 60529:IP68;IP69 / IPX9K according to ISO 20653
- Tightening torque: ≤10 Nm (depending on cable and sealing insert used)
- Accessory type: Cable gland
- Colour accessories: RAL 7032 (pebble gray)
- Approvals DNV GL
- Clamping range: 22 ... 32 mm
- Housing series: HAN® CGM-Ex i
- Material sealing: NBR
- Spanner opening 53
- Screw fitting size M40
- Material screwed cable glands: Polyamide (PA)
- Colour cable screwing RAL 5012 (light blue);RAL 9005 (deep black)
- Width across corners 58.8 mm
- Packaging type
Piece
- Type
19 00 000 7109
- Product type
Cable screw gland
- Manufacturer part #
19000007109
- Content
1 pc(s)
- Material
Polyamide
- Max. temperature
100 °C
Grey
FALSE
53 mm
Plastic
58.8 mm
IP68
Documents & Downloads
Datasheet
Datasheet 3008496 Cable screw gland 19000007109 HARTING Content: 1 pc(s) Cable screw gland
Datasheet 3008496 Cable screw gland 19000007109 HARTING Content: 1 pc(s) Cable screw gland
User & Safety Instructions
User & Safety Instructions 3008496 Cable screw gland 19000007109 HARTING Content: 1 pc(s) Cable screw gland
Description
Cable gland, M40, clamping range: 22 ... 32 mm, material screwed cable glands: Polyamide (PA), IP68, IP69 / IPX9K according to ISO 20653
