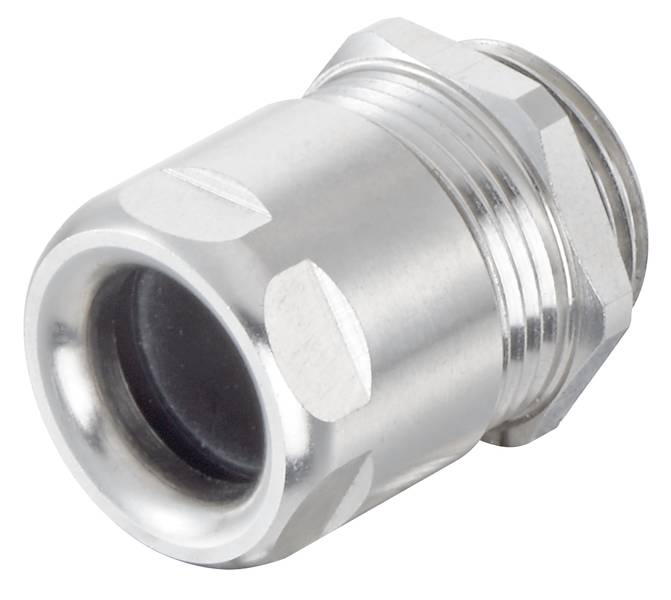

Cable screw gland 19000007123 HARTING Content: 1 pc(s) Cable screw gland
Packaging type
Piece
Product type
Cable screw gland
Type
19 00 000 7123
Manufacturer part #
19000007123
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Temperature limit: -40 ... +100 °C
- Net weight: 63.3 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Protection class according to IEC 60529:IP68
- Tightening torque: ≤7 Nm (depending on cable and sealing insert used)
- Accessory type: Cable gland
- Accessories: Railway version
- Approvals DNV GL
- Clamping range: 14.5 ... 18 mm
- Housing series: HAN® CGM-M-Rail
- Material seal: EPDM
- Spanner size 27;30
- Screw connection size M25
- Material screwed cable glands: Brass
- Surface accessories: Nickel-plated
- Width across corners 32.9 mm
- Packaging type
Piece
- Type
19 00 000 7123
- Product type
Cable screw gland
- Manufacturer part #
19000007123
- Content
1 pc(s)
- Material
Brass
- Max. temperature
+100 °C
Other
FALSE
Nickel-plated
27 mm
Metal
32.9 mm
IP68
Documents & Downloads
Datasheet
Datasheet 3008458 Cable screw gland 19000007123 HARTING Content: 1 pc(s) Cable screw gland
Datasheet 3008458 Cable screw gland 19000007123 HARTING Content: 1 pc(s) Cable screw gland
User & Safety Instructions
User & Safety Instructions 3008458 Cable screw gland 19000007123 HARTING Content: 1 pc(s) Cable screw gland
Description
Cable gland, railway version, M25, clamping range: 14.5 ... 18 mm, material screwed cable glands: Brass, IP68, wrench width 27, 30
