1/4
Cable trolly system for round and flat cables 62200422 LAPP 1 pc(s)
Product type
Cable trolley accessories
Weight
0.199 kg
Content
1 pc(s)
UKCA
yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

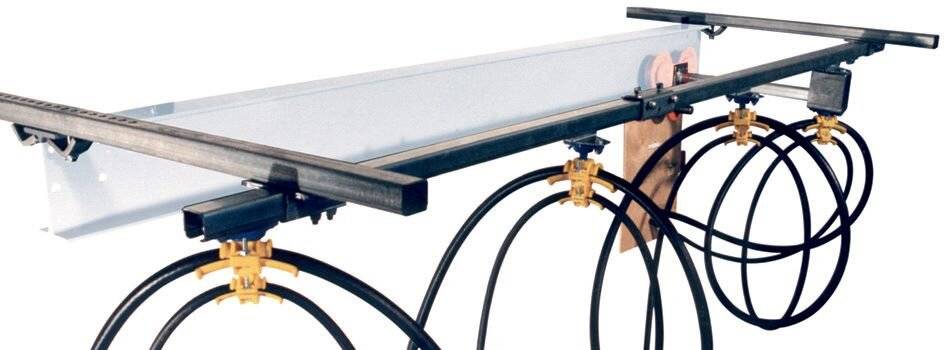

Cable trolly system for round and flat cables
Technical specifications
- Product type
Cable trolley accessories
- Weight
0.199 kg
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1019530 Cable trolly system for round and flat cables 62200422 LAPP 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1019530 Cable trolly system for round and flat cables 62200422 LAPP 1 pc(s)
Description
Application range
Crane and conveying machinery
For hoisting equipment and conveyor systems
Mechanical engineering
Not suitable for applications for Ex-Areas
Benefits
The guiding rollers have ball bearings and guarantee easy, smooth running in the C-profile rails.
The cables in the clamping devices are clamped gently, and an appropriately shaped pressing piece prevents sharp bends at the clamping point.
Crane and conveying machinery
For hoisting equipment and conveyor systems
Mechanical engineering
Not suitable for applications for Ex-Areas
Benefits
The guiding rollers have ball bearings and guarantee easy, smooth running in the C-profile rails.
The cables in the clamping devices are clamped gently, and an appropriately shaped pressing piece prevents sharp bends at the clamping point.
Hints
Product Make-up
Complete system consisting of the following components:
1. Clamps (steel girder)
2. Extension arm
3. End clamp
4. Rail bracket
5. Stopper
6. Cable trailer
7. Track coupler
8. C-profile rail
9. Towing arm
10. Towing trolley
Round- and flat cables are not allowed to combine a sight below and above
