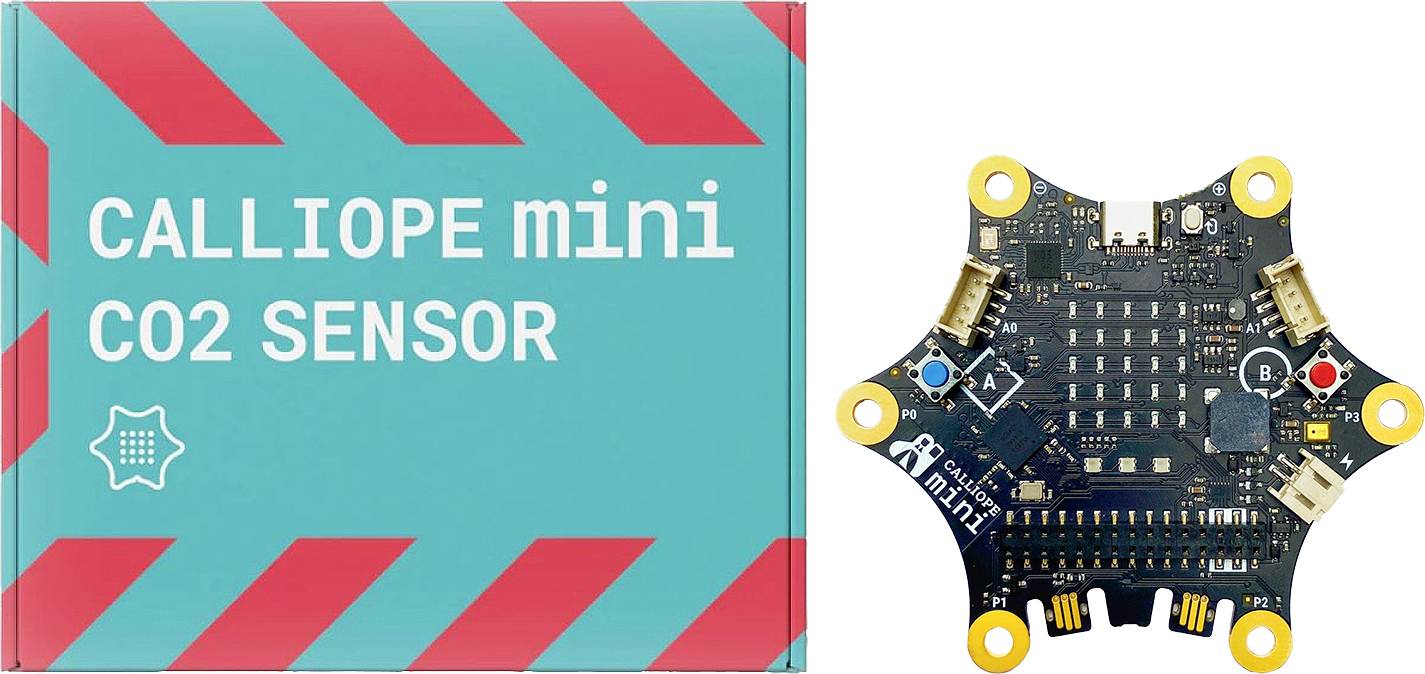

CALLIOPE 4064161311289 Board CO2 Sensor inklusive Calliope 3.0 mini Icon
EAN:
Part number:
Item no:
Highlights & Details
CALLIOPE CO2 sensor with CALLIOPE 3.0 mini icon
- Easy start possible without previous knowledge
- Codes for everyone with a lot of fun
- Flash memory enables the parallel storage of up to 25 different programs
- 25 new start-up programs that offer the possibility of offline use
- With 6 bits. CALLIOPE mini CO2 sensor - SCD40
Technical specifications
- Product type
Board
- Interfaces
SPI™
I²C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998412 CALLIOPE 4064161311289 Board CO2 Sensor inklusive Calliope 3.0 mini Icon
Information
Information 2998412 CALLIOPE 4064161311289 Board CO2 Sensor inklusive Calliope 3.0 mini Icon
Information 2998412 CALLIOPE 4064161311289 Board CO2 Sensor inklusive Calliope 3.0 mini Icon
Description
The CALLIOPE mini is a micro-controller, which is used as an educational medium for children starting from the third class, generally under the supervision of adults.
The CALLIOPE mini shows that all can code and that too with a lot of fun. It's easy to get started, so that children, teachers and parents can get started without any prior knowledge. From the first self-programmed flashing through self-propelled robots to wirelessly communicating with CALLIOPE mini-warms: With a few clicks, you can create your own programs for the microprocessor on a connected computer, which bring the CALLIOPE mini to life.
THE CALLIOPE MINI
Along with 25 red as well as an RGB-LED and two programmable buttons, the board contains a combined position sensor with motion sensor and compass as well as a radio module, with which the CALLIOPE mini can communicate with other CALLIOPE mini. The board can be programmed via laptop or computer via free editors, e.g. Open Roberta Lab from the Fraunhofer Society. You can also transfer self-created programs wirelessly via APP. The board comes with five pre-installed start programs – and 25 others on the flash memory – which are explained in a small booklet and under Calliope.cc/start. In addition, battery holder with high-quality batteries and a USB cable are included in the delivery for the connection to the computer.
CALLIOPE MINI starter BOX
The scope of delivery of the CALLIOPE mini starter box consists of a board itself along with accessories:
- Battery holder with batteries
- USB cable
- Booklet for the first computer-independent applications and one with programming examples
- Rubber strap (to secure the battery compartment)
- Stickers.
Plug in and measure air quality!
The CALLIOPE mini CO2 sensor-SCD40 turns the CALLIOPE mini into a CO2 traffic light. Simply connect and measure the CO2 content, temperature and humidity. The SCD40 sensor can be easily programmed in MakeCode.
This text is machine translated.
The CALLIOPE mini shows that all can code and that too with a lot of fun. It's easy to get started, so that children, teachers and parents can get started without any prior knowledge. From the first self-programmed flashing through self-propelled robots to wirelessly communicating with CALLIOPE mini-warms: With a few clicks, you can create your own programs for the microprocessor on a connected computer, which bring the CALLIOPE mini to life.
THE CALLIOPE MINI
Along with 25 red as well as an RGB-LED and two programmable buttons, the board contains a combined position sensor with motion sensor and compass as well as a radio module, with which the CALLIOPE mini can communicate with other CALLIOPE mini. The board can be programmed via laptop or computer via free editors, e.g. Open Roberta Lab from the Fraunhofer Society. You can also transfer self-created programs wirelessly via APP. The board comes with five pre-installed start programs – and 25 others on the flash memory – which are explained in a small booklet and under Calliope.cc/start. In addition, battery holder with high-quality batteries and a USB cable are included in the delivery for the connection to the computer.
CALLIOPE MINI starter BOX
The scope of delivery of the CALLIOPE mini starter box consists of a board itself along with accessories:
- Battery holder with batteries
- USB cable
- Booklet for the first computer-independent applications and one with programming examples
- Rubber strap (to secure the battery compartment)
- Stickers.
Plug in and measure air quality!
The CALLIOPE mini CO2 sensor-SCD40 turns the CALLIOPE mini into a CO2 traffic light. Simply connect and measure the CO2 content, temperature and humidity. The SCD40 sensor can be easily programmed in MakeCode.
This text is machine translated.
Features
- Nordic nRF52833 Bluetooth 5.4 SoC, Bluetooth Low Energy, Bluetooth mesh
- 64 MHz Arm Cortex-M4 processor, 512 KB Flash, 128 KB RAM
- 5x5 LED matrix
- 3x RGB LED (neoprene)
- USB-C (programming and power supply)
- Acceleration sensor, magnetometer
- DC motor driver (2 motors can be controlled independently)
- Piezo speaker
- MEMS microphone
- 2 programmable buttons
- 4 banana plug pins
- 2x15 double pin strip (2.54 pitch)
- 2x Grove connectors (I2C + Serial/analogue)
- 2x JacDac connectors
- Touch logo (on the back)
- Battery connector (3.3V)
Scope of delivery
- CALLIOPE mini 3.0
- CALLIOPE mini CO2 sensor - SCD40
- USB-C cable
- 2 x AAA alkaline battery
- User manual (German/English)
- Rubberband
- Sticker.
Hints
The CALLIOPE mini is an instructional material, which is to be used mainly under the supervision of adults in the school enterprise. The CALLIOPE mini was manufactured in accordance with the product safety standard EN60950-1 and/or EN62368-1 tested positive.
Please be sure to observe the following:
The USB connector may be connected to only one computer. Please disconnect from the computer when not in use. The CALLIOPE mini should never be operated simultaneously with USB and battery! If the mini is connected to the computer, the battery holder must not be connected to the mini, or the battery holder must be switched off (switch in "off" position)! In battery operation, the CALLIOPE mini may only be operated with batteries of type AAA or LR03 (battery compartment). The voltage applied to the CALLIOPE mini must never exceed 3.3 volts.
When not in use, always switch off the battery holder ("off"); if you use battery holders without on/off switch, please remove the batteries and disconnect the battery holder from the mini. The external engine support may only be operated with a 9V battery (or 6LR61).
Operation with accumulators is not permitted. During operation, touch only the outer ends and the buttons. Small parts must be kept away from small children.
Notes on the connection of external electronic components:
- 5 mA maximum per connection
- 15 mA maximum load (all connections together)
- 100 mA maximum for connection to edge contacts (+/-), supply of max. 3.3V
- When connecting a LED, please use a resistance of at least 220Ω.
- If the CALLIOPE mini gets hot, disconnect from the power immediately and stop using. If you have any problems with the CALLIOPE mini, please contact us, e.g. at: service@calliope.cc
- Further important information, certification data and contact addresses: Calliope.cc/security
