CellPack 125957 Crimp cable lug tin-plated 120 mm² Not insulated 1 pc(s)

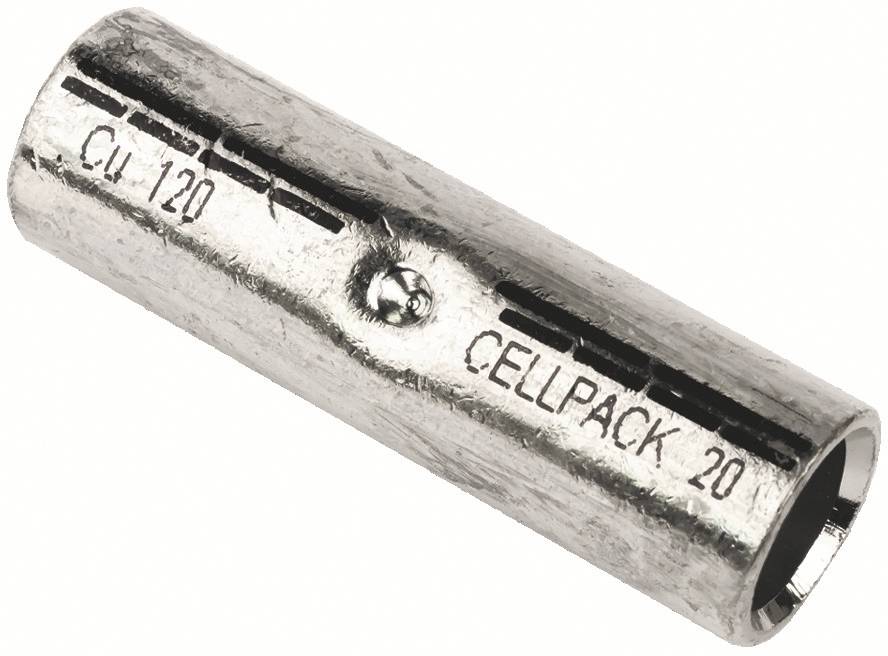

Metal electrical connector sleeve labeled 'CL 1/20' and 'CELLPACK 20', shown in close-up on a white background.

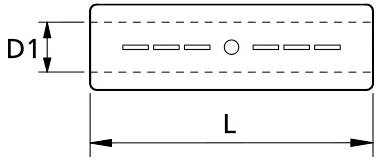

Diagram of a rectangular slotted part with dimension labels D1 for height and L for length, showing a centered hole and horizontal slots.
1/2
Product type
Crimp cable lug
Insulation type
Not insulated
Contact material
Copper
Content
1 pc(s)
max. cross section
120 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Product type

Crimp cable lug

Insulation type

Not insulated

Contact material

Copper

Content

1 pc(s)

Manufacturer part #

125957

Type

DV-CU-V/120

AWG max.

0000

AWG (min.)

0000

max. cross section

120 mm²

Cross-section range

120 mm² (max)

Features

tin-plated

Type

short

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3786308 CellPack 125957 Crimp cable lug tin-plated 120 mm² Not insulated 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3786308 CellPack 125957 Crimp cable lug tin-plated 120 mm² Not insulated 1 pc(s)

Description

Strain relief connector (hexagonal pressing) for copper conductor, suitable for bushes
