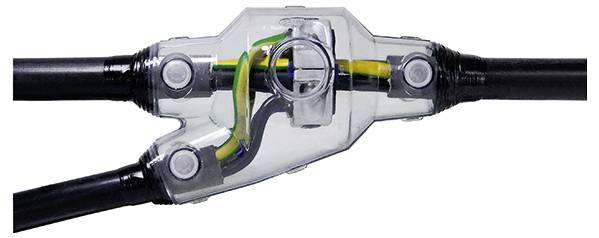

CellPack 133841 Y00/EG Epoxy resing T sleeve Cable Ø range: 19 mm (max) Content: 1 pc(s)
Product type
Epoxy resing T sleeve
Cable Ø (max.)
19 mm
Min. cross section
2.5 mm²
max. cross section
4 mm²
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Cast-resin branch joint for plastic cable Y 00/EG
- Compact dimensions
- High-quality, transparent, impact-resistant plastic molded recesses
- Resistant to chemical influences
- Stabilised against UV rays
- Resistant to alkaline earth
- Longitudinal and transverse water-tightness
- High electrical insulation value
- High mechanical strength
- Ready for immediate operation.
- Fast, simple and safe mounting
- Large filling opening for easy casting
Technical specifications
- Can be used universally
- High electrical insulation value
- Mechanical stability
- Product type
Epoxy resing T sleeve
- Cable Ø (max.)
19 mm
- Min. cross section
2.5 mm²
- max. cross section
4 mm²
- Content
1 pc(s)
- Manufacturer part #
133841
- Dim
(Ø x L) 38 mm x 150 mm
- Factory colour
Transparent
- Cable Ø range
19 mm (max)
- Features
UV-resistant
shockproof
waterproof
- Width
75 mm
- Length
150 mm
- (Ø)
38 mm
- Type
Y00/EG
- Standards
EN 50393
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3742269 CellPack 133841 Y00/EG Epoxy resing T sleeve Cable Ø range: 19 mm (max) Content: 1 pc(s)
Security datasheet
Security datasheet 3742269 CellPack 133841 Y00/EG Epoxy resing T sleeve Cable Ø range: 19 mm (max) Content: 1 pc(s)
Security datasheet 3742269 CellPack 133841 Y00/EG Epoxy resing T sleeve Cable Ø range: 19 mm (max) Content: 1 pc(s)
Signal word
Danger
GHS / H Statements
- H 315: Causes skin irritation
- H 317: May cause an allergic skin reaction
- H 319: Causes serious eye irritation
- H 332: Harmful if inhaled
- H 334: May cause allergies or asthma symptoms or breathing difficulties if inhaled
- H 335: May cause respiratory irritation
- H 351: Suspected of causing cancer(state type of exposure only if proven that no other exposure type may cause these defects)
- H 373: May cause damage to organs (name all organs affected if known) through prolonged or repeated exposure (name exposure type if there is compelling evidence that no other exposure type has the same effect)
GHS / P Statements
- P 201: Obtain special instructions before use
- P 260: Do not inhale dust/fume/gas/mist/vapours/spray
- P 264: Rinse … thoroughly after use
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
- P 304+340: IF INHALED: Take person into fresh air and keep at rest in a position comfortable for breathing
- P 308+313: IF EXPOSED TO/CONCERNED: Seek medical advice
Description
Universal use for branching cables with insulation from PVC, PE, VPE and EPR (e.g. N(A)YY, NYM, TT) without or with concentric conductors. With hydrolysis resistant PUR-cast resin EG. Suitable for single branch terminals on copper and aluminum cable.
For indoor, outdoor, ground, water, installation channels
This text is machine translated.
For indoor, outdoor, ground, water, installation channels
This text is machine translated.
Scope of delivery
- Filling and bleeding funnel, hydrolysis resistant PUR-cast resin EG (ready to mix in a two-chamber mixing bag)
- Transparent plastic molded recess
- PVC insulation tape
- Safety Gloves
- Sealing plugs
- Installation guide
