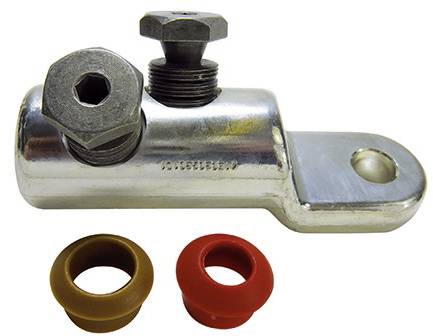

CellPack 195308 Screw-fit ferrule tin-plated, + snap-off head Cross section (max.)=95 mm² 100 pc(s)
Product type
Screw-fit ferrule
Thread size
M12
Content
100 pc(s)
max. cross section
95 mm²
Min. cross section
16 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Screw terminal for Cu and Al SK-V-AS/16-95
- 16 - 95 mm²
Technical specifications
- Product type
Screw-fit ferrule
- Thread size
M12
- Content
100 pc(s)
- Contact material
Aluminium
- Manufacturer part #
195308
- Type
SK-V-AS/16-95
- AWG max.
000
- AWG (min.)
6
- max. cross section
95 mm²
- Min. cross section
16 mm²
- Cross-section range
16 - 95 mm²
- Features
tin-plated
+ snap-off head
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3786746 CellPack 195308 Screw-fit ferrule tin-plated, + snap-off head Cross section (max.)=95 mm² 100 pc(s)
User & Safety Instructions
User & Safety Instructions 3786746 CellPack 195308 Screw-fit ferrule tin-plated, + snap-off head Cross section (max.)=95 mm² 100 pc(s)
Description
Screw terminal for RM/SE aluminum and copper conductors, for a secure hold of the cable, suitable for indoor and open-air end caps.
