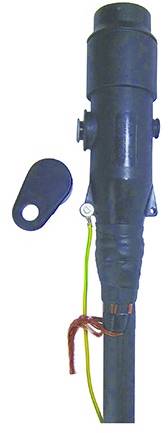

CellPack 293797 Connector straight 1 pc(s)
Product type
Connector
Connector type
straight
Connection
Screws
Content
1 pc(s)
Nominal current - rounded value
250 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
CGS 250A #293797
- Product type
Connector
- Connector type
straight
- Connection
Screws
- Content
1 pc(s)
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Manufacturer part #
293797
- Width
110 mm
- Length
248 mm
- max. cross section
150 mm²
- Min. cross section
70 mm²
- Cross-section range
70 - 150 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3786616 CellPack 293797 Connector straight 1 pc(s)
Security datasheet
Security datasheet 3786616 CellPack 293797 Connector straight 1 pc(s)
Description
Cellplux straight cable connectors CGS are suitable for the connection of all plastic insulated single-conductor cables (PE, VPE, EPR) with different conductive layers (graphite, peel off or peel off) as well as screen designs (wire or tape) at switching stations and transformers for maximum mains voltage up to 24 kV with device plug-in connections for external cone systems type A according to EN 50180 and EN 50181
