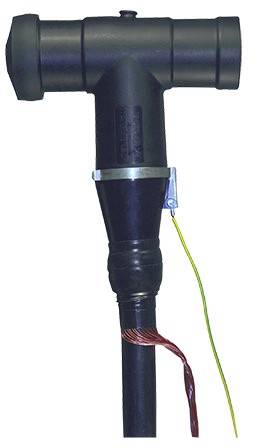

CellPack 301528 Connector T splitter 1 pc(s)
Product type
Connector
Connector type
T splitter
Connection
Screws
Content
1 pc(s)
Nominal current - rounded value
630 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Type
CTS-S 630A #301528
- Product type
Connector
- Connector type
T splitter
- Connection
Screws
- Content
1 pc(s)
- Nominal current
630 A
- Nominal current - rounded value
630 A
- Manufacturer part #
301528
- Width
85 mm
- Height
250 mm
- Length
225 mm
- max. cross section
70 mm²
- Min. cross section
25 mm²
- Cross-section range
25 - 70 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3786760 CellPack 301528 Connector T splitter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3786760 CellPack 301528 Connector T splitter 1 pc(s)
Description
The symmetrical, screw-in Cellplux cable connectors CTS-S are suitable for connection of all plastic insulated single-conductor cables (PE, VPE, EPR with different conductive layers (graphite, peel or peel off) as well as screen designs (wire or tape) on switchgear and transformers for maximum mains voltage up to 36 kV with device plug-in connections for external cone systems type C according to EN 50180 and EN 50181.
