Chauvin Arnoux P01191309 CA 6652 Adapter 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 859.00 / piece)
€ 859.00
incl. VAT
14-day return policy included
Highlights & Details

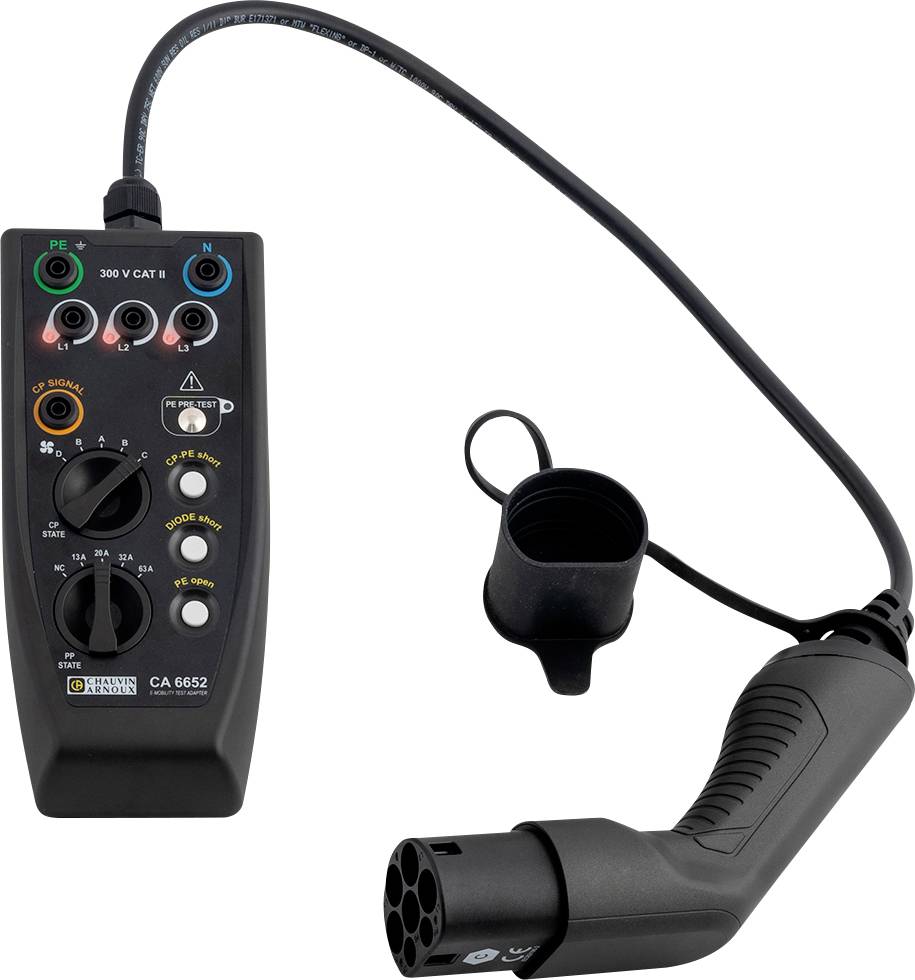

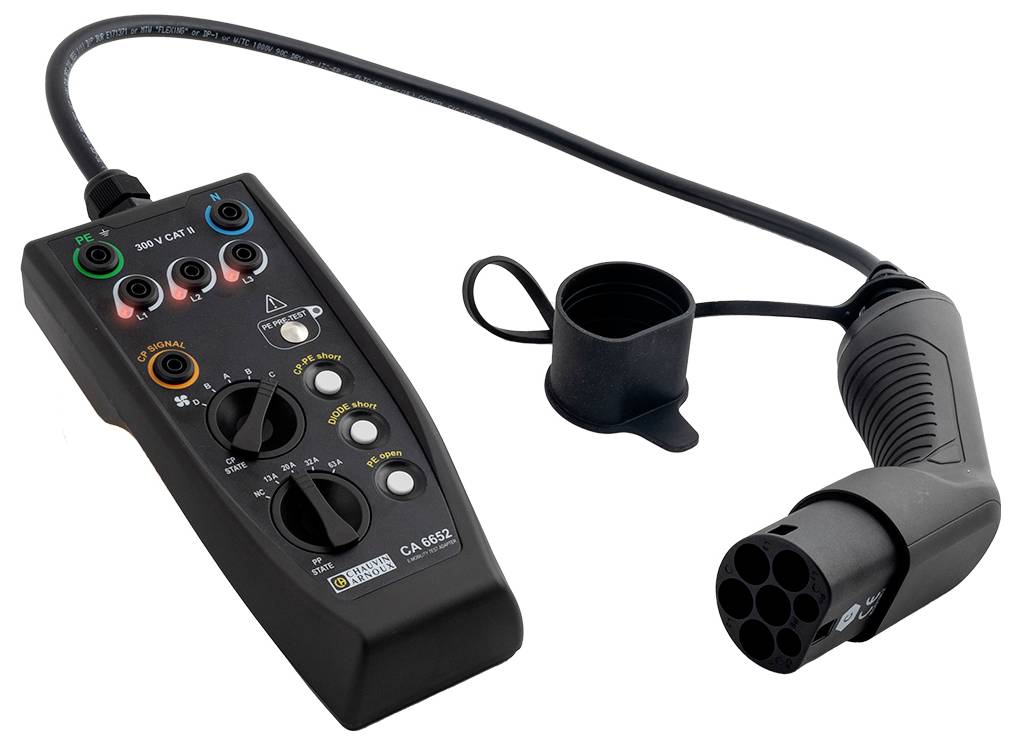

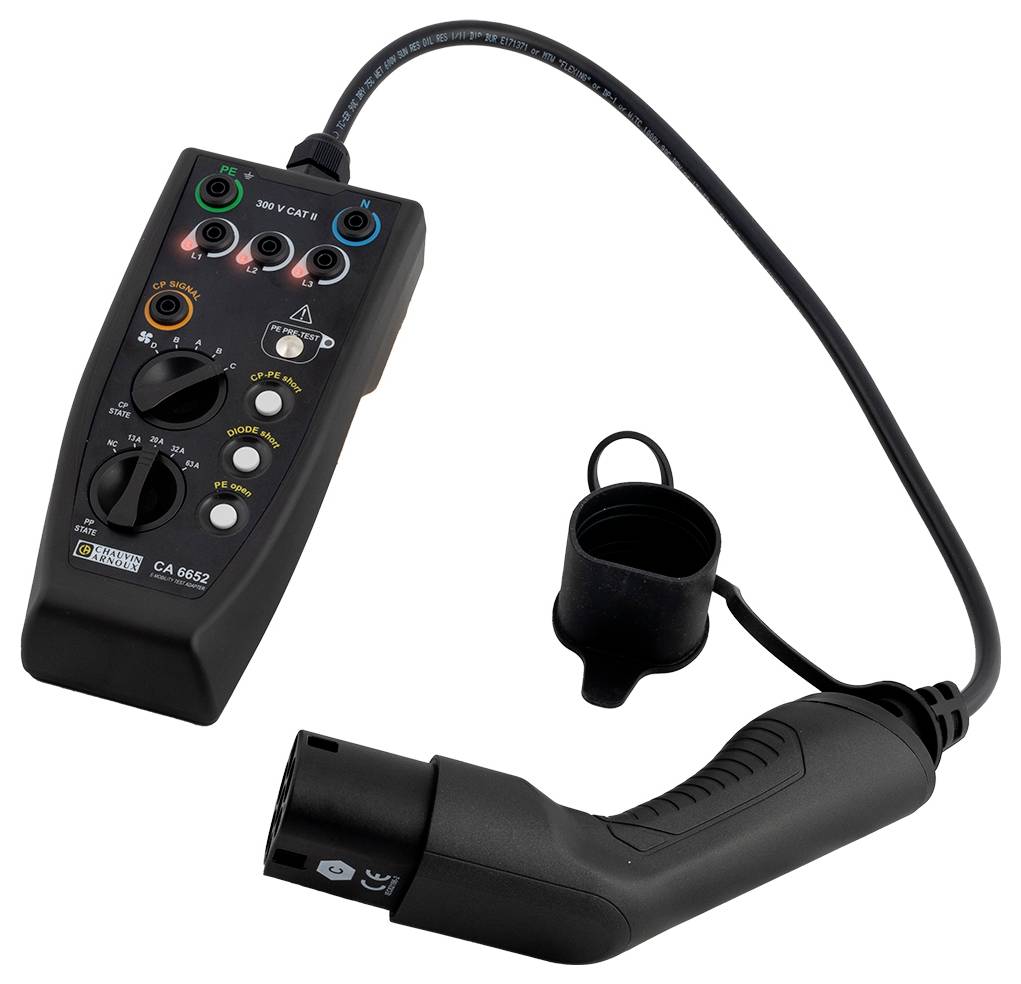

CA 6652 EVSE test adapter for AC charging stations with type 2 connection
- Test adapter for AC charging stations with type-2 plug for electric vehicles
- Immediate diagnosis of AC charging infrastructures for electric vehicles (BEV/PHEV)
- Complies with IEC 61851-1 & IEC 60364-7-722 standards
- Simulation of the vehicle status (CP) and different charging cables (PP) for testing all scenarios
- Quick testing of 3 error states by pressing a button
- Can be used independently or in combination with installation testers
Technical specifications
- Product type
Adapter
- Compatible with
Chauvin Arnoux
- Weight
950 g
- Reading category
CAT II 300 V
- Width
37 mm
- Height
256 mm
- Length
125 mm
- Depth
44 mm
- Type
CA 6652
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436209 Chauvin Arnoux P01191309 CA 6652 Adapter 1 pc(s)
Warranty Terms
Warranty Terms 3436209 Chauvin Arnoux P01191309 CA 6652 Adapter 1 pc(s)
Description
The CA 6652 is an EVSE test adapter with type 2 plug for AC charging stations. It can be used as a standalone product and is part of Chauvin Arnoux's e-mobility solutions.
The CA 6652 is specially designed to meet the needs of the various stakeholders in the EVSE AC field:
• Manufacturer for qualification of E-charging stations
• Installers for the construction and commissioning of e-charging parks
• Service and maintenance companies for store infrastructures
• Testing organizations for initial and repeat inspection
• Educational institutions for educational events via EVSE
As a single device or integrated with e-mobility solutions, the CA 6652 is an essential component for intelligent, reliable and sustainable charging applications for BEV/BHEVs.
Features

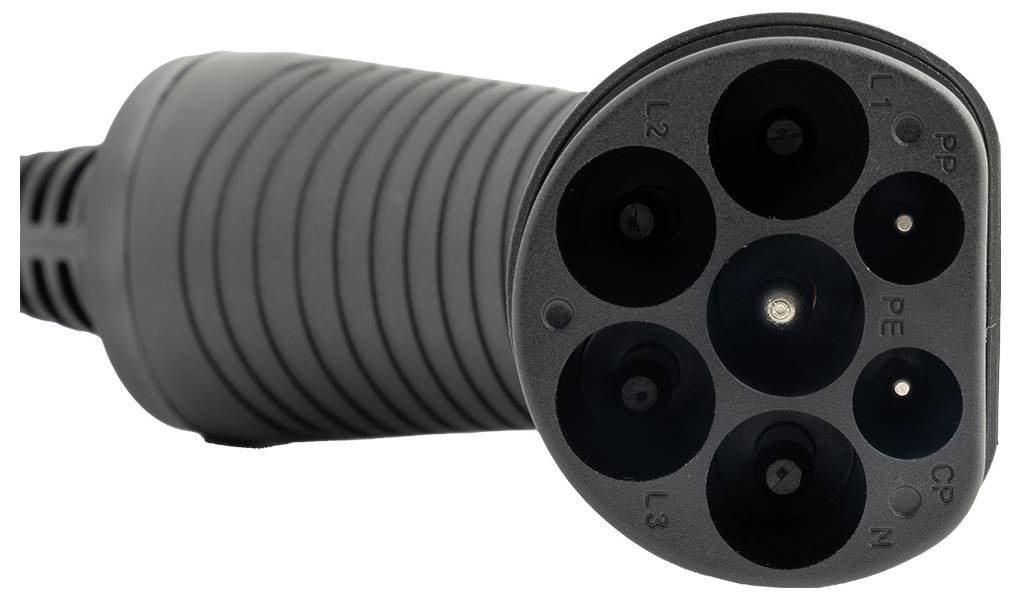

• Equipped with a Type 2 connector in accordance with IEC 62196-2
• Detection of dangerous voltages on the PE by contact electrode
• Indicator light for single-phase and three-phase voltages
• Simulation of the conditions of electric vehicles: A, B, C, D (Control Pilot CP)
• Simulation of the maximum permissible load on the cable: NC, 13A, 20A, 32A, 63A (Proximity Pilot PP)
• Simulation of error states: Short circuit CP-PE, diode short circuit CP-PE, PE open circuit

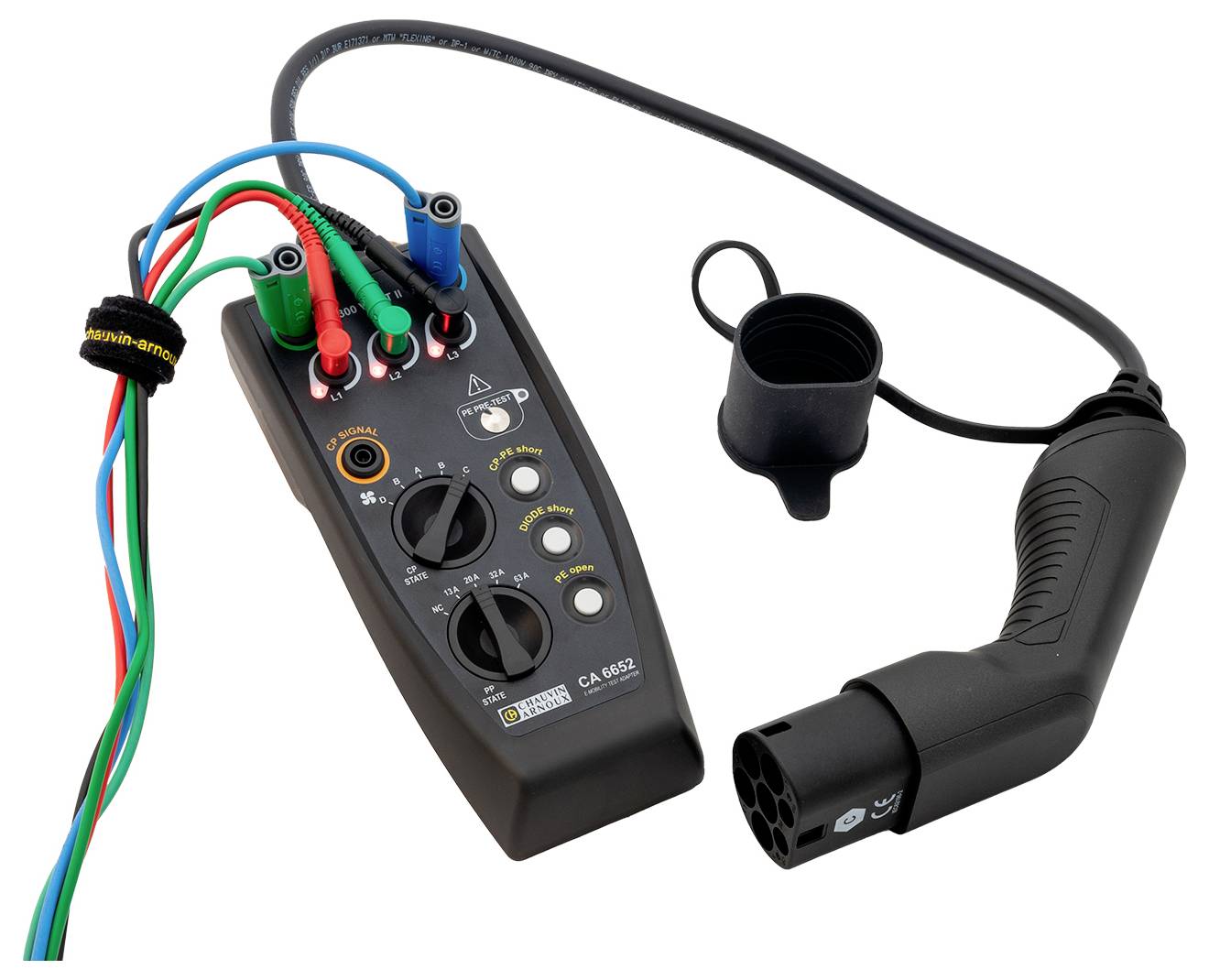

• 4 mm sockets for easy connection of measuring and testing devices
General specifications
• Use: -20 °C ... +55 °C
• Protection class IP54 / IP40
• Dimensions 221 x 100 x 44 mm
• Weight: Approx. 850g
Compliance with standards / safety
• Adapter IEC / EN 61010-2-031
• Category: 300V CAT II.
• EMC / EN 61326-1
EVSE-Sets
• As part of the EVSE sets, the CA 6652 with an installation tester allows tests according to IEC 60364-7-722.
Additional features
• Developed and manufactured in France
• Delivery in a carrying case with quick start guide, safety data sheet and test confirmation
3-year guarantee
Strengths
• Compact
• Ergonomic design
• Complies with IEC 61851-1, IEC 60364-7-722
• Indoor and outdoor use

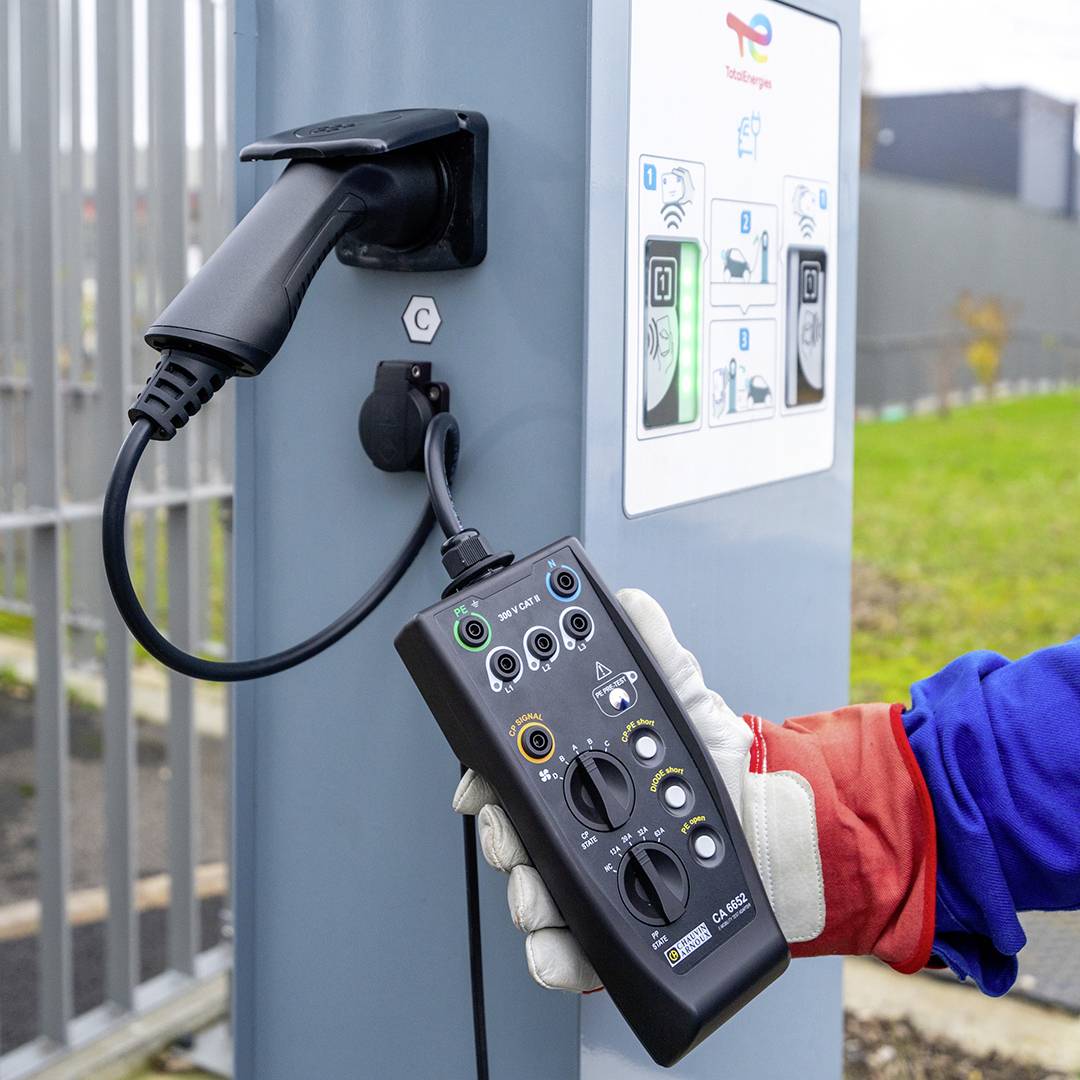

• Immediate diagnosis of the behavior of the AV charging station (EVSE)
• Charging station safety checks thanks to the e-mobility solutions provided by the associated EVSE sets
This text is machine translated.
The CA 6652 is specially designed to meet the needs of the various stakeholders in the EVSE AC field:
• Manufacturer for qualification of E-charging stations
• Installers for the construction and commissioning of e-charging parks
• Service and maintenance companies for store infrastructures
• Testing organizations for initial and repeat inspection
• Educational institutions for educational events via EVSE
As a single device or integrated with e-mobility solutions, the CA 6652 is an essential component for intelligent, reliable and sustainable charging applications for BEV/BHEVs.
Features
• Equipped with a Type 2 connector in accordance with IEC 62196-2
• Detection of dangerous voltages on the PE by contact electrode
• Indicator light for single-phase and three-phase voltages
• Simulation of the conditions of electric vehicles: A, B, C, D (Control Pilot CP)
• Simulation of the maximum permissible load on the cable: NC, 13A, 20A, 32A, 63A (Proximity Pilot PP)
• Simulation of error states: Short circuit CP-PE, diode short circuit CP-PE, PE open circuit
• 4 mm sockets for easy connection of measuring and testing devices
General specifications
• Use: -20 °C ... +55 °C
• Protection class IP54 / IP40
• Dimensions 221 x 100 x 44 mm
• Weight: Approx. 850g
Compliance with standards / safety
• Adapter IEC / EN 61010-2-031
• Category: 300V CAT II.
• EMC / EN 61326-1
EVSE-Sets
• As part of the EVSE sets, the CA 6652 with an installation tester allows tests according to IEC 60364-7-722.
Additional features
• Developed and manufactured in France
• Delivery in a carrying case with quick start guide, safety data sheet and test confirmation
3-year guarantee
Strengths
• Compact
• Ergonomic design
• Complies with IEC 61851-1, IEC 60364-7-722
• Indoor and outdoor use
• Immediate diagnosis of the behavior of the AV charging station (EVSE)
• Charging station safety checks thanks to the e-mobility solutions provided by the associated EVSE sets
This text is machine translated.

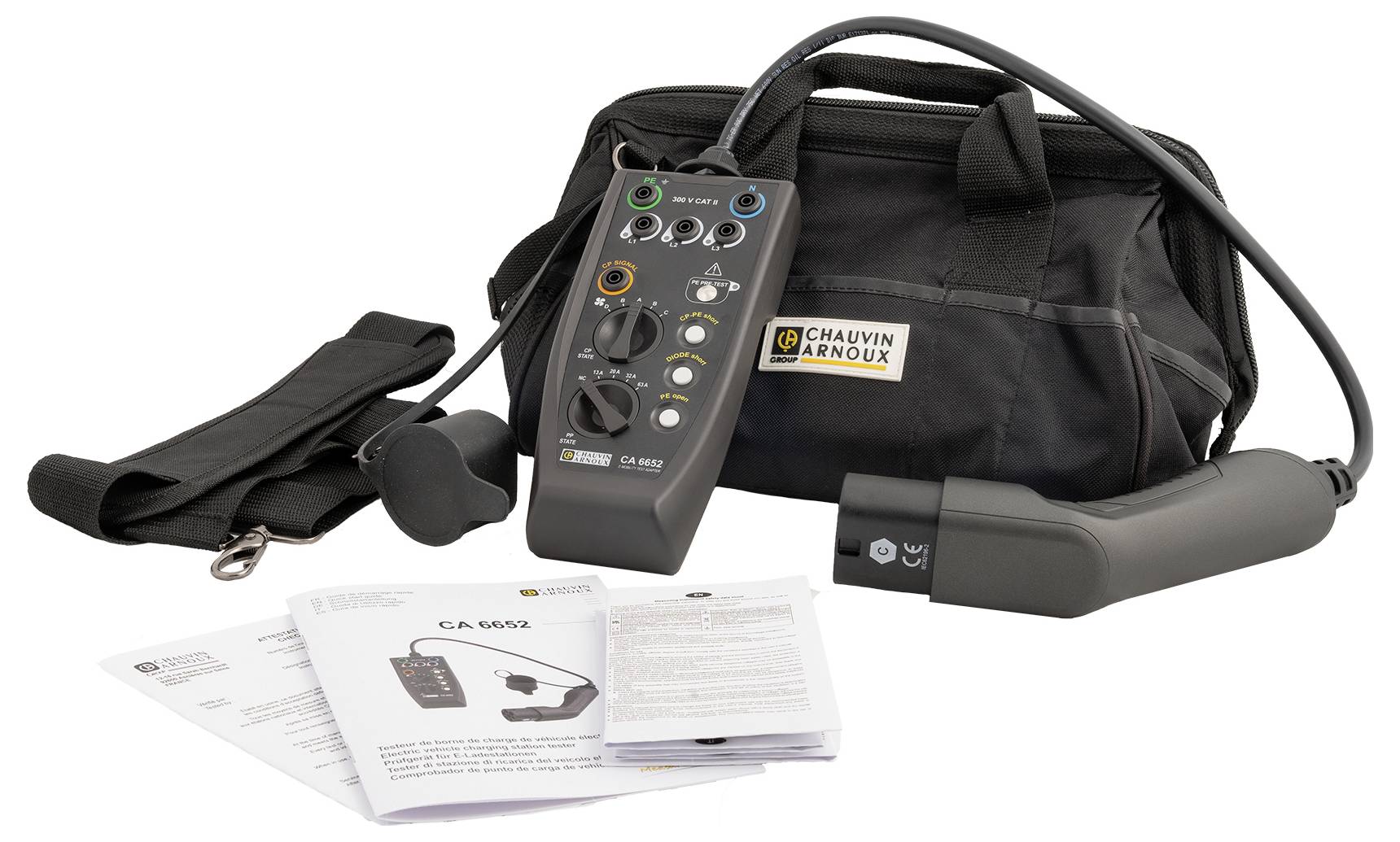

Scope of delivery
- 1 carrying case
- 1 cable with type 2 plug
- 1 multilingual quick start guide
