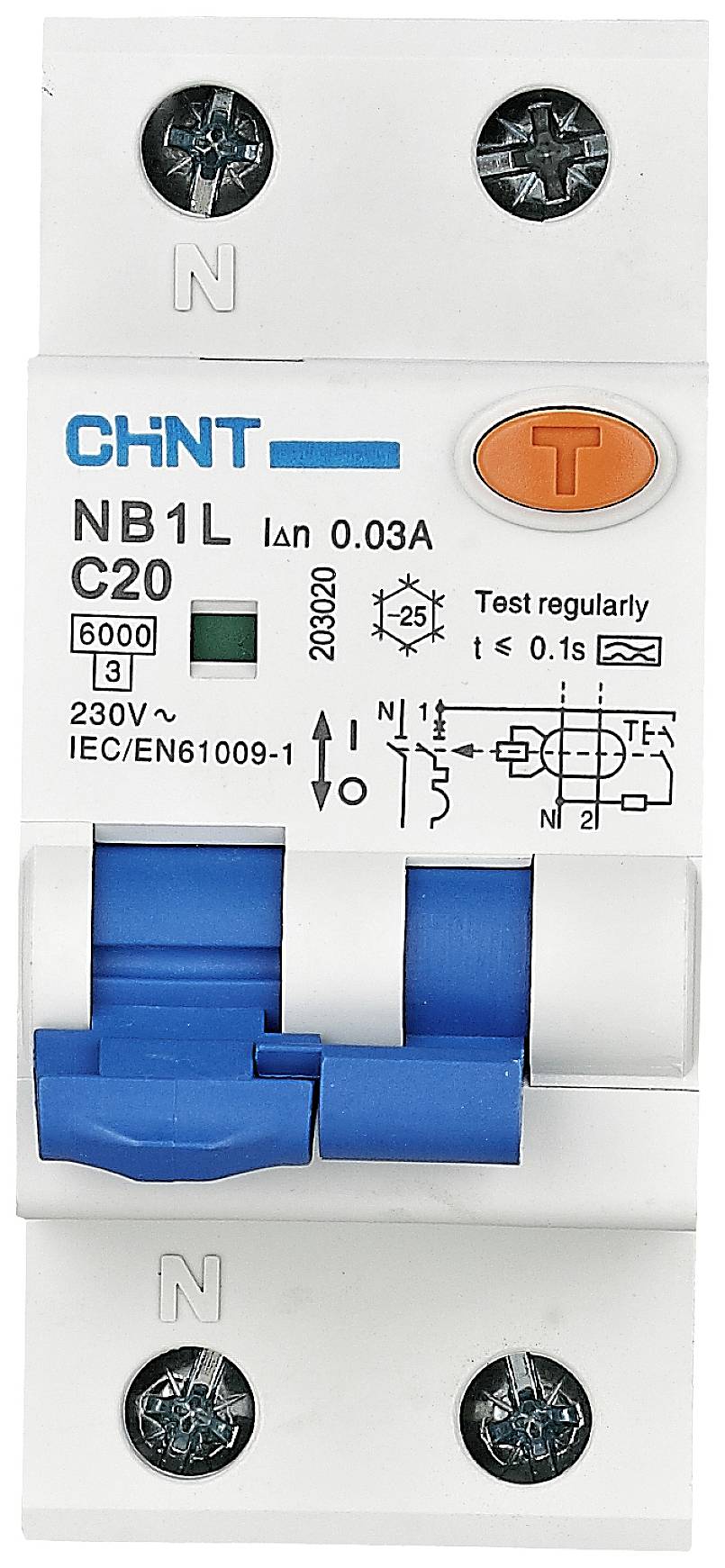

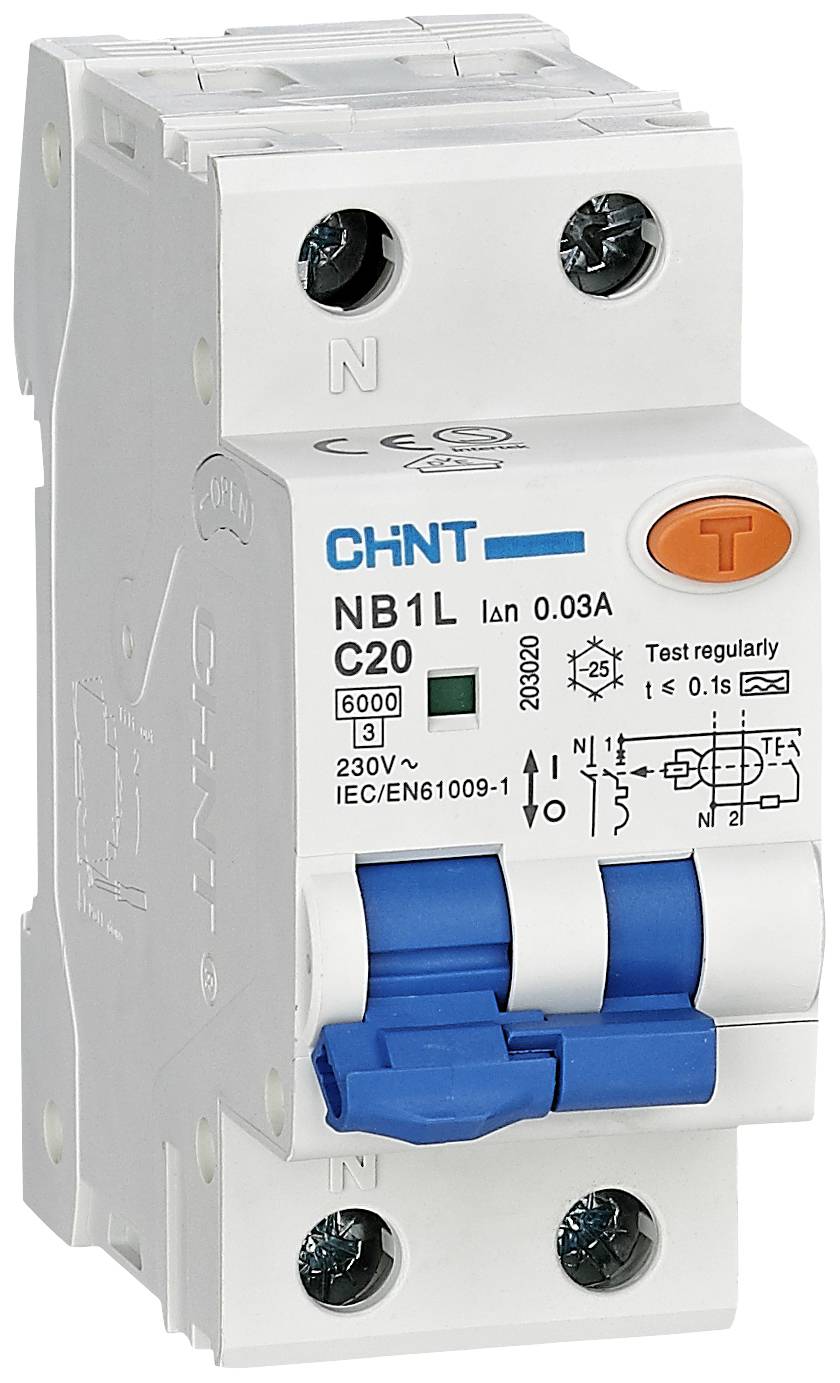

Chint 203020 RCBO 1-pin 20 A 0.03 A 240 V, 415 V
Product type
RCBO
Number of pins
1
Release characteristics
C
Differential current rating
0.03 A
Nominal current - rounded value
20 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 33.99 / piece)
€ 38.99
-13 %
€ 33.99
incl. VAT
14-day return policy included
Highlights & Details
FI/LINE PROTECTION, TYPE A 1P+N C 20A 30MA 6KA
- Nominal voltage=240 V, 415 V
- Nominal current=20 A
- Switch-off capacity=6 kA
- Number of pins=1
Technical specifications
- Product type
RCBO
- Number of pins
1
- Release characteristics
C
- Differential current rating
0.03 A
- Factory colour
Blue
White
- Dim
(W x H x D) 36 x 86 x 77 mm
- Content
1 pc(s)
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Switch-off capacity
6 kA
- Insulation class
II
III
- Nominal voltage
240 V
415 V
- Width
36 mm
- Height
86 mm
- Depth
77 mm
- Type
A
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2525010 Chint 203020 RCBO 1-pin 20 A 0.03 A 240 V, 415 V
Warranty Terms
Warranty Terms 2525010 Chint 203020 RCBO 1-pin 20 A 0.03 A 240 V, 415 V
Description
For use in personal, fire, cable and line protection as well as in the event of overload and short circuit.
Selection
Rated operational fault current
I△n ≤ 30mA: Provides protection against direct contact when the contact voltage is too high.
I△n ≤ 300mA: Provides fire prevention in the event of residual currents.
Type classes
AC type: Triggering with slowly rising and sudden sinusoidal alternating currents.
Type A: Tripping in slow-rising and sudden sinusoidal AC currents as well as in pulsating DC fault currents.
Trigger characteristics
Characteristic B (3-5 ln) Protection of systems against overload and short-circuit as well as protection for people and large cable lengths in the TNS and IT network.
Characteristic C (5-10 ln) Protection of systems against overload and short circuit as well as protection of resistive and inductive loads with low inrush current.
This text is machine translated.
Selection
Rated operational fault current
I△n ≤ 30mA: Provides protection against direct contact when the contact voltage is too high.
I△n ≤ 300mA: Provides fire prevention in the event of residual currents.
Type classes
AC type: Triggering with slowly rising and sudden sinusoidal alternating currents.
Type A: Tripping in slow-rising and sudden sinusoidal AC currents as well as in pulsating DC fault currents.
Trigger characteristics
Characteristic B (3-5 ln) Protection of systems against overload and short-circuit as well as protection for people and large cable lengths in the TNS and IT network.
Characteristic C (5-10 ln) Protection of systems against overload and short circuit as well as protection of resistive and inductive loads with low inrush current.
This text is machine translated.
Scope of delivery
- FI/LINE PROTECTION, TYPE A 1P+N C 20A 30MA 6KA
