Name: Eaton 236.200 RCBO 16 A 0.03 A
Brand: Eaton
SKU: 3828338
Availability: InStock

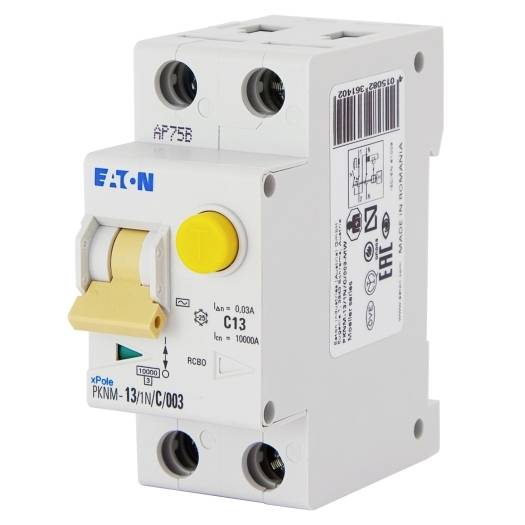

White Eaton xPole circuit breaker with yellow switch and test button, labeled C13 and 0.03A, shown front view.<br>

White Eaton circuit breaker with yellow switch and test button, labeled xPole PKNM-13/1N/C/003 and C13.<br>

1/2

Product type

RCBO

Number of pins

Release characteristics

Differential current rating

0.03 A

Nominal current - rounded value

16 A

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 67.99 / piece)

€ 67.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Eaton FI/LS B16 30 mA

FI/LS combination
Line protection and fault current protection
Rated current 16 A
Residual current 30 mA

Technical specifications

Product type: RCBO

Number of pins: 2

Release characteristics: B

Differential current rating: 0.03 A

RoHS-compliant: Yes

Dim: (W x H x D) 86.0000 x 37.0000 x 75.0000 mm

Content: 1 pc(s)

Nominal current: 16 A

Nominal current - rounded value: 16 A

Width: 86.0000 mm

Height: 37.0000 mm

Depth: 75.0000 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3828338 Eaton 236.200 RCBO 16 A 0.03 A

User & Safety Instructions

User & Safety Instructions 3828338 Eaton 236.200 RCBO 16 A 0.03 A

Description

The Eaton FI/LS combination combines fault current and line protection in a compact device. With a rated current of 16 A and 30 mA fault current protection, it provides reliable protection for people and systems and is suitable for modern electrical installations in the home and commercial area.
