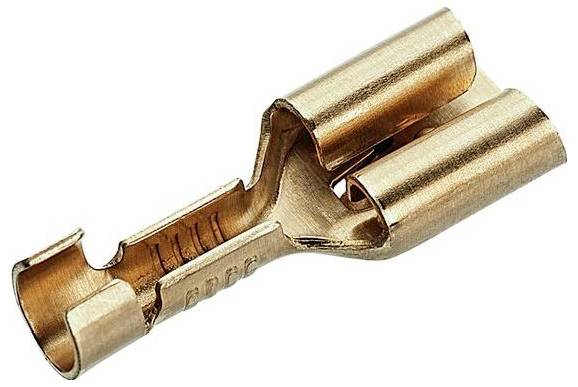

Cimco 181210 Blade receptacle + snap-in nibs, no insulation Connector width: 6.3 mm Connector thickness: 0.8 mm Not insu
Product type
Blade receptacle
Connector width
6.3 mm
Insulation type
Not insulated
Content
100 pc(s)
Connector thickness
0.8 mm
EAN:
Part number:
Item no:
Highlights & Details
- 6.3 mm x 0.8 mm
- -
Technical specifications
- Product type
Blade receptacle
- Connector width
6.3 mm
- Connector thickness
0.8 mm
- Insulation type
Not insulated
- Contact material
Brass
- Content
100 pc(s)
- Manufacturer part #
181210
- Size
6.3 x 0.8 mm
- Features
+ snap-in nibs
no insulation
- Type
181210
- Type
halogen-free
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3818846 Cimco 181210 Blade receptacle + snap-in nibs, no insulation Connector width: 6.3 mm Connector thickness: 0.8 mm Not insu
Description
Female spade connectors with snap-in tongue, not insulated. Technical data: Material: Brass, plain, DIN 46340. For snapping into housings. Cross-section: 0,5-1 mm²: Plug size: 6.0,8 mm; Length total: 20 mm; Weight per 100 pcs.~kg: 0.085; VE/units: 100.
