Name: Circuit breakers 1000 A 8 makers, 8 breakers Siemens 3KD50300QE200
Brand: Siemens
SKU: 2263602

'Siemens HRC switch' with three fuses, grey enclosure, circular switch in the centre, suitable for industrial applications.

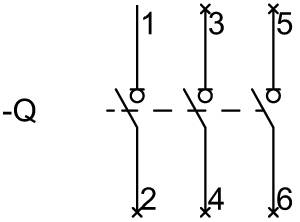

Diagram shows a vertical line with branches to numbered points: 1, 3, 5 at the top; 2, 4, 6 at the bottom. Left connection to '-Q'.

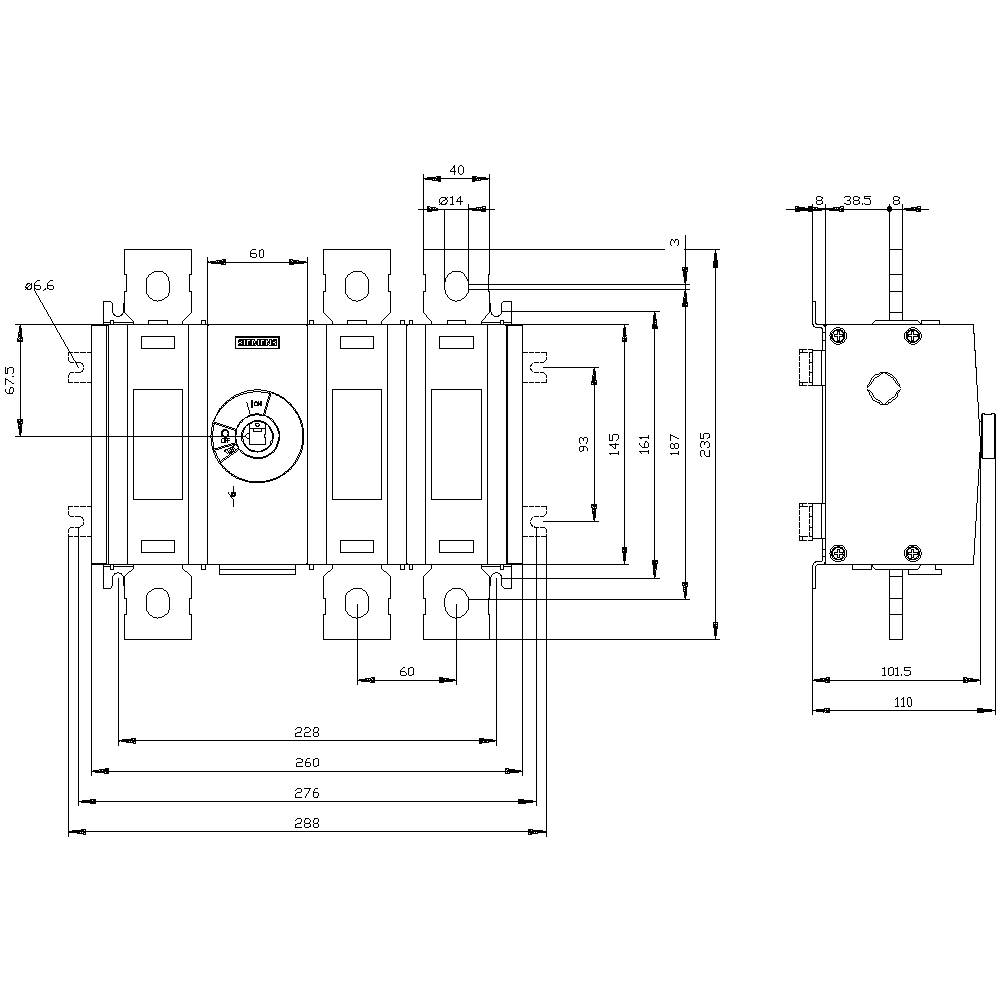

Technical drawing of a switch with detailed dimensional specifications in millimetres. Shows front and side views. Main dimensions: 268 mm width, 151 mm height.

1/3

Image similar

Product type

Circuit breakers

Number of pins

Nominal current - rounded value

1000 A

Contact type

8 makers

8 breakers

Operating voltage

1000 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Display type / for switch position indicator Door clutch rotary operating mechanism: ON-OFF
Type of electrical connection for main circuit: Flat connection
Size of the switch disconnector: 4
Fastening method: Screw fixing
Floor mounting: Yes
Insulation voltage 1000 V.
IP00 protection
Ambient temperature during operation: -25 °C - +70 °C.
Power loss max. 105 W
Mechanical life (operations) / typical 8000
Surge voltage resistance: 12 kV

Product type: Circuit breakers

Contact type: 8 makers
8 breakers

Operating voltage: 1000 V AC

Number of pins: 3

Dim: (W x H x D) 260 x 235 x 110 mm

Nominal current: 1000 A

Nominal current - rounded value: 1000 A

Type: Front wheel drive

Width: 260 mm

Height: 235 mm

Depth: 110 mm

: 8

: 8

: 800 A

: 3

: IP00

: 0

: 1

: FALSE

: FALSE

: Flat plug-in connection

: TRUE

: None

: TRUE

: TRUE

: TRUE

: 560 kW

: 30 kA

: Other

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: 1000 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 1000 A

: 400 kW

: FALSE

: 1000

: Other

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2263602 Circuit breakers 1000 A 8 makers, 8 breakers Siemens 3KD50300QE200

User & Safety Instructions

User & Safety Instructions 2263602 Circuit breakers 1000 A 8 makers, 8 breakers Siemens 3KD50300QE200

Description

Switch disconnector 1000A, size 4, 3-pole front-wheel drive central base unit without handle Flat connection switch disconnectors 3KD up to 1600 A as high-performance main, emergency-OFF or repair switches. 3KD switch disconnectors up to 1600 A from Siemens offer reliable personal protection and guarantee high plant availability in industry, infrastructure and buildings. As main, emergency STOP or repair switches, 3KD switch disconnectors reliably switch electrical equipment under load and offer a safety isolating function and distance in low-voltage circuits. 1. Reliable protection against power surges. 2. Robust technology for high plant availability. 3. Versatile use with variable connection and drive types. 4. Easy to re-install additional functions thanks to extensive accessories 5. Quick mounting on a DIN rail for sizes up to 200 A. 6. Efficient engineering thanks to extensive CAx data. 7. Easy documentation with the manual configurator. 8. Suitable for wind power and solar systems.
