Circuit breakers 3-pin 80 A 3 change-overs 690 V AC Siemens 3KD28340NE400
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
80 A
Contact type
3 change-overs
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 114.99 / piece)
€ 114.99
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 8 kV
- Mechanical life: 15000
- Electrical life: 1500
- Power loss: 3.3 W
- Design of the electrical connection: flat connector
- Size of the switch disconnector: 2
- Mounting type: screw and DIN rail mounting 35 mm
- Product type
Circuit breakers
- Contact type
3 change-overs
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Number of pins
3

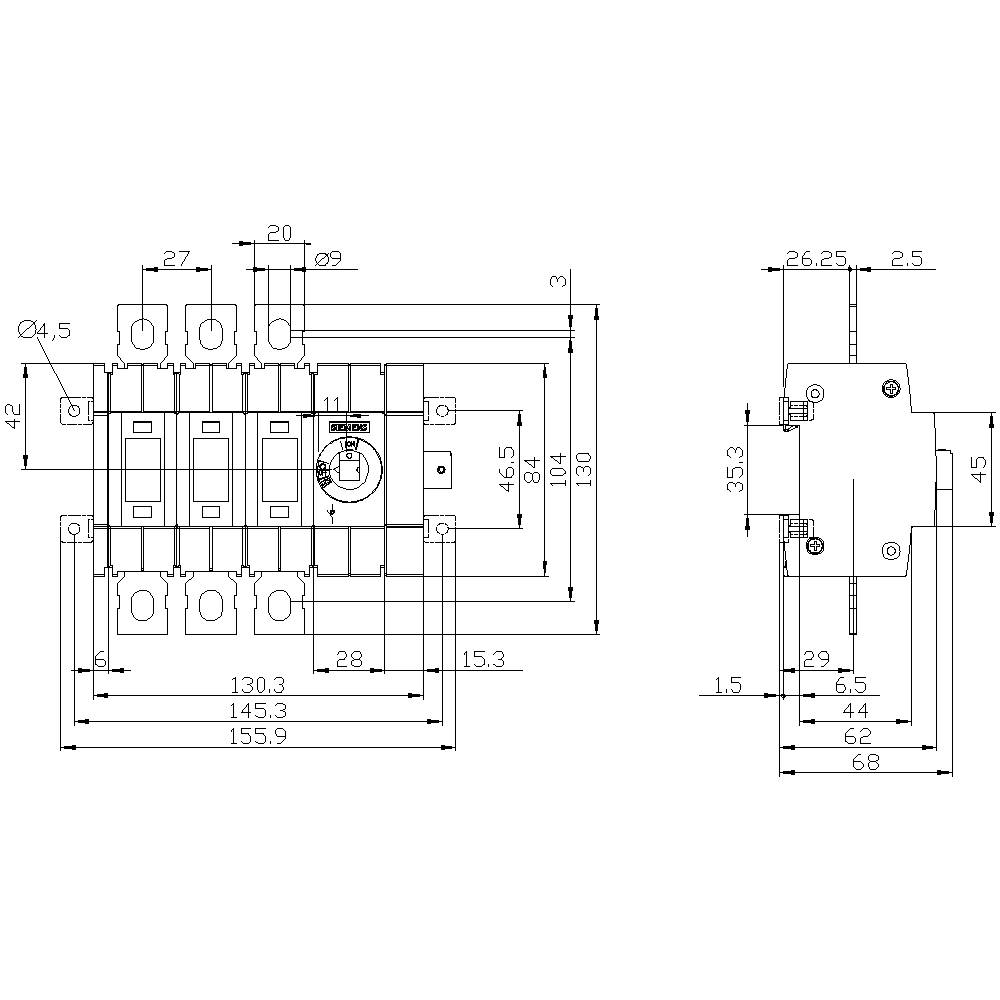

- Dim
(W x H x D) 130.3 x 168 x 69.5 mm
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Type
pressure switch
- Width
130.3 mm
- Height
168 mm
- Depth
69.5 mm
0
0
80 A
3
IP00
3
1
FALSE
FALSE
Flat plug-in connection
TRUE
None
TRUE
TRUE
TRUE
45 kW
4 kA
Other
TRUE
FALSE
FALSE
TRUE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
80 A
37 kW
FALSE
80
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1735752 Circuit breakers 3-pin 80 A 3 change-overs 690 V AC Siemens 3KD28340NE400
User & Safety Instructions
User & Safety Instructions 1735752 Circuit breakers 3-pin 80 A 3 change-overs 690 V AC Siemens 3KD28340NE400
Description
circuit breaker 3VA2 IEC frame 160 breaking capacity class M Icu=55kA @ 415 V 3pole, line protection ETU550, LSI, In=63a overload protection Ir=25A ...63A short circuit protection Isd=0,6..10x In, iI=1,5..12x In neutral protection optional with ext. ct,upto 160% cable connection
