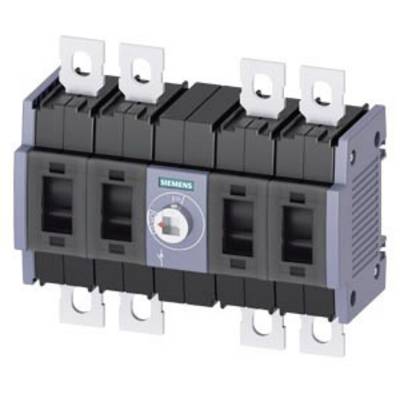

Circuit breakers 4-pin 125 A 4 change-overs 690 V AC Siemens 3KD32400NE200
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
4
Nominal current - rounded value
125 A
Contact type
4 change-overs
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 224.99 / piece)
€ 224.99
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 8 kV
- Mechanical life: 15000
- Electrical life: 1500
- Power loss: 12.8 W
- Design of the electrical connection: flat connector
- Size of the switch disconnector: 2
- Mounting type: screw and DIN rail mounting 35 mm
- Product type
Circuit breakers
- Contact type
4 change-overs
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Number of pins
4
- Dim

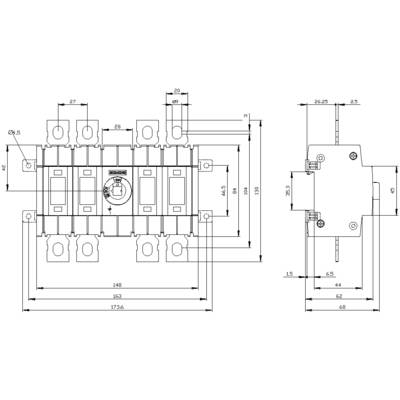

(W x H x D) 148 x 168 x 68 mm
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Type
pressure switch
- Width
148 mm
- Height
168 mm
- Depth
68 mm
0
0
125 A
4
IP00
4
1
FALSE
FALSE
Flat plug-in connection
TRUE
None
TRUE
TRUE
TRUE
55 kW
4 kA
Other
TRUE
FALSE
FALSE
TRUE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
125 A
55 kW
FALSE
125
Other
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1702367 Circuit breakers 4-pin 125 A 4 change-overs 690 V AC Siemens 3KD32400NE200
User & Safety Instructions
User & Safety Instructions 1702367 Circuit breakers 4-pin 125 A 4 change-overs 690 V AC Siemens 3KD32400NE200
Description
Switch disconnector 160 A, Size 2, 4-pole Front operating mechanism center Basic unit without handle flat terminal incl. phase barriers
