Name: Circuit breakers 4-pin 16 mm² 40 A 690 V AC Conductor type = N Siemens 3LD33100TL05
Brand: Siemens
SKU: 1741758
Availability: BackOrder

A three-pole compact load switch in white and black, with a robust housing and rotary handle, suitable for industrial applications.

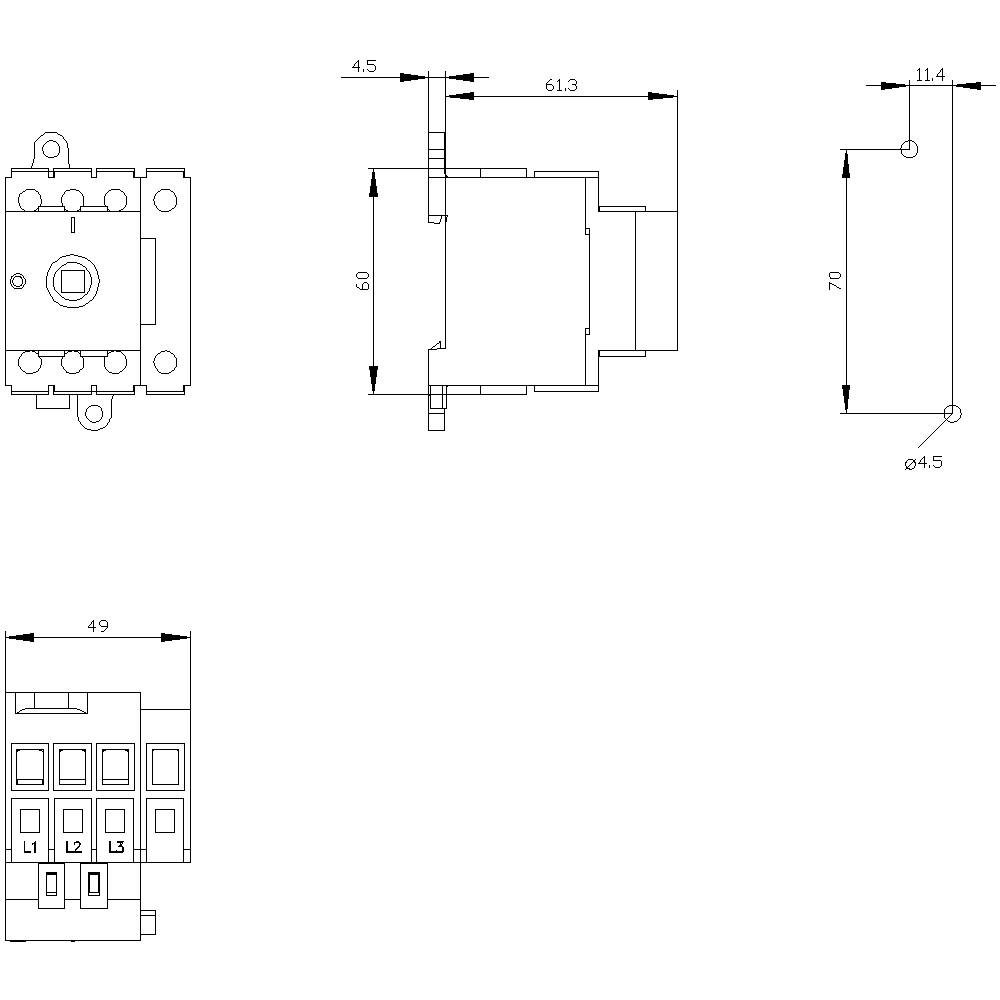

Technical drawing of an electrical switch with dimensions: height 70 mm, width 61.3 mm, depth 49 mm. Top view, side view and front view.

1/2

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

40 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue, 16 Mar 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Power loss: 10 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Cross section: 16 mm²

Number of pins: 4

Dim: (W x H x D) 49 x 60 x 64 mm

Nominal current: 40 A

Nominal current - rounded value: 40 A

Type: pressure switch

Conductor type: N

Width: 49 mm

Height: 60 mm

Depth: 64 mm

: 12 kW

: 0

: 0

: 40 A

: 4

: IP20

: 0

: 1

: TRUE

: Frame clamp

: TRUE

: None

: TRUE

: TRUE

: TRUE

: 19 kW

: 1 kA

: Other

: TRUE

: FALSE

: FALSE

: TRUE

: TRUE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 40 A

: FALSE

: 36

: Other

UKCA: yes
