Circuit breakers 4-pin 80 A 4 change-overs 690 V AC Siemens 3KD28422NE100
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
4
Nominal current - rounded value
80 A
Contact type
4 change-overs
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 209.99 / piece)
€ 209.99
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1000 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 8 kV
- Mechanical life: 15000
- Electrical life: 1500
- Color of the actuator: gray
- Power loss: 4.4 W
- Design of the electrical connection: frame clamp
- Size of the switch disconnector: 2
- Mounting type: screw and DIN rail mounting 35 mm
- Product type
Circuit breakers
- Contact type
4 change-overs
- Operating voltage
690 V AC
- Nominal voltage
690 V AC
- Number of pins
4

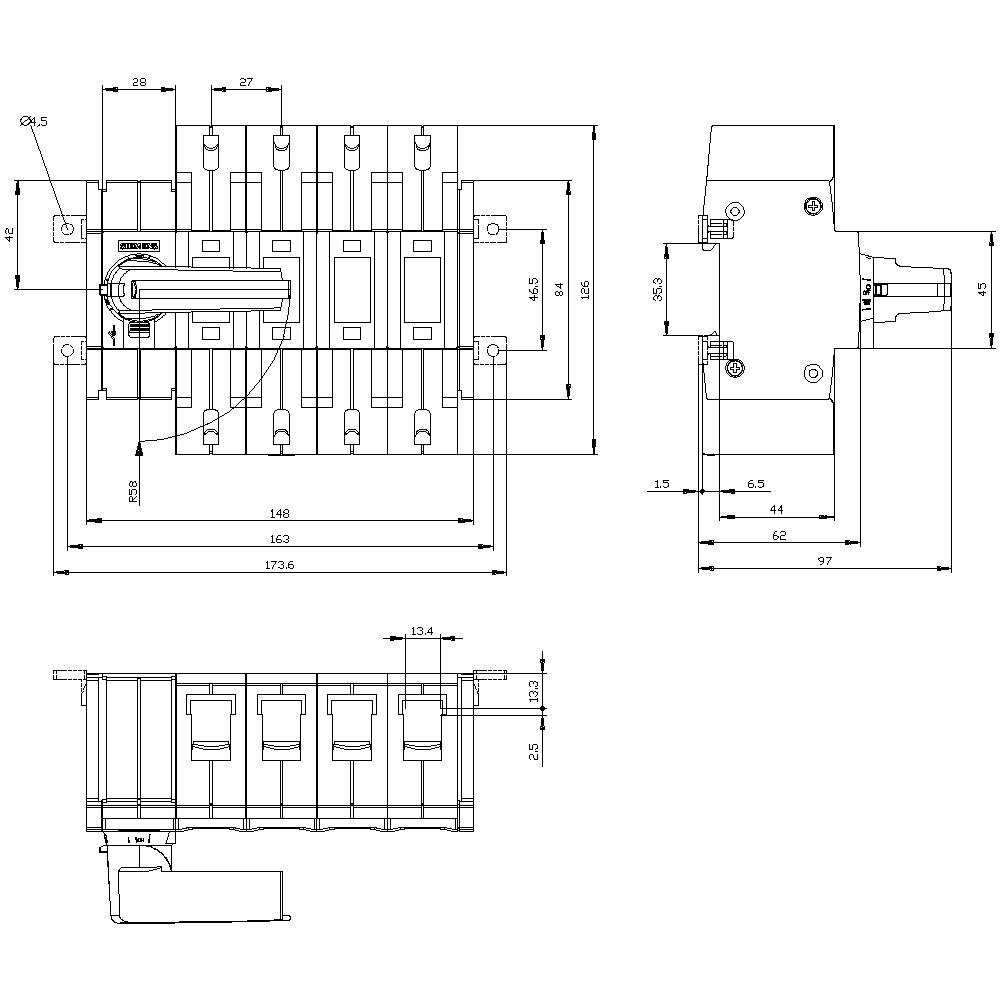

- Dim
(W x H x D) 148 x 126 x 97 mm
- Nominal current
80 A
- Nominal current - rounded value
80 A
- Type
pressure switch
- Width
148 mm
- Height
126 mm
- Depth
97 mm
0
0
80 A
4
IP20
4
1
TRUE
FALSE
Frame clamp
FALSE
Long turning handle
TRUE
TRUE
TRUE
45 kW
4 kA
Grey
TRUE
FALSE
FALSE
TRUE
TRUE
1000 V
FALSE
FALSE
Built-in device fixed built-in technique
80 A
37 kW
FALSE
80
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1735758 Circuit breakers 4-pin 80 A 4 change-overs 690 V AC Siemens 3KD28422NE100
User & Safety Instructions
User & Safety Instructions 1735758 Circuit breakers 4-pin 80 A 4 change-overs 690 V AC Siemens 3KD28422NE100
Description
Switch disconnector 100 A, Size 2, 4-pole Front operating mechanism left Complete unit with direct operating mechanism gray flat terminal incl. phase barriers
