Name: Circuit breakers 500 A 6 makers, 4 breakers, 2 breakers Siemens 3KD44340PE100
Brand: Siemens
SKU: 2263594

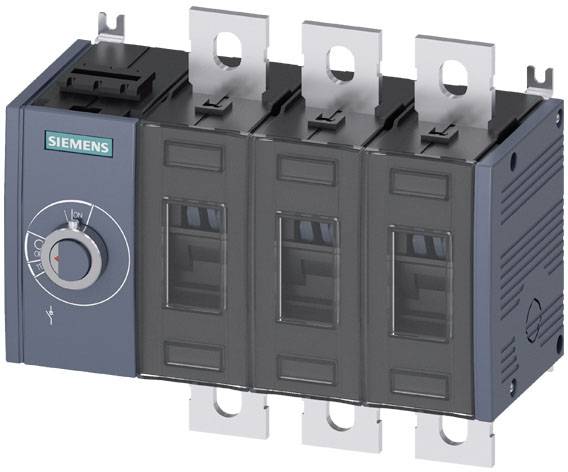

'Siemens' switch module with three switching elements and rotary knob on the left, metal contacts visible at the top and bottom.

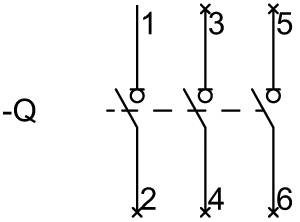

'Q' as an entry point with a sequential path through connections 1 to 6 shown. Arrows indicate the direction of flow.

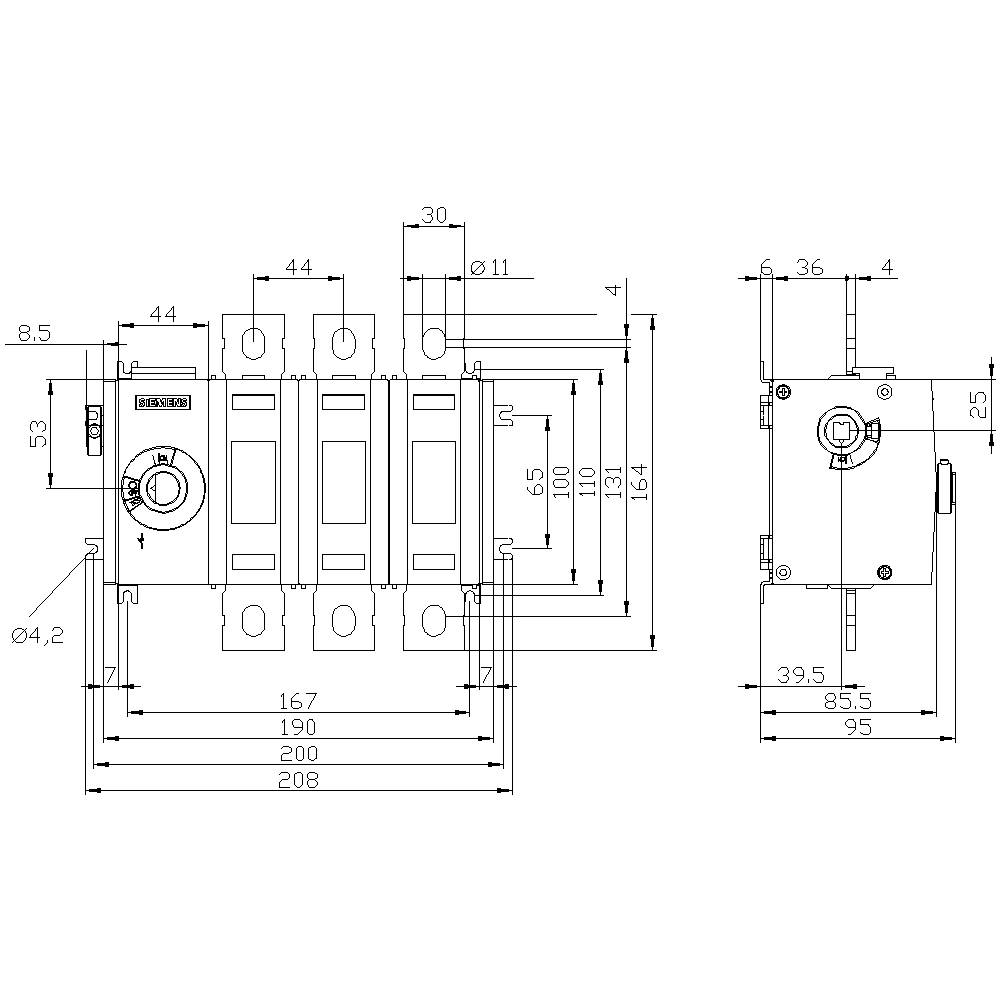

Technical drawing of a switch with dimensions in millimetres. Shows front and side view with detailed measurements.

1/3

Image similar

Product type

Circuit breakers

Number of pins

Nominal current - rounded value

500 A

Contact type

6 makers

4 breakers

2 breakers

Operating voltage

1000 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Display type / for switch position indicator Door clutch rotary operating mechanism: ON-OFF
Type of electrical connection for main circuit: Flat connection
Size of the circuit breaker: 3
Fastening method: Screw fixing
Floor mounting: Yes
Insulation voltage 1000 V.
IP00 protection
Ambient temperature during operation: -25 °C - +70 °C.
Power loss max. 51.6 W
Mechanical life (operations) / typical: 15000
Surge voltage resistance: 12 kV

Product type: Circuit breakers

Contact type: 6 makers
4 breakers
2 breakers

Operating voltage: 1000 V AC

Number of pins: 3

Dim: (W x H x D) 198.5 x 164 x 95 mm

Nominal current: 500 A

Nominal current - rounded value: 500 A

Type: Side wall drive

Width: 198.5 mm

Height: 164 mm

Depth: 95 mm

: 6

: 6

: 400 A

: 3

: IP00

: 0

: 1

: FALSE

: FALSE

: Flat plug-in connection

: TRUE

: None

: TRUE

: TRUE

: TRUE

: 200 kW

: 13 kA

: Other

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: 1000 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 500 A

: 220 kW

: FALSE

: 400

: Other

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2263594 Circuit breakers 500 A 6 makers, 4 breakers, 2 breakers Siemens 3KD44340PE100

User & Safety Instructions

User & Safety Instructions 2263594 Circuit breakers 500 A 6 makers, 4 breakers, 2 breakers Siemens 3KD44340PE100

Description

Circuit-breakers 500A, size 3, 3-pole side drive left basic unit without handle Flat connection switch disconnectors 3KD up to 1600 A as high-performance main, emergency-OFF or repair switches. 3KD switch disconnectors up to 1600 A from Siemens offer reliable personal protection and guarantee high plant availability in industry, infrastructure and buildings. As main, emergency STOP or repair switches, 3KD switch disconnectors reliably switch electrical equipment under load and offer a safety isolating function and distance in low-voltage circuits. 1. Reliable protection against power surges. 2. Robust technology for high plant availability. 3. Versatile use with variable connection and drive types. 4. Easy to re-install additional functions thanks to extensive accessories 5. Quick mounting on a DIN rail for sizes up to 200 A. 6. Efficient engineering thanks to extensive CAx data. 7. Easy documentation with the manual configurator. 8. Suitable for wind power and solar systems.

This text is machine translated.
