Name: Circuit breakers 6-pin 100 A 4 change-overs 1200 V Siemens 3KD30600NE200
Brand: Siemens
SKU: 1741386
Availability: BackOrder

An electrical switchboard with multiple switches and connections, suitable for industrial applications of electrical control.

'Circuit diagram of an electrical circuit with twelve numbered points. Point 1 is crossed out in red and marked with a red X.'

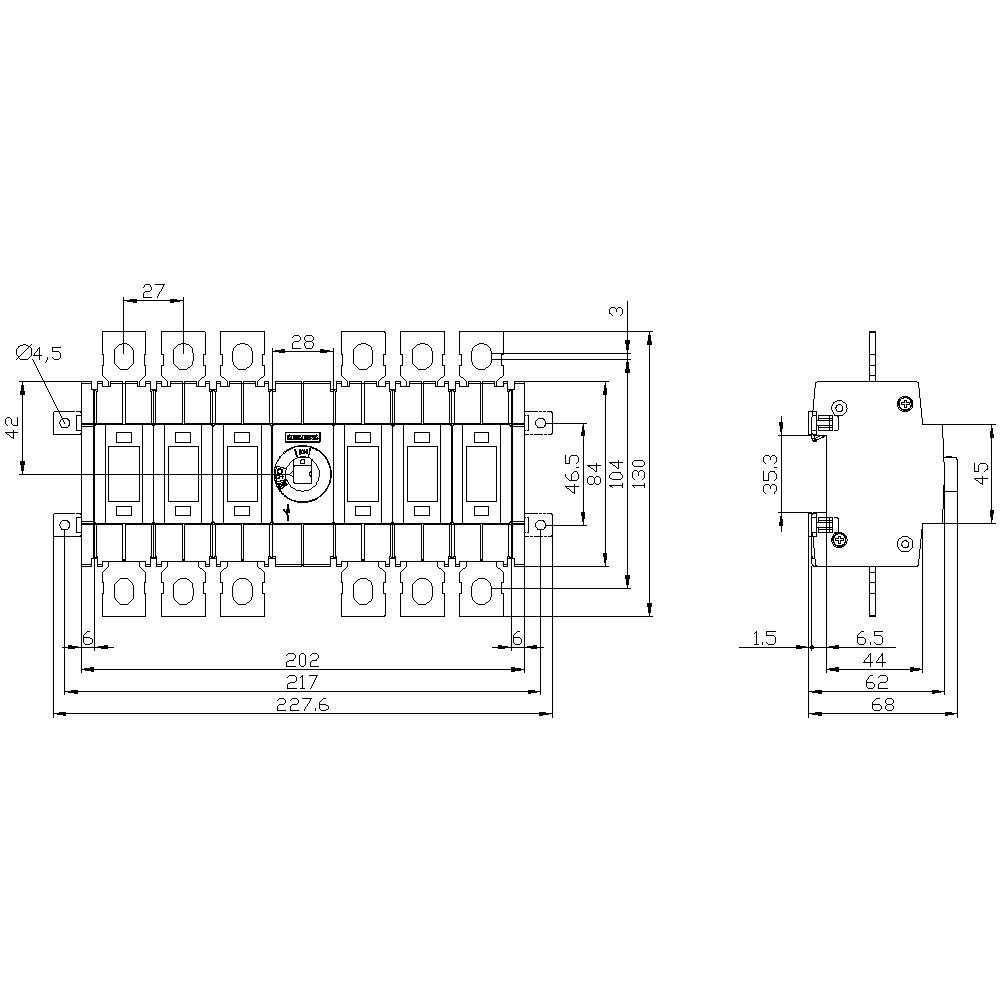

Technical drawing of an electrical switch, showing the dimensions and placement of terminal connections in millimetres.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

1200 V

Number of pins

Nominal current - rounded value

100 A

Contact type

4 change-overs

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 18 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 625.00 / piece)

€ 625.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Isolation voltage: 1250 V
Ambient temperature: -25 °C to +70 °C
Surge voltage resistance: 8 kV
Mechanical life: 15000
Electrical life: 1500
Power loss: 10.8 W
Design of the electrical connection: flat connector
Size of the switch disconnector: 2
Mounting type: screw and DIN rail mounting 35 mm

Product type: Circuit breakers

Contact type: 4 change-overs

Operating voltage: 1200 V

Nominal voltage: 1200 V

Number of pins: 6

Dim: (W x H x D) 202 x 168 x 68 mm

Nominal current: 100 A

Nominal current - rounded value: 100 A

Type: DC switch

Width: 202 mm

Height: 168 mm

Depth: 68 mm

: 0

: 0

: 100 A

: 6

: IP00

: 4

: 1

: FALSE

: FALSE

: Flat plug-in connection

: TRUE

: None

: TRUE

: TRUE

: TRUE

: Other

: TRUE

: FALSE

: FALSE

: TRUE

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

: FALSE

: Other

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Contact type

Nominal current - rounded value

Product type

Auxiliary switch 5 A 1 change-over Siemens 3KD91031

Item no:1704708

Dispatches on Thu 5 Nov

Conrad Electronic

1 change-over

5 A

Auxiliary switch

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Circuit breakers 3-pin 100 A 3 change-overs 690 V AC Siemens 3KD30340NE100

Item no:1735767

Dispatches on Wed 18 Nov

Conrad Electronic

3 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Circuit breakers 3-pin 100 A 3 change-overs 690 V AC Siemens 3KD30340NE400

Item no:1735768

Dispatches on Wed 18 Nov

Conrad Electronic

3 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Circuit breakers 3-pin 100 A 3 change-overs 690 V AC Siemens 3KD30342NE100

Item no:1735769

Dispatches on Fri 6 Nov

Conrad Electronic

3 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Circuit breakers 3-pin 100 A 3 change-overs 690 V AC Siemens 3KD30342NE400

Item no:1751265

Dispatches on Fri 6 Nov

Conrad Electronic

3 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Circuit breakers 3-pin 100 A 4 change-overs 690 V AC Siemens 3KD30300NE100

Item no:1748631

Dispatches on Thu 5 Nov

Conrad Electronic

4 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Circuit breakers 3-pin 100 A 4 change-overs 690 V AC Siemens 3KD30300NE200

Item no:1735763

Dispatches on Fri 6 Nov

Conrad Electronic

4 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Circuit breakers 3-pin 100 A 4 change-overs 690 V AC Siemens 3KD30302NE100

Item no:1735764

Dispatches on Fri 6 Nov

Conrad Electronic

4 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Circuit breakers 3-pin 100 A 4 change-overs 690 V AC Siemens 3KD30302NE200

Item no:1735765

Dispatches on Fri 6 Nov

Conrad Electronic

4 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Circuit breakers 3-pin 100 A 4 change-overs 690 V AC Siemens 3KD30320NE100

Item no:1702364

Dispatches on Fri 6 Nov

Conrad Electronic

4 change-overs

100 A

Circuit breakers

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

Documents & Downloads

Datasheet

Datasheet 1741386 Circuit breakers 6-pin 100 A 4 change-overs 1200 V Siemens 3KD30600NE200

User & Safety Instructions

User & Safety Instructions 1741386 Circuit breakers 6-pin 100 A 4 change-overs 1200 V Siemens 3KD30600NE200

Description

circuit breaker 3VA2 IEC frame 250 breaking capacity class L Icu=150kA @ 415 V 3-pole, line protection ETU320, li, In=250A overload protection Ir=100A ...250A short circuit protection iI=1,5... 10 x In busbar connection Undervoltage release (UVR) 24 V DC 2 auxiliary switch HQ 1 trip alarm switch HQ
