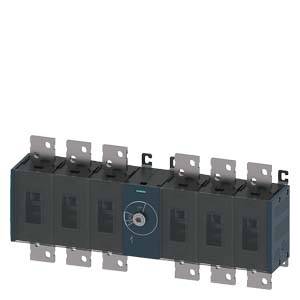

Circuit breakers 6-pin 1000 A 8 makers, 8 breakers 1200 V Siemens 3KD50600RE200
Product type
Circuit breakers
Nominal voltage
1200 V
Number of pins
6
Nominal current - rounded value
1000 A
Contact type
8 makers
8 breakers
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,825.00 / piece)
€ 2,825.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1250 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 12 kV
- Mechanical life: 6000
- Electrical life: 100
- Power loss: 120 W
- Design of the electrical connection: flat connector
- Size of the switch disconnector: 5
- Mounting type: screw fastening
- Product type
Circuit breakers
- Contact type
8 makers
8 breakers
- Operating voltage
1200 V
- Nominal voltage
1200 V
- Number of pins
6

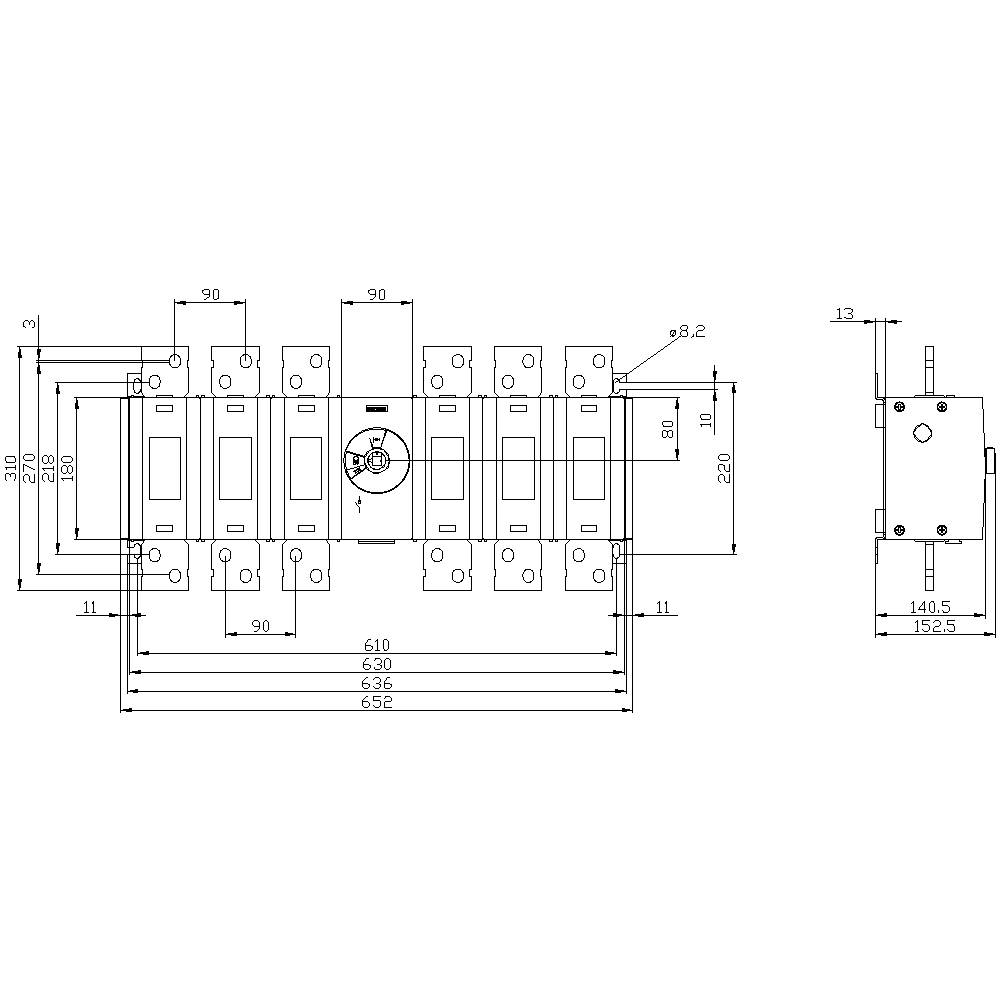

- Dim
(W x H x D) 652 x 310 x 152.5 mm
- Nominal current
1000 A
- Nominal current - rounded value
1000 A
- Type
DC switch
- Width
652 mm
- Height
310 mm
- Depth
152.5 mm
8
8
1000 A
6
IP00
0
1
FALSE
FALSE
Flat plug-in connection
TRUE
None
TRUE
TRUE
TRUE
Other
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742333 Circuit breakers 6-pin 1000 A 8 makers, 8 breakers 1200 V Siemens 3KD50600RE200
User & Safety Instructions
User & Safety Instructions 1742333 Circuit breakers 6-pin 1000 A 8 makers, 8 breakers 1200 V Siemens 3KD50600RE200
Description
Switch disconnector 80 A, Size 2, 4-pole Lateral operating mechanism left Basic unit without handle Box terminal
