Circuit breakers 6-pin 160 A 4 change-overs 1200 V Siemens 3KD34600NE200
Product type
Circuit breakers
Nominal voltage
1200 V
Number of pins
6
Nominal current - rounded value
160 A
Contact type
4 change-overs
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 765.00 / piece)
€ 765.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1250 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 8 kV
- Mechanical life: 15000
- Electrical life: 1500
- Power loss: 27.6 W
- Design of the electrical connection: flat connector
- Size of the switch disconnector: 2
- Mounting type: screw and DIN rail mounting 35 mm
- Product type
Circuit breakers
- Contact type
4 change-overs
- Operating voltage
1200 V
- Nominal voltage
1200 V
- Number of pins
6
- Dim

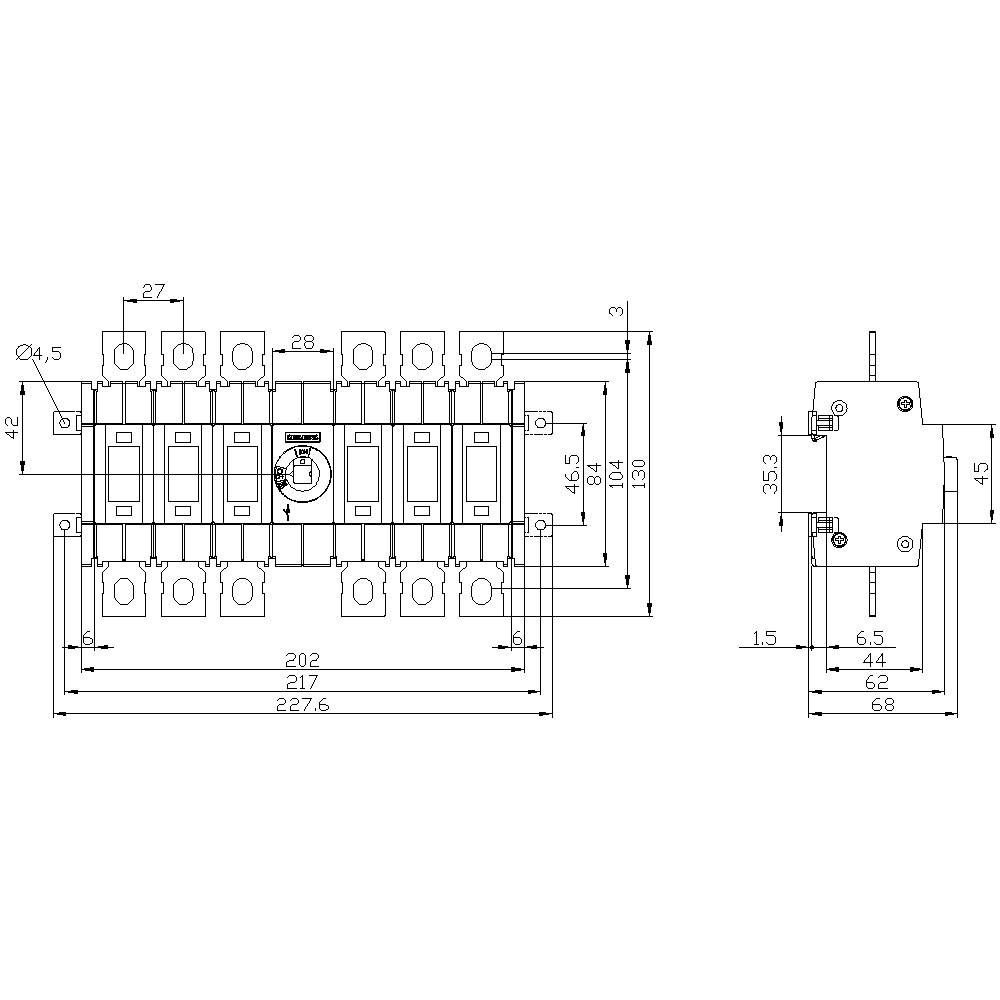

(W x H x D) 202 x 168 x 68 mm
- Nominal current
160 A
- Nominal current - rounded value
160 A
- Type
DC switch
- Width
202 mm
- Height
168 mm
- Depth
68 mm
0
0
160 A
6
IP00
4
1
FALSE
FALSE
Flat plug-in connection
TRUE
None
TRUE
TRUE
TRUE
Other
TRUE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742063 Circuit breakers 6-pin 160 A 4 change-overs 1200 V Siemens 3KD34600NE200
User & Safety Instructions
User & Safety Instructions 1742063 Circuit breakers 6-pin 160 A 4 change-overs 1200 V Siemens 3KD34600NE200
Description

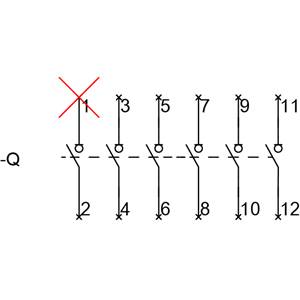

Switch disconnector 160 A, Size 2, 6-pole DC Front operating mechanism center Basic unit without handle flat terminal incl. phase barriers
