Circuit breakers 6-pin 250 A 1200 V Siemens 3KD38600PE200
Product type
Circuit breakers
Nominal voltage
1200 V
Number of pins
6
Nominal current - rounded value
250 A
Operating voltage
1200 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,029.00 / piece)
€ 1,029.00
incl. VAT
14-day return policy included
Technical specifications
- Protection class: IP20
- Isolation voltage: 1250 V
- Ambient temperature: -25 °C to +70 °C
- Surge voltage resistance: 12 kV
- Mechanical life: 10000
- Electrical life: 200
- Power loss: 36 W
- Design of the electrical connection: flat connector
- Size of the switch disconnector: 3
- Mounting type: screw fastening
- Product type
Circuit breakers
- Operating voltage
1200 V
- Nominal voltage
1200 V
- Number of pins
6

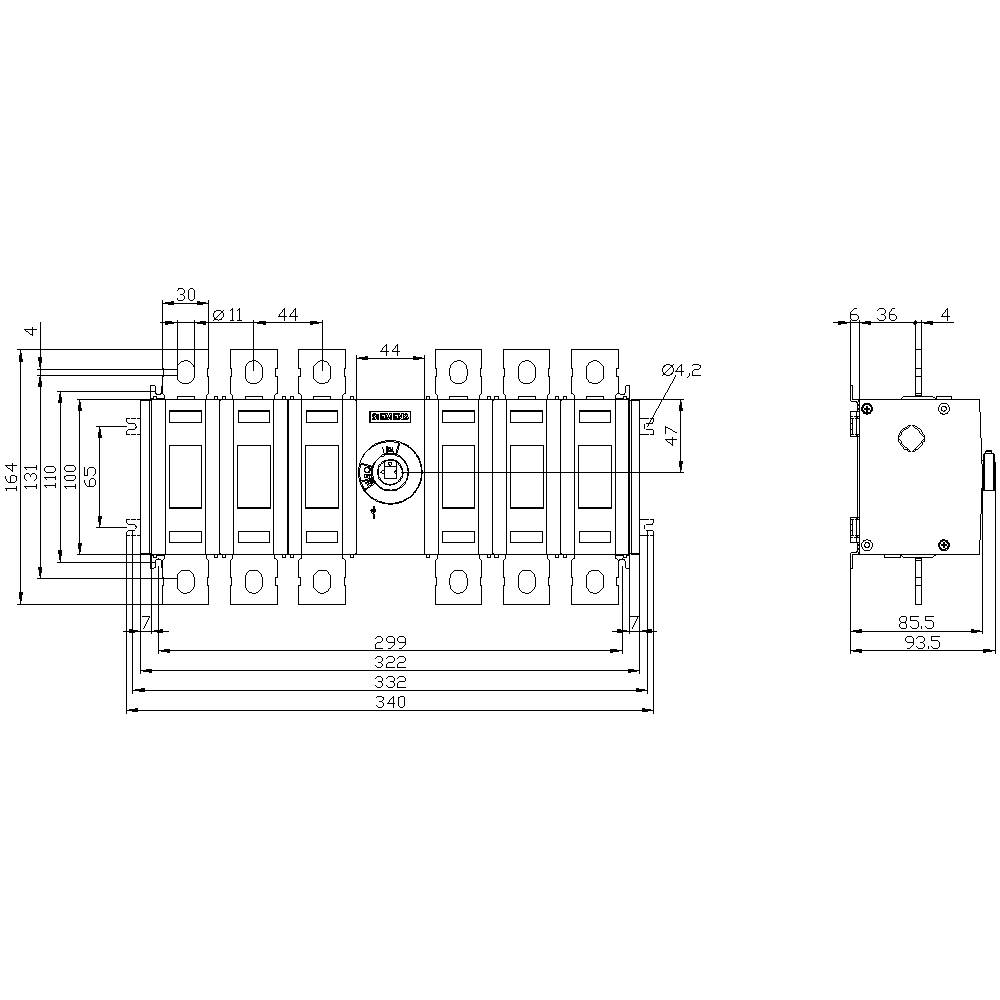

- Dim
(W x H x D) 322 x 164 x 93.5 mm
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Type
DC switch
- Width
322 mm
- Height
164 mm
- Depth
93.5 mm
6
6
250 A
6
IP00
0
1
FALSE
FALSE
Flat plug-in connection
TRUE
None
TRUE
TRUE
TRUE
Other
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
Built-in device fixed built-in technique
FALSE
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1742090 Circuit breakers 6-pin 250 A 1200 V Siemens 3KD38600PE200
User & Safety Instructions
User & Safety Instructions 1742090 Circuit breakers 6-pin 250 A 1200 V Siemens 3KD38600PE200
Description
Switch disconnector 160 A, Size 2, 6-pole DC Front operating mechanism center Basic unit without handle Box terminal
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
