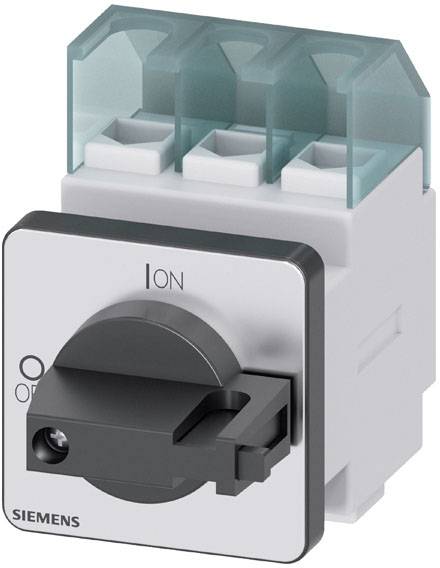

Circuit breakers Black 16 mm² 25 A Siemens 3LD21220TK11
Product type
Circuit breakers
Number of pins
3
Nominal current - rounded value
25 A
Operating voltage
690 V AC
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of switches: 1
- Execution of the display / for switching position display Manual mode: 1 ON - 0 OFF
- Actuator type: Knob
- Type of electrical connection / for main circuit: Frame terminal
- Design of the electrical connection / for auxiliary contacts: Connection terminals
- Handle design: T-handle drive, black
- Design of the device: Fixed installation
- Mounting type: Built-in device Fixed installation technology
- Mounting type / front mounting with 4-hole mounting: Yes
- Mounting type / rail mounting: Yes
- Type of switch: Floor mounting with door coupling
- Operating frequency 50 -60 Hz
- Suitable for use / main switch: Yes
- Suitability for use / switch disconnectors: Yes
- Suitability for use / safety switch: Yes
- Suitability for use / maintenance/repair switch: Yes
- Electrical life (operations) / at AC-23 A / at 690 V: 6000
- Mechanical life (operations) / typical: 100000
- Insulation voltage 690 V.
- Net weight 186 g
- Product equipment / locking: Yes
- Product extension / auxiliary switch: Yes
- Protection class IP / front side: IP65
- Ambient temperature during operation: -25 °C - +55 °C.
- Maximum power loss: 3.3 W.
- Pollution level 3
- Number of U-locks / maximum: 2
- Operating power / at AC-23 A / at 400 V: 9.5 kW
- Operating power / at AC-3 / at 690 V: 7.5 kW
- Shackle thickness / of the U-locks / maximum: 6 mm
- Continuous current / upstream fuse / according to UL: 50 A.
- Continuous current / of auxiliary contact: 10 A.
- Product function / lockable in OFF position: Yes
- Switching frequency / maximum [1/h]: 50
- Power loss per conductor / typical: 1.1 W.
- Product type
Circuit breakers
- Operating voltage
690 V AC
- Factory colour
Black
- Cross section
16 mm²
- Number of pins
3

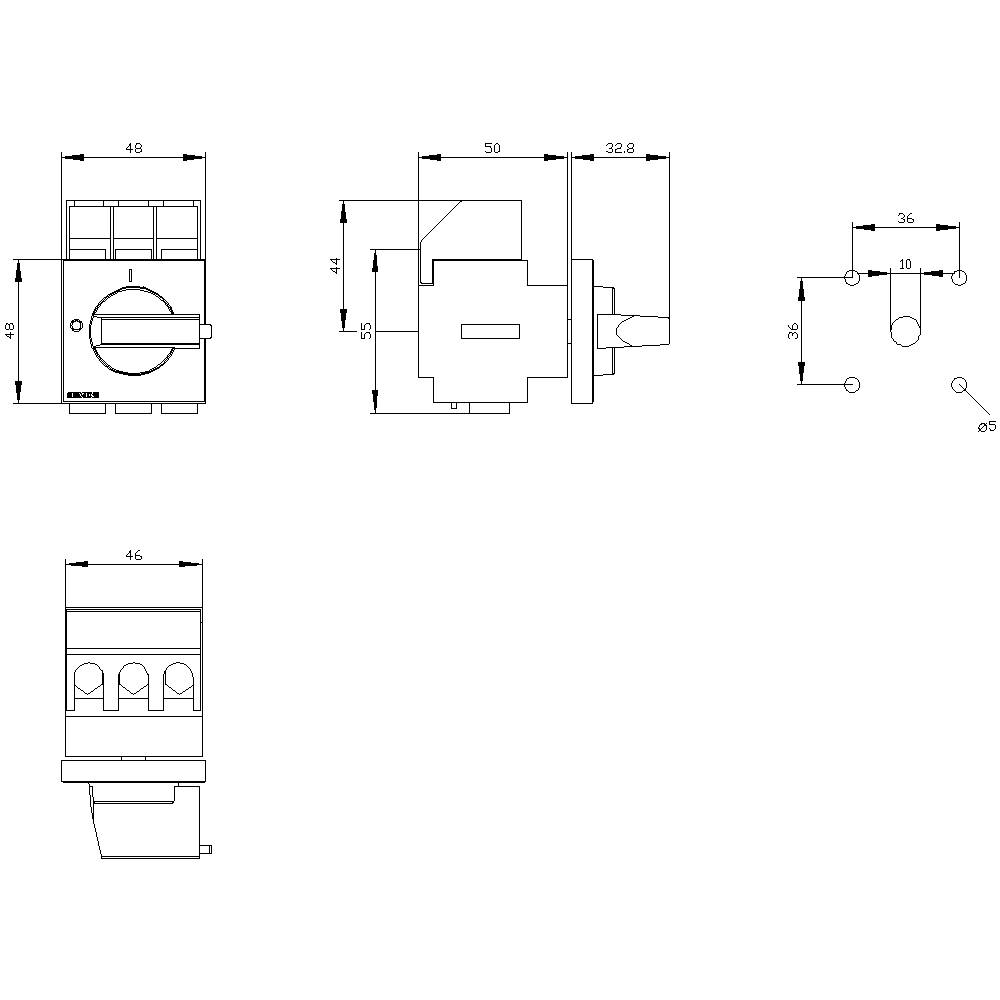

- Dim
(W x H x D) 49 x 71 x 85.5 mm
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Type
Main switch
- LED colour
Black
- Width
49 mm
- Height
71 mm
- Depth
85.5 mm
8 kW
0
0
25 A
3
IP65
0
1
TRUE
FALSE
Frame clamp
FALSE
Toggle
TRUE
TRUE
TRUE
10 kW
0.64 kA
Black
TRUE
TRUE
FALSE
TRUE
TRUE
690 V
FALSE
FALSE
Built-in device fixed built-in technique
25 A
FALSE
20
Other
- UKCA
yes

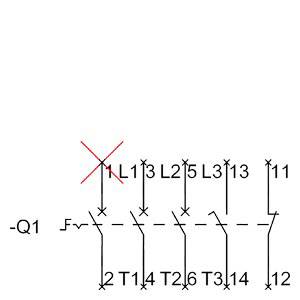

Documents & Downloads
Datasheet
Datasheet 2263622 Circuit breakers Black 16 mm² 25 A Siemens 3LD21220TK11
User & Safety Instructions
User & Safety Instructions 2263622 Circuit breakers Black 16 mm² 25 A Siemens 3LD21220TK11
Description
SENTRON, 3LD switch disconnectors, main switch, 3-pole, IU:25 A, Operating power / with AC-23 A at 400V: 9.5 kW, front-mounted, knob drive, black, 4-hole handling attachment SENTRON 3LD2 main and emergency STOP switch for safe switching off of loads in many areas, e.g. for three-phase motors, air conditioning and ventilation systems, in machine and conveyor engineering machines, in the chemical or food and beverage industries.
Modular design, quick and easy fitting of auxiliary switches, N-PE terminal or 4. Pin Optimum mains separation from 16 A to 250 A by lockable the rotary drive. Protection class up to IP 65 with enclosed housing for outdoor applications. Versatile and worldwide usage thanks to international IEC, UL, CCC and shipbuilding approvals.
The 3LD main and emergency-OFF switches are available in a wide range of versions for front mounting, mounting plate, DIN rail or distributor installation, optionally with direct or door coupling rotary drive. With 3LD2, variants for DC applications are also available.
3LD main and emergency-OFF switch - consistent safety for users and systems.
This text is machine translated.
Modular design, quick and easy fitting of auxiliary switches, N-PE terminal or 4. Pin Optimum mains separation from 16 A to 250 A by lockable the rotary drive. Protection class up to IP 65 with enclosed housing for outdoor applications. Versatile and worldwide usage thanks to international IEC, UL, CCC and shipbuilding approvals.
The 3LD main and emergency-OFF switches are available in a wide range of versions for front mounting, mounting plate, DIN rail or distributor installation, optionally with direct or door coupling rotary drive. With 3LD2, variants for DC applications are also available.
3LD main and emergency-OFF switch - consistent safety for users and systems.
This text is machine translated.
